Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TGMT20WR
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Voltage: 125V
Color: White
Current: 20A
Model No.: TGMT20WR
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
MOQ: 500pcs
Package: Carton
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|

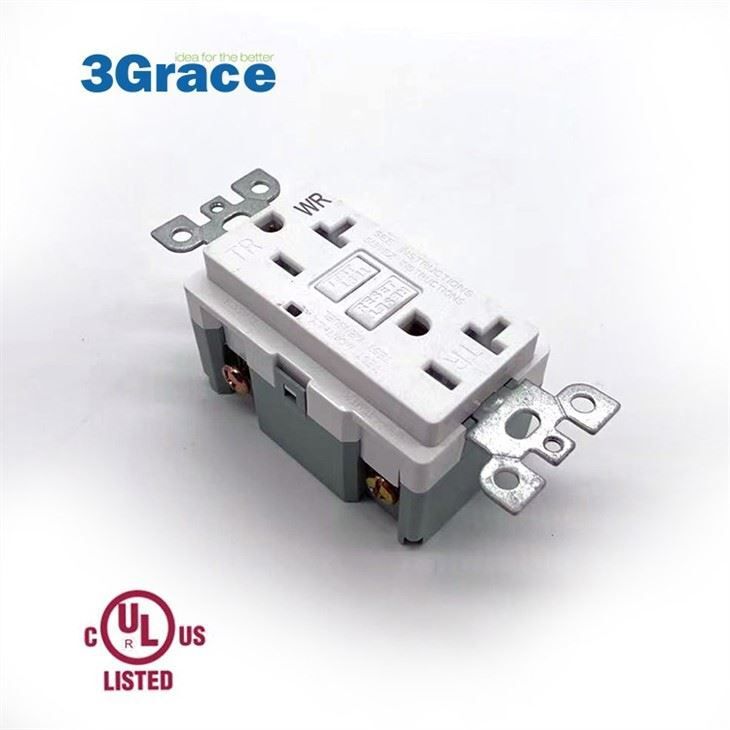

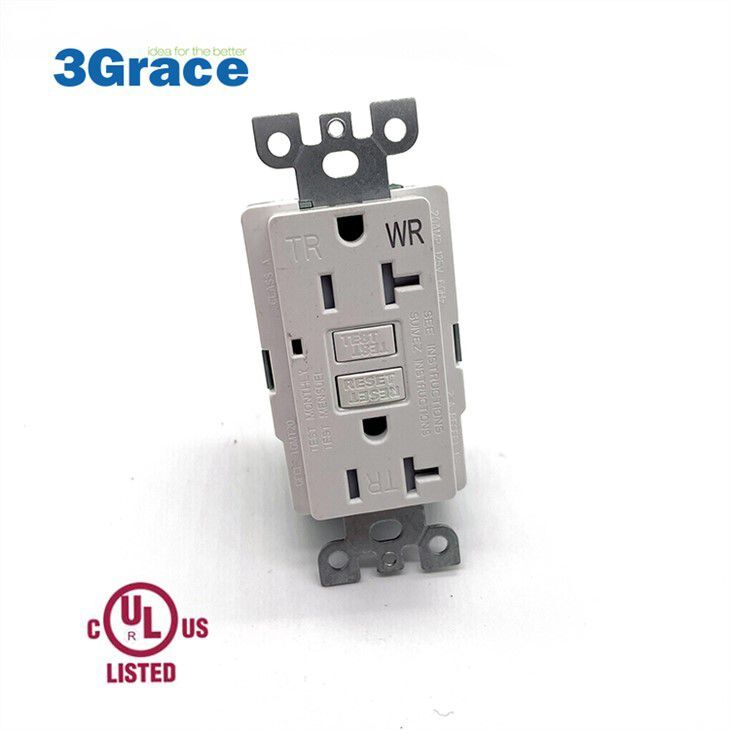

3Grace 125V 20Amp Gfi Electrical Outlet suitable for South America market
Features:
Advantages:
1. Original factory in Zhejiang, China
2. With TR onthe face cover, Safety for Children
3. Suiteable for South America household appliances.
4. Easy to installing and wiring
Specifications
| Model No. | TGMT20WR |
| Input Voltage | 125 V |
| Frequency | 60 Hz |
| Front Receptacle Current | 20 Amp |
| Frequency | 60 Hz |
| Front Receptacle Current | 20 Amp |
|
| 20 Amp |
| Trip Fault Current | 4-6 mA |
| Trip Time | 0.025 Seconds |
| Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
| Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
| Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
| Accepted Terminal Wire Size | 12 gauge to 14 gauge |
| Wiring Type | Rear pressure plate and side wiring |
| Flammability | Rated V-2 per UL 943 |
| Operating Temperature | -35℃ to 66℃ |
| Operating Humidity | 30-93% |
Packing
