Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |

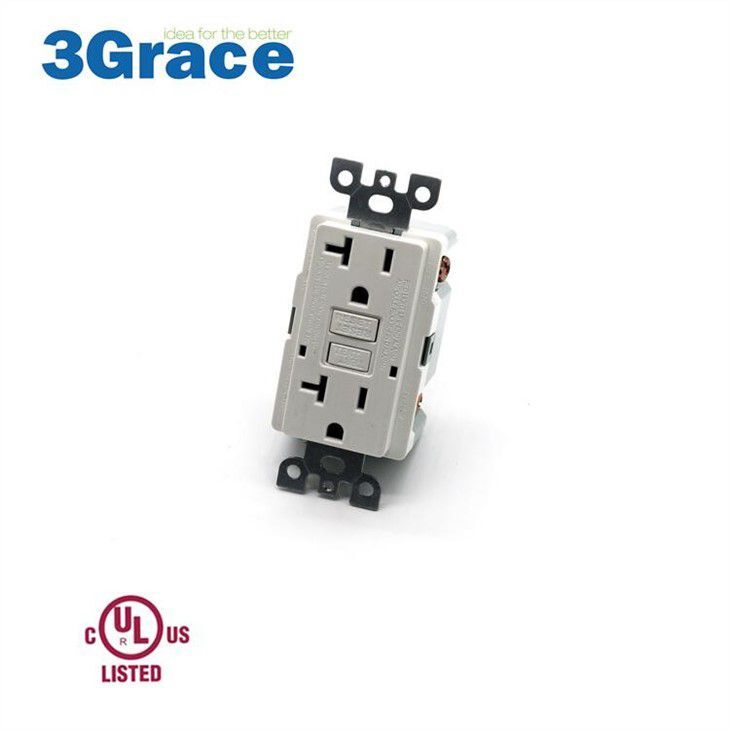

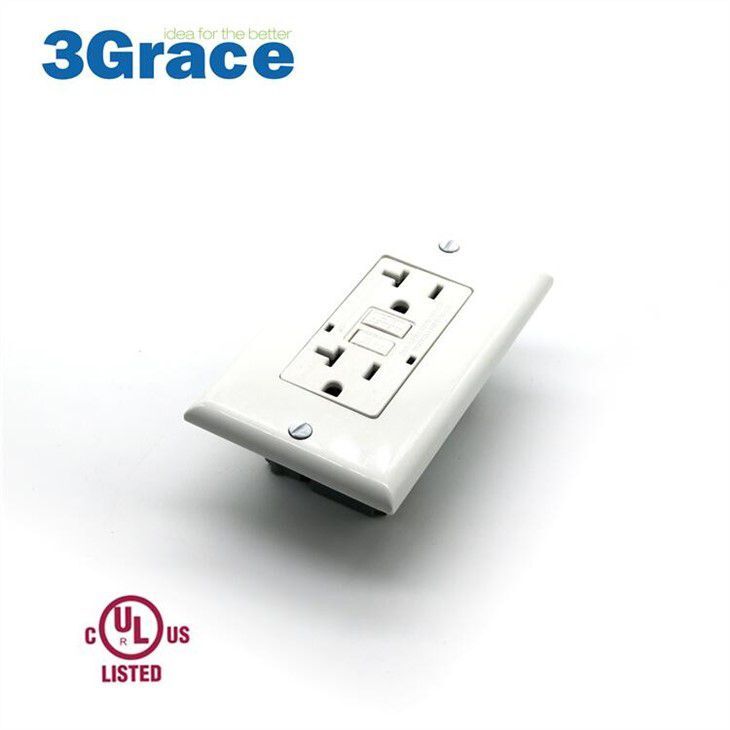

Model No.: TS20
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Input Voltage: 125V
Frequency: 60Hz
GFCI size: 105*44.6*42.6mm
Weight: 123.5g
Color: White
Accepted Terminal Wire Size: 12 gauge to 14 gauge

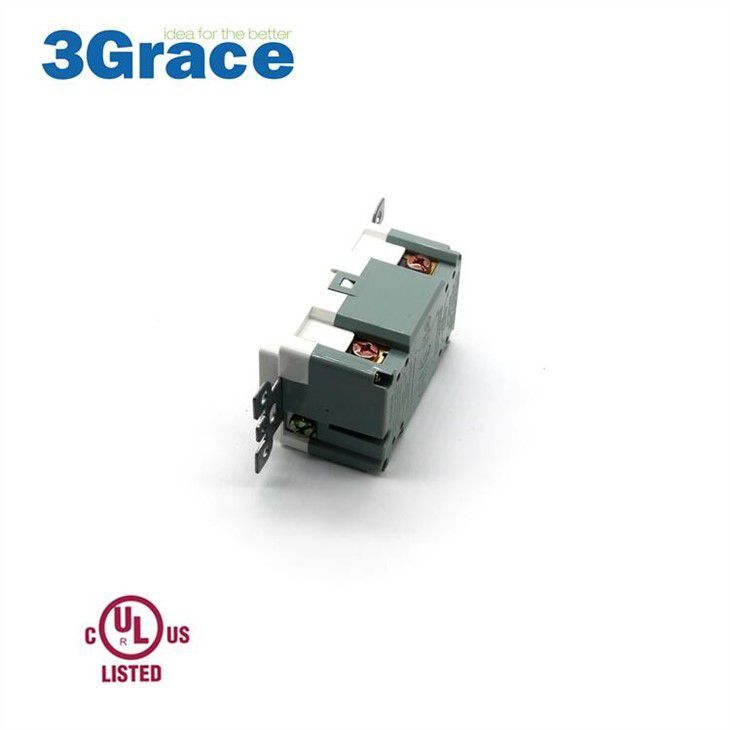

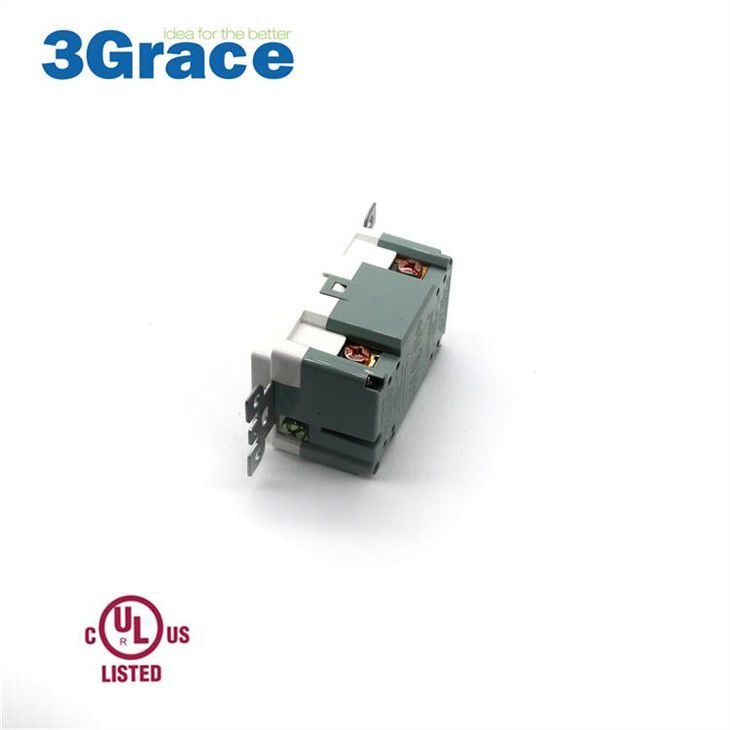

Wiring Type: Rear pressure plate and side wiring
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Auto-trip Function to guarantee the safety of the receptacle
Installation can be easily operated in accordance with instruction manual
If the wiring is not correct, there will be no output of receptacle to guarantee the safety
Solid performance
Manufactured with the highest grade PC materials; durable impact-resistant thermoplastic face and back body is virtually unbreakable.
Specifications:
Input Voltage | 125 V |
Frequency | 60 Hz |
Front Receptacle AMPER | 20Amp |
Output Current | 20 Amp |
Trip Fault Current Amper | 4-6 mA |
Trip Time | 25ms |
Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
UL 943 (Meet 2015 requirements) | Class A GFCI |
Accepted Terminal Wire Size | 12 gauge to 14 gauge |
Wiring Type | Rear pressure plate and side wiring |
Flammability | Rated V-2 per UL 943 |
Operating Temperature | -35℃ to 66℃ |
Operating Humidity | 30-93% |
Installed Location:
Warranty: 12Months After the Delivery
