Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Input Voltage: 125V
Frequency: 60Hz
GFI SIZE: 105*44.6*42.6mm
GFI Weight: 123.5g
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
Color: White
Material: PC+cooper
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|

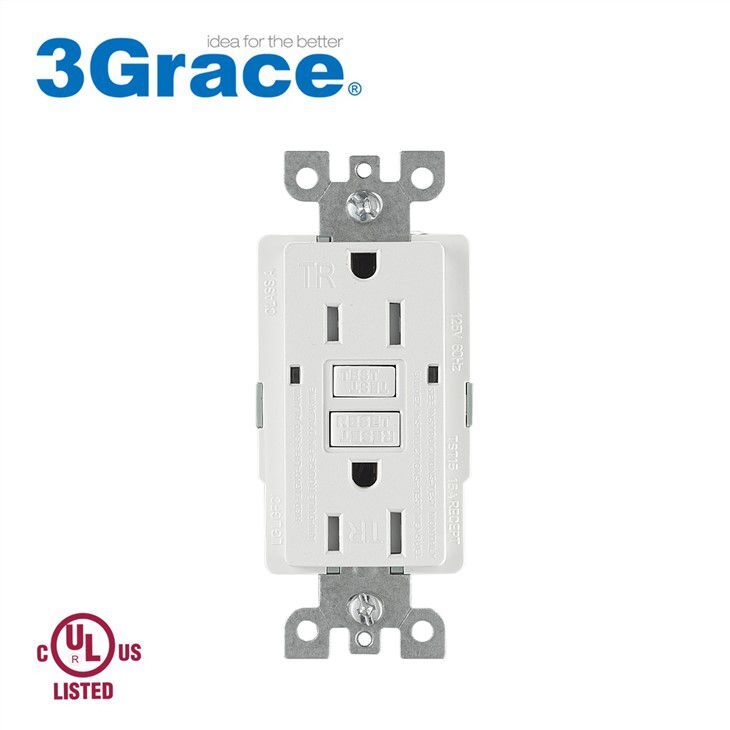

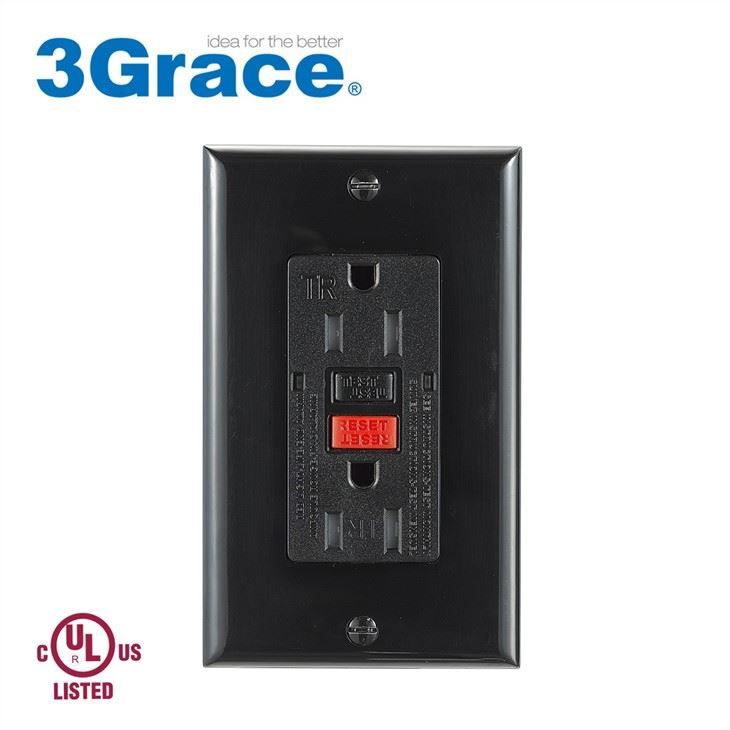

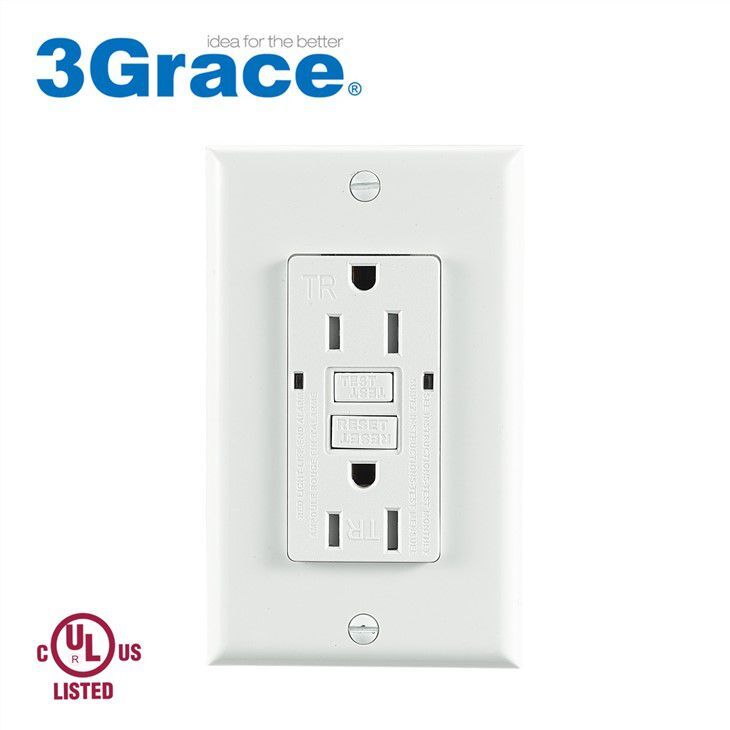

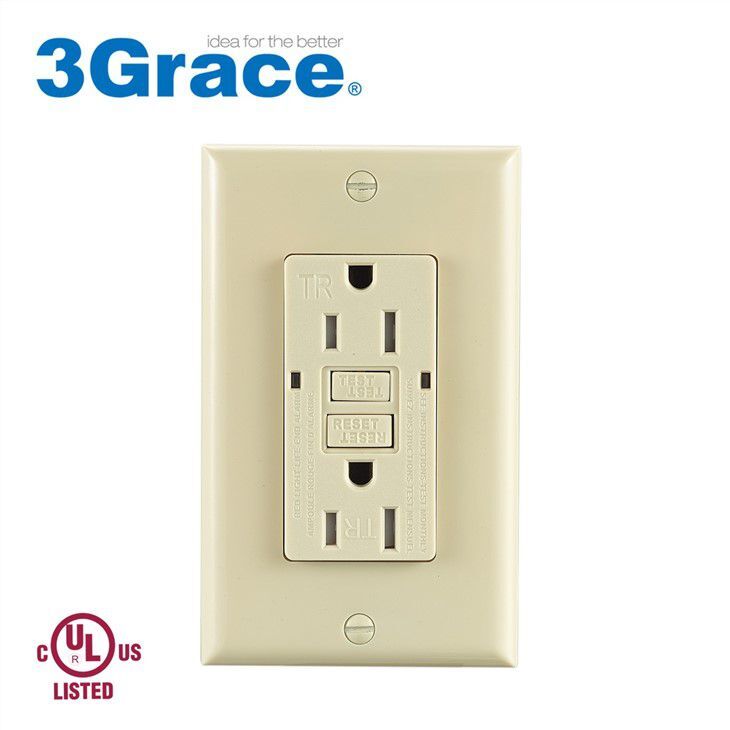

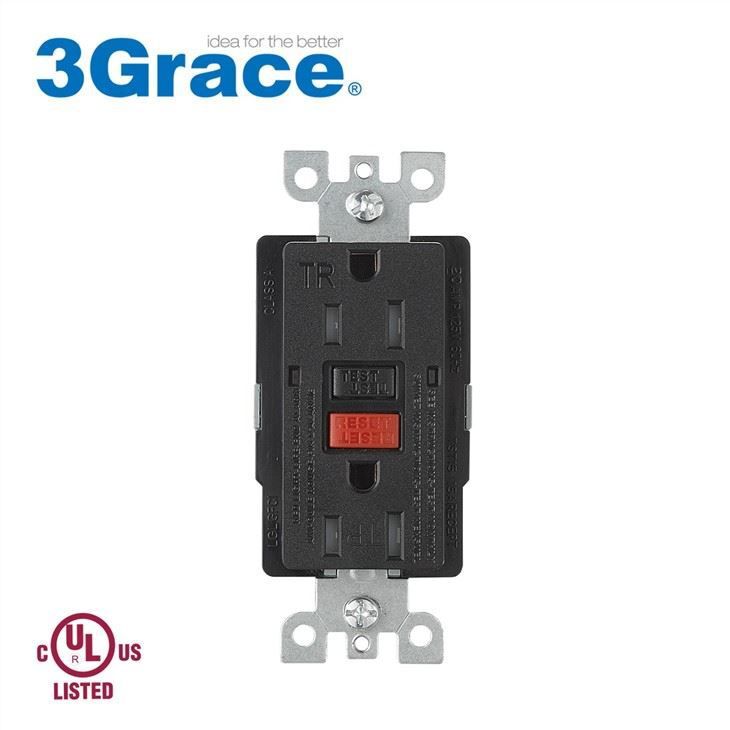

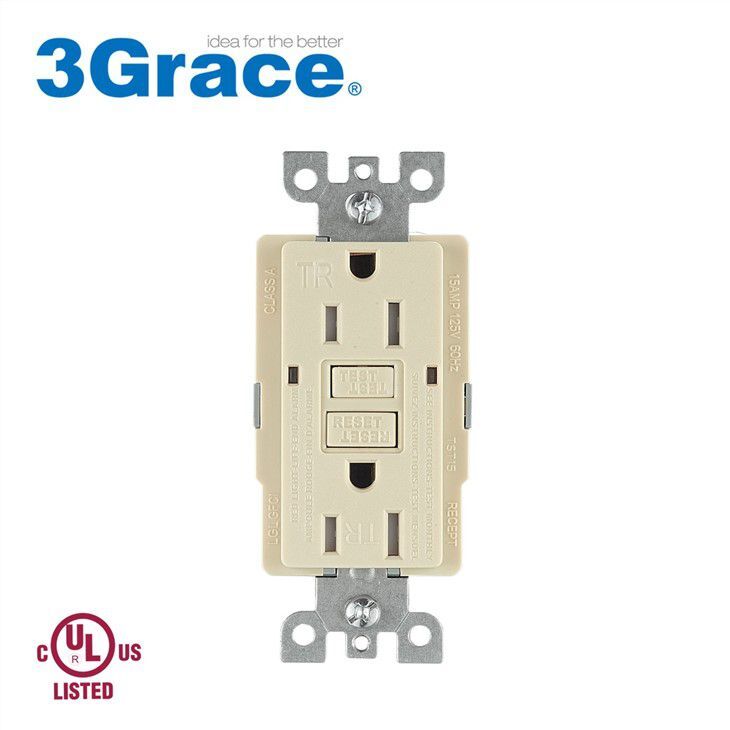

Grounding Fault circuit interrupter short for GFCI, and some people also called Grounding Fault interrupter short for GFI. GFCI or GFI widely used in United States, Canada and South America home circuit system. The main purpose is to protect people from an electric shock caused when some of the current travels through a person’s body due to an electrical fault such as a short circuit, insulation failure, or equipment malfunction.
Specifications:
| Model No. | 125 V |
Input voltage | 125V |
Front Receptacle Current | 15 Amp |
Pass Through Current | 20 Amp |
Trip Fault Current | 4-6 mA |
Trip Time | 0.025 Seconds |
Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
UL 943 (Meet 2015 requirements) | Class A GFCI |
Accepted Terminal Wire Size | 12 gauge to 14 gauge |
Wiring Type | Rear pressure plate and side wiring |
Flammability | Rated V-2 per UL 943 |
Operating Temperature | -35℃ to 66℃ |
Operating Humidity | 30-93% |
