Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST20
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Input Voltage: 125V
Frequency: 60
GFCI size: 105*44.6*42.6mm
Weight: 123.5g
Color: White
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Wiring Type: Rear pressure plate and side wiring
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |

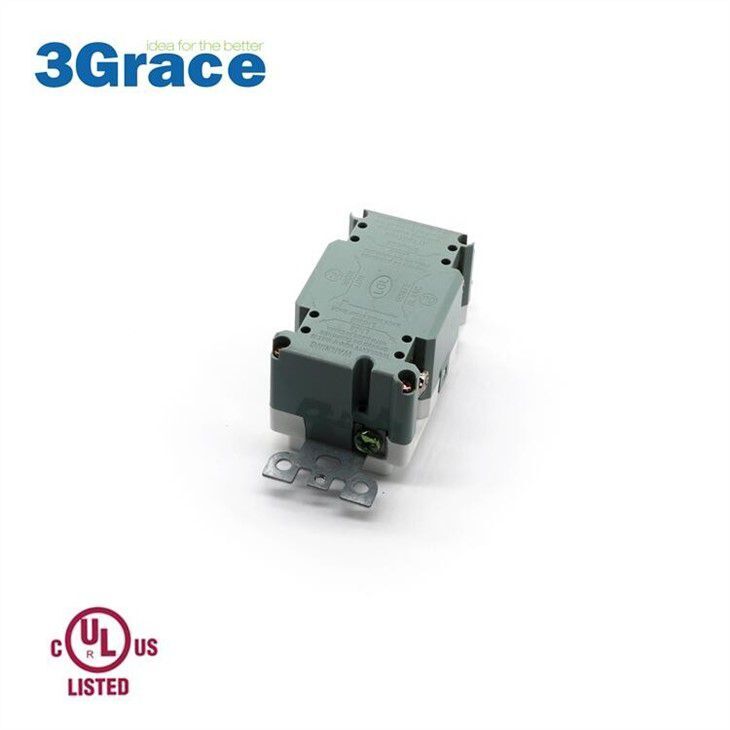

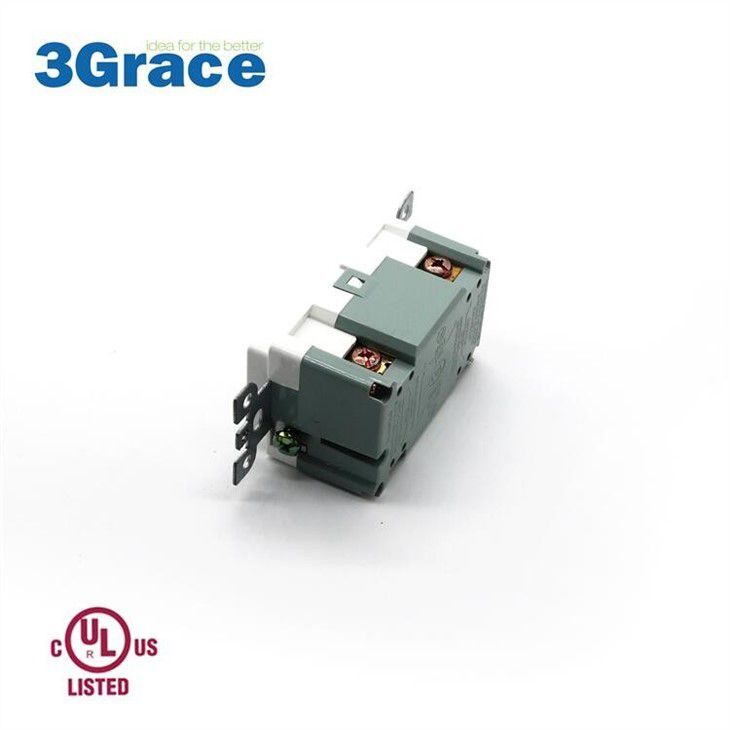

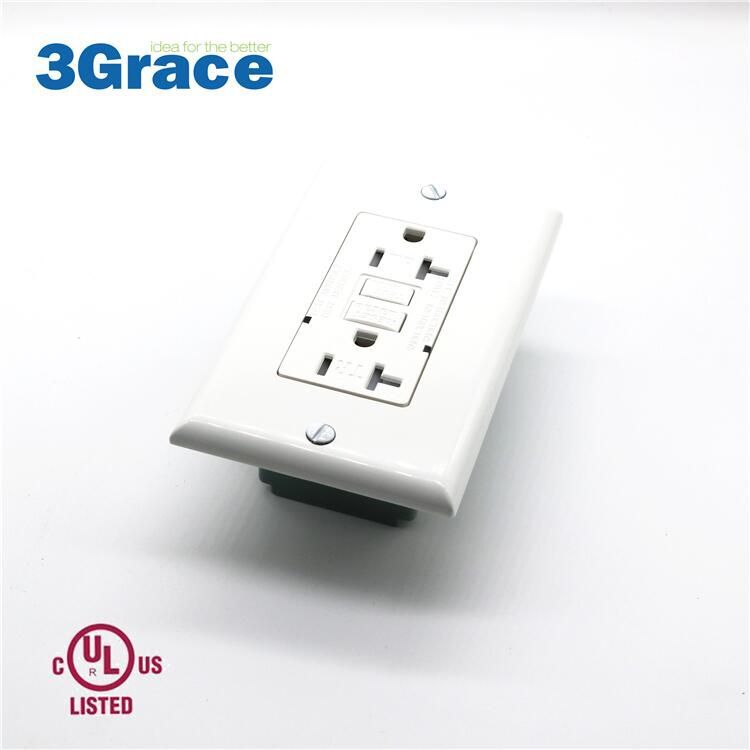

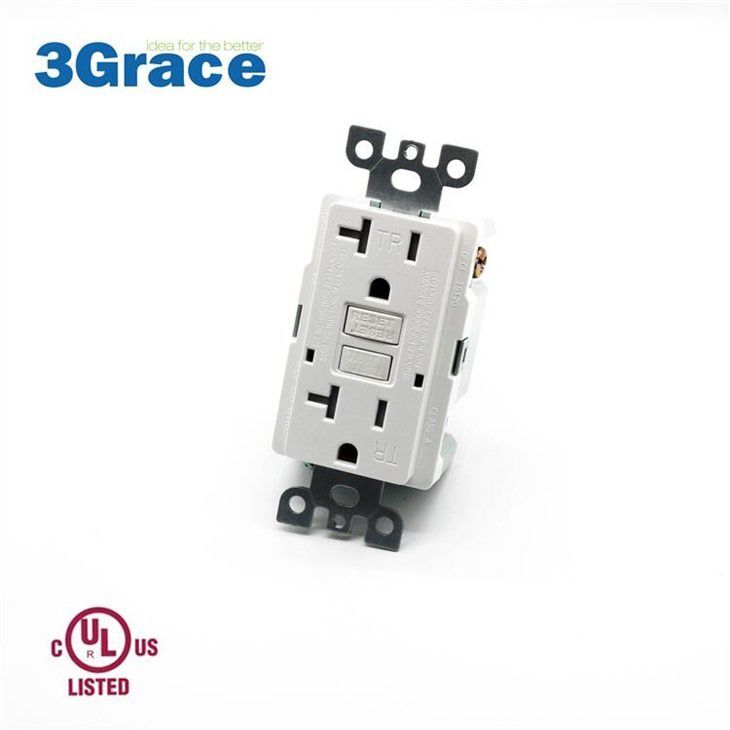

| Picture Example: |
|
A GFCI product is the most often used "receptacle-type" GFCI, similar to a conventional receptacle, and it is the type with which most consumers are familiar.
Product Specification
Model: TST20 | |
Electrical Specifications | |
Self Testing | Yes |
Amperage | 20 Amp |
Rated Voltage | 125 VAC |
Rated Frequency | 60 Hz |
Pole | 2 |
Wire | 3 |
Grounding | Self Grounding With Grounding Clip |
Short Circuit Current Rating | 10KA |
Trip Level | Class A, 6mA plus or minus 4mA |
Trip Time | <25ms |
Material Specifications | |
Body Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
Face Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
Terminal Screws | Plated Steel |
Grounding Screw | Plated Steel |
Yoke | Zinc-Plated Steel |
Mechanical Specifications | |
Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Terminal Wire applied | 14-12 AWG |
Tamper Resistant | Yes |
Weather Resistant | No |
Termination | Back & Side |
Environmental Specifications | Operating Temperature: -35℃ to +66℃ |
Applicable Standards | UL/CUL UL498/UL943 5th Edition |
Warranty | 2-Years |
Product Feature:
1. The GFCI provides a end-of-life monitoring function, a periodical self-testing will be conducted every 1-10 minutes.
2. When the power is on, the Red LED light will flashes one time within 5 seconds.
3. When the GFCI is power on, the Green LED light in on condition: the GFCI is functioning well.
4. Press the “Test” button to test the device once powered on, the flow of electricity will be stopped.
5. The Green LED light in off condition: need to press the “Reset“ button to have the power connected
6. Housing cover can customized according to your requirement
Product Application:
It is recommended that GFCIs be installed in areas where appliances and power tools are used in close proximity to water. Tap water or wet objects are able to conduct electricity very easily and can connect your body to a ground potential, thus increasing your chances of receiving a shock from a ground fault.
FAQ:
Question: are these compatible with aluminum wiring?
Answer: You must first pigtail copper wiring to the outlet then use antioxidant paste and special aluminum to copper connectors. Google aluminum to copper wiring. All the answers are on the internet. You can watch a You Tube video on this.
Question: will it work on 220v?
Answer: No. A 220V plug is totally different. That is by design so someone doesn't accidentally plug a 110 volt item into a 220 volt plug and blow it out
Question: The green light is on but no power is coming out?
Answer: You may have hooked up that box wrong. Try purchasing outlet circuit tester. This device cost between 7-20 dollars depending upon additional features that it can handle. Or you can check if the product in reset condition. You may try to turn off the breaker and then back on.
Packaging:
Below GFCI packaging for your reference
Customized packaging available
Workshop
Lishui Trimone is a China GFCI manufacturer, with more than 20year experience in manufacturing low voltage electrical apparatus, committed to delivering high quality and reliable, safe products with the most competitive price to our customers.
Please don’t hesitate to contact us for a better price for all our offerings.
