TMDR15 15A 125V Decorator Receptacle Outlet
TMDR15 15A 125V Decorator Receptacle Outlet

TMDR15 15A 125V Decorator Receptacle Outlet

Get Latest Price
Min. Order: 1 Piece/Pieces
Standard Classification of Plugs:
Product Attributes

Model No.TMDR15

place of originChina

GroundedStandard Grounding

Scope of applicationResidential / General-Purpose

Packaging & Delivery
Selling Units: Piece/Pieces
Product Description

Production Introduction

Product Name

TMDR15 Standard Duplex Receptacle Outlet

Brand Name

3Grace

Rated current

15Amp

Rated Voltage

125V AC

HP Rating

5-15R or 5-15P or 5-15R & 5-15P Combination

Appilication

Residential / General-Purpose

Main material

PC and copper

Color

White/Ivory/Almond/Black/Grey, or customized

Operating temperature

-20 ℃ ~ +66 ℃

Certifications and Compliance

UL / CUL

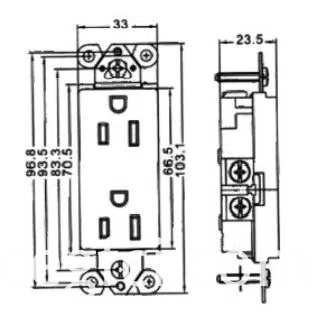

39


  • 15A 125V, 5-15R, self-grounding, 2-pole, 3-Wire. UL94, V2 Rating

  • Durable construction made of high impact-resistant polycarbonate thermoplastic cover and body for long service life



  •  All devices fit standard wall boxes and are suitable for ganging

  • Colors- White, Ivory, Almond, Deep Almond, Gray, Black





  • Suitable for residential use in homes, apartments, condominiums and for commercial use in corporate buildings, hotels, and restaurants

  • 1- year Warranty

  • UL Listed


Production Show

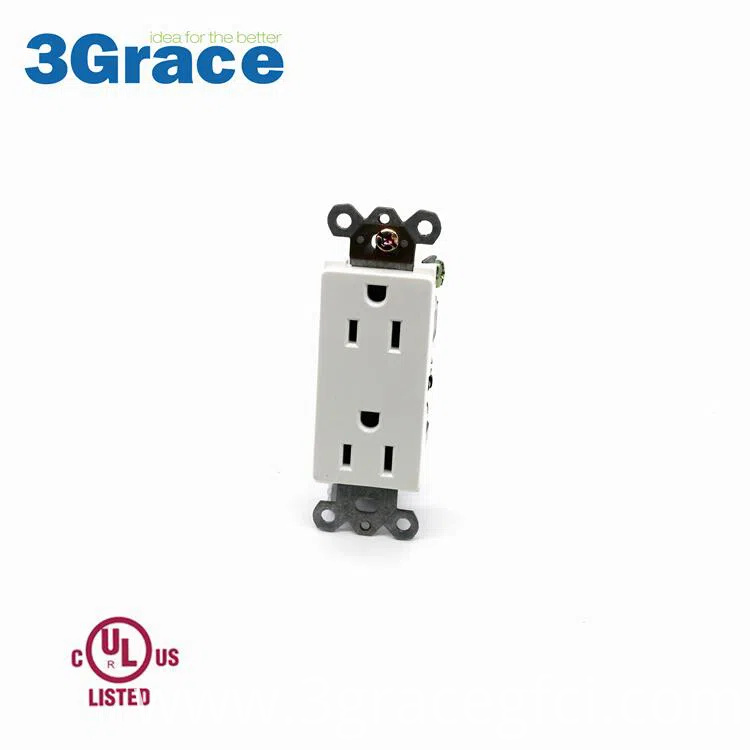

IMG_4343

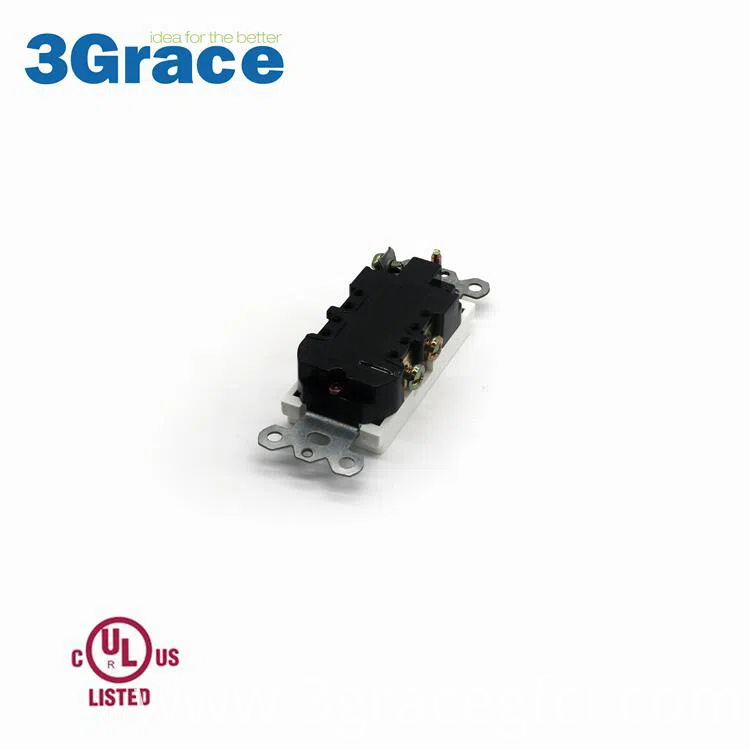

IMG_4347

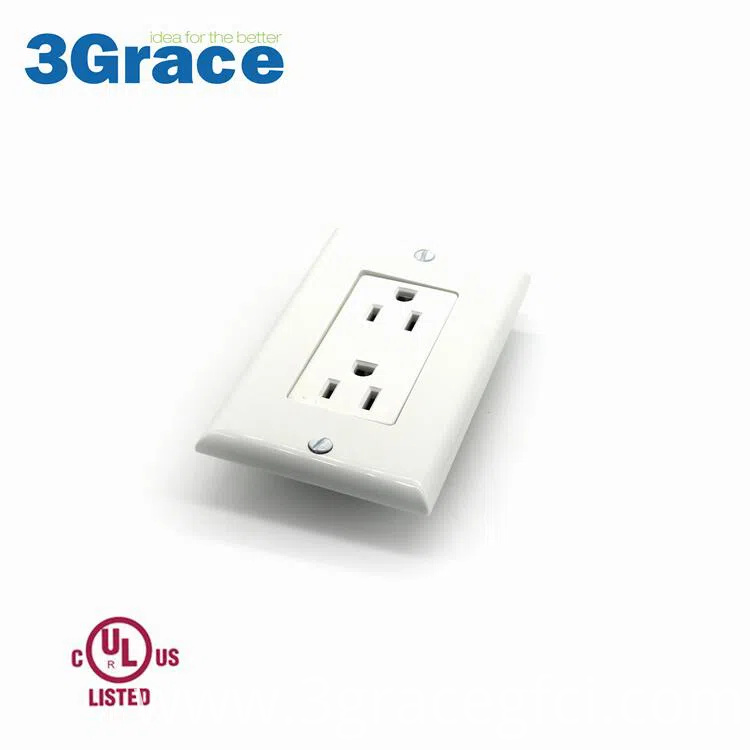

IMG_4345
