Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,L/C,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TSI
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose

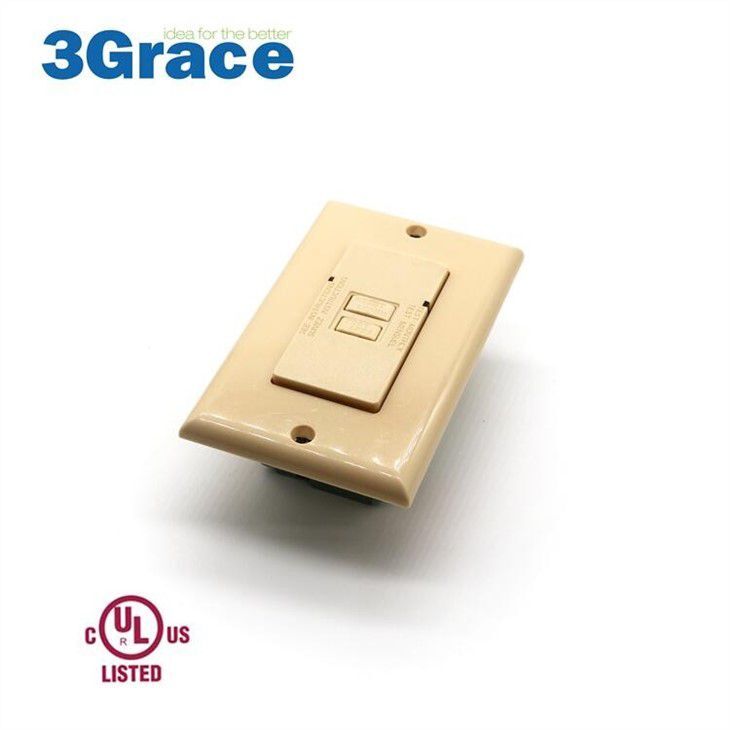

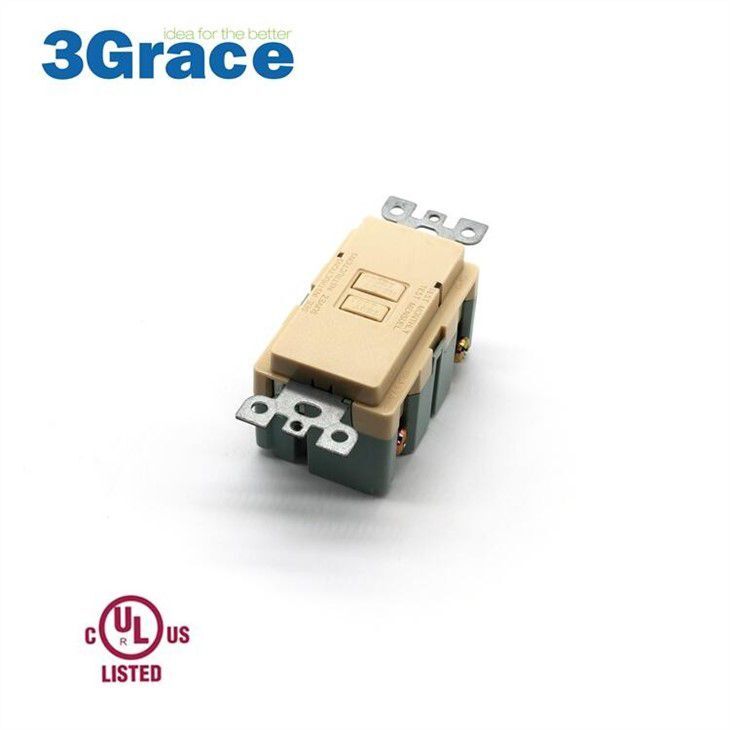

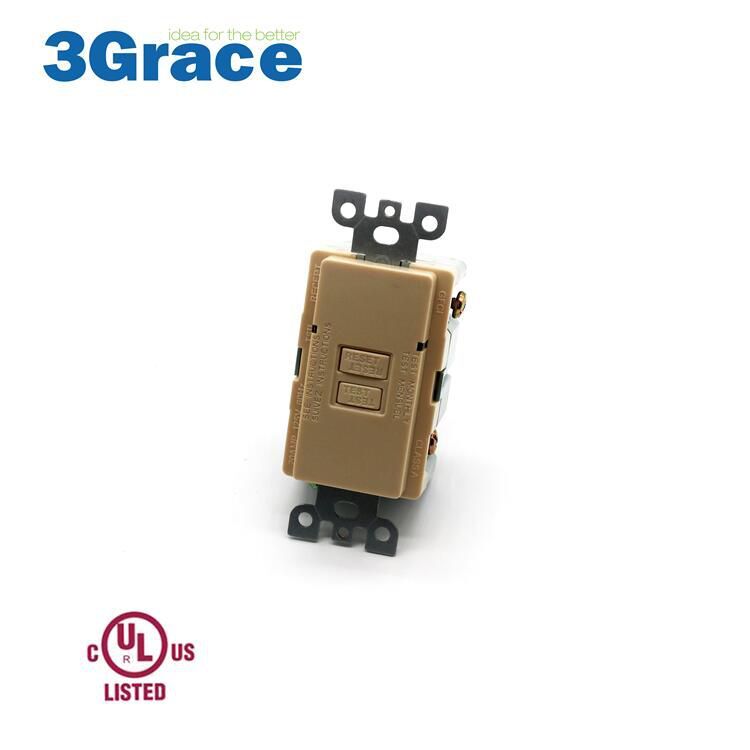

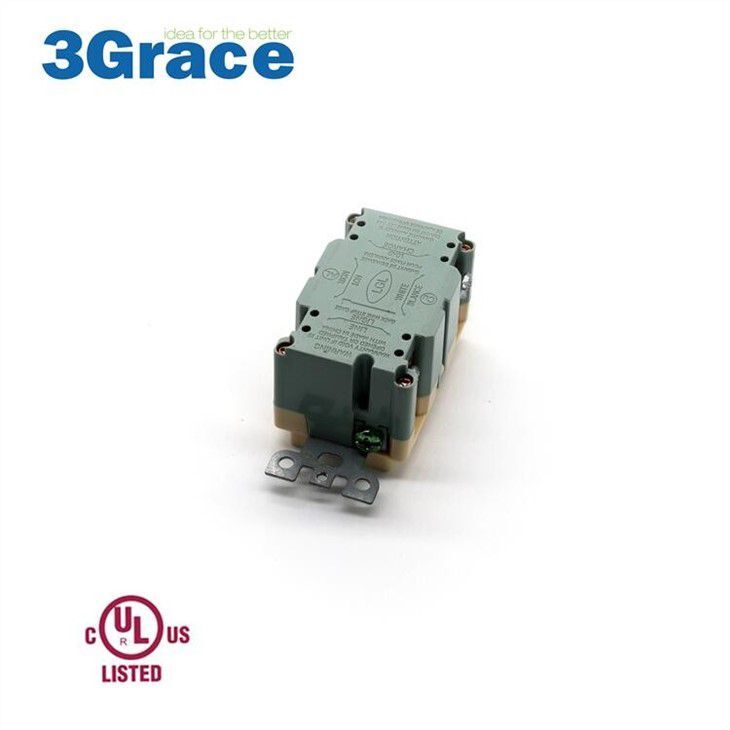

Product name: Slef Testing Blank Face GFCI receptacle
Model No.: TSI
Color: Ivory
Input Voltage: 125V
Current: 20A
Frequency: 60Hz
GFCI size: 105*45*43mm
GFCI weight: 124g
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Features:
1. Auto-trip function once problem is detected
2. LED indicator in the side position
3. Blank face
4. White, black, ivory, almond, gray.
Advantage
1. 20 years GFCI Outlet manufacturing experiences, Trimone owned professional technician and worker
2. All of our product are passed UL approved, UL file No. E473989
3. Support customized packing
Specifications:
Input Voltage | 125 V |
Frequency | 60 Hz |
Front Receptacle Current | 15 Amp |
Pass Through Current | 20 Amp |
Trip Fault Current | 4-6 mA |
Trip Time | 0.025 Seconds |
Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
UL 943 (Meet 2015 requirements) | Class A GFCI |
Accepted Terminal Wire Size | 12 gauge to 14 gauge |

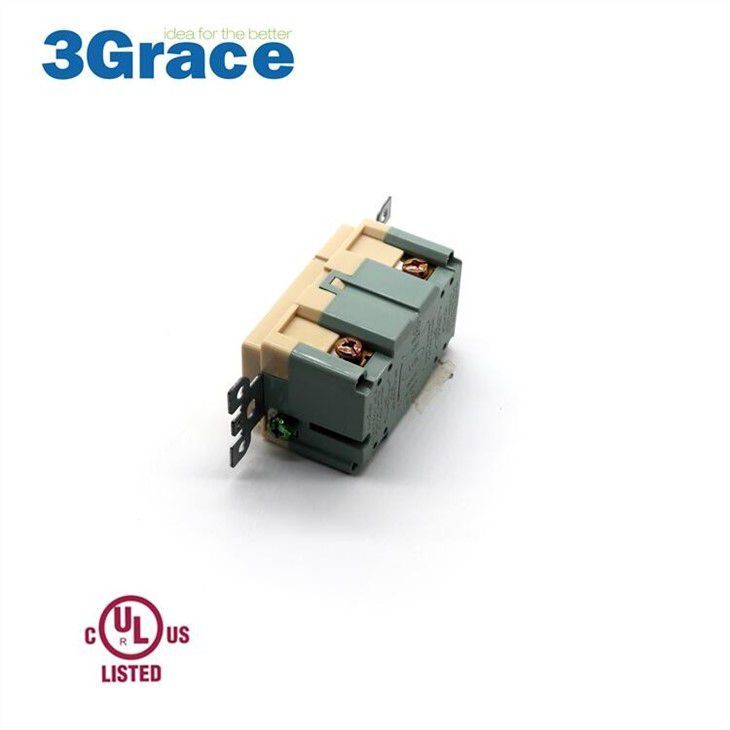

Wiring Type | Rear pressure plate and side wiring |
Flammability | Rated V-2 per UL 943 |
Operating Temperature | -35℃ to 66℃ |
Operating Humidity | 30-93% |

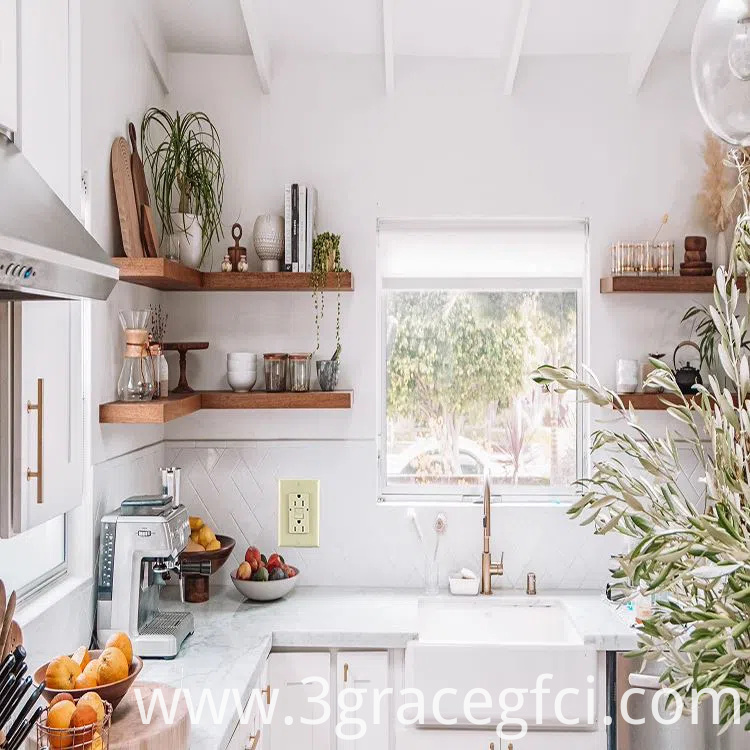

Application
Packing
Shipping

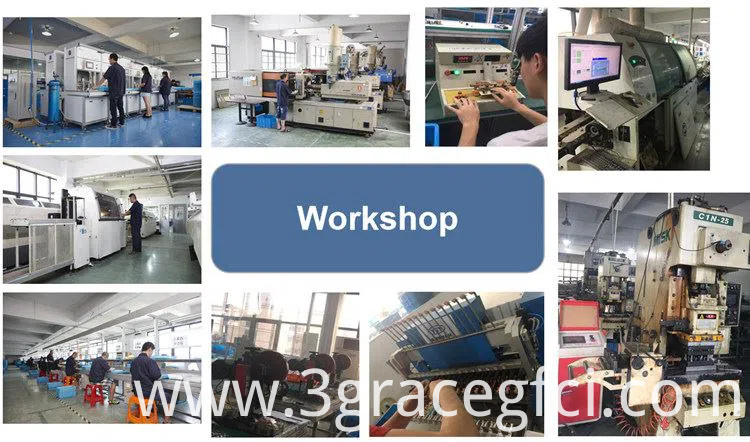

Workshop
Production Workshop process
1. After inspected all kinds semi-finished products, we will according customers request to arrange assembling
2. After the worker finish assembling, we will 100% inspection and testing the product.
3. After we finish 100% inspection and testing , the product is finish, then we will according customers request to arrange the packing and shipping.
