TCTW20 20A Receptacle With Tamper and Weather Resistant
TCTW20 20A Receptacle With Tamper and Weather Resistant

TCTW20 20A Receptacle With Tamper and Weather Resistant

Get Latest Price
Min. Order: 1 Piece/Pieces
Standard Classification of Plugs:
Product Attributes

Model No.TCTW20

warranty period3months-1year

place of originChina

Chassis styleWall Socket

GroundedStandard Grounding

Scope of applicationResidential / General-Purpose

Packaging & Delivery
Selling Units: Piece/Pieces
Product Description

Production Introduction

  • Made of polycarbonate


  • Push in #14 AWG Cu solid wire for 15A branch circuit only


  • Side wire terminals accept #12 or #14 AWG solid copper or stranded wire


  • All devices fit standard wall boxes and are suitable for ganging


  • Easy-access green hex head ground screw

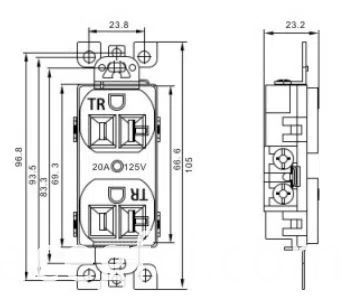

    29

Product Name

TCTW20 Standard Duplex Receptacle Outlet

Brand Name

3Grace

Rated current

20Amp

Rated Voltage

125V AC

HP Rating

5-15R or 5-15P or 5-15R & 5-15P Combination

Appilication

Residential / General-Purpose

Main material

PC and copper

Color

White/Ivory/Almond/Black/Grey, or customized

Operating temperature

-20 ℃ ~ +66 ℃

Certifications and Compliance

UL / CUL




Production Show

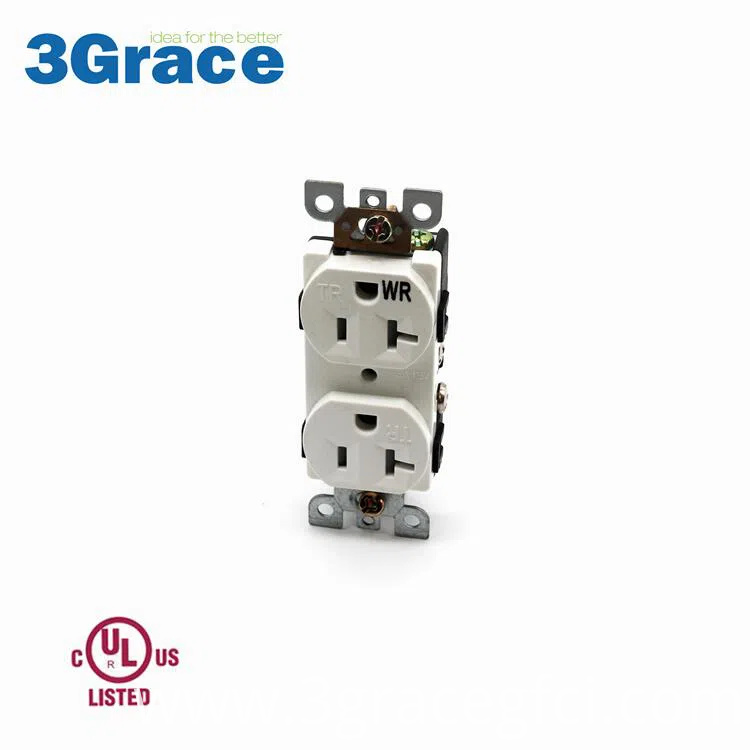

IMG_4407

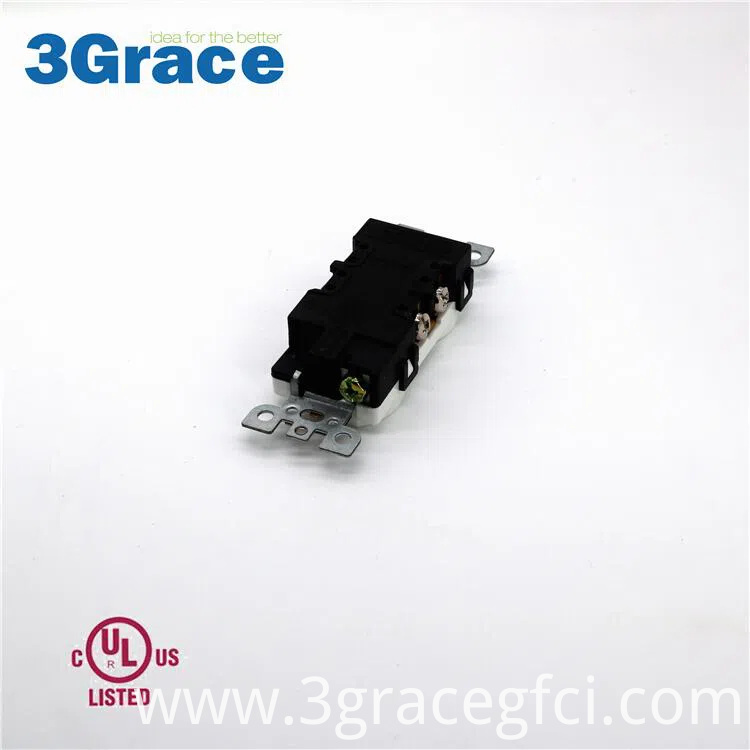

IMG_4411


HTB1


Hot Tags: tctw20 standard duplex receptacle outlet with tamper & weather resistant, 20a 125v, China, suppliers, manufacturers, factory, price, Weather Resistant Gfci Receptacle, 4 Gang Outlet Wall Plate, 2 Gang Decroative GFCI Cover Plate, Self Test Gfci Receptacle, Decorative GFCI Plate, 20 Amp White Regular GFI With TR
Other
Company Overview
3Grace, Lishui Trimone Electrical Technology Co.,Ltd., is a manufacturer of ground-fault circuit interrupter(GFCI), USB charger, Switches, Receptacles, Wall plates and electrical accessories since 2001, We main export our products to United States, Canada, Mexico and Europe.Trimone covers an area of 20,000 square meters with more than 200 employees, housing a wide range of equipment capabilities catering to our production requirements, with an investment of RMB 50,000,000. Our annual sales revenue exceeds RMB 160 million. Trimone always value new products development and technological innovation. We take pride in our continuous functional improvement on our safe lock and reverse miswiring protection function than have acquired Chinese invention Patents and Utility Patents. In 2006, we invented a new version of GFCI with auto-monitoring and end-of-life indication function that complied with UL standard of the US and CUL standard of Canada. In 2015, we upgraded the GFCI with regular self-test function based on latest UL943 standard, which better protect the safety of our users. All our GFCI products are UL and CUL certified (No. E473989) and ETL certified( File No.5023317 ) which makes them eligible for United States and Canada, Mexico and Europe markets. In 2018, we got official United Stated Patent Named Circuit protection Device with automatic fault monitoring and detection function and United Stated Patent Named electrical circuit protection device for leakage current protection with the patent number 9906014 & 9906012. Moreover we got the Chinese Innovation Patent named A KIND OF MONITORING FUNCTION OPERATING FAULT CIRCUIT PROTECTION DEVICE with the patent No. ZL 2016 1 0339793.9 in Year 2018. We are located in the Shuige Economic Development Zone, Liandu District, Lishui City Zhejiang, 10KM from Lishui high-speed railway station. If you want to know more about us, welcome to visit us.
