Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST15
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Input Voltage: 125V
Frequency: 60Hz
GFCI size: 105*44.6*42.6mm
Weight: 124g
Color: White
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
Certificate: UL
Model No.: TST15
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|

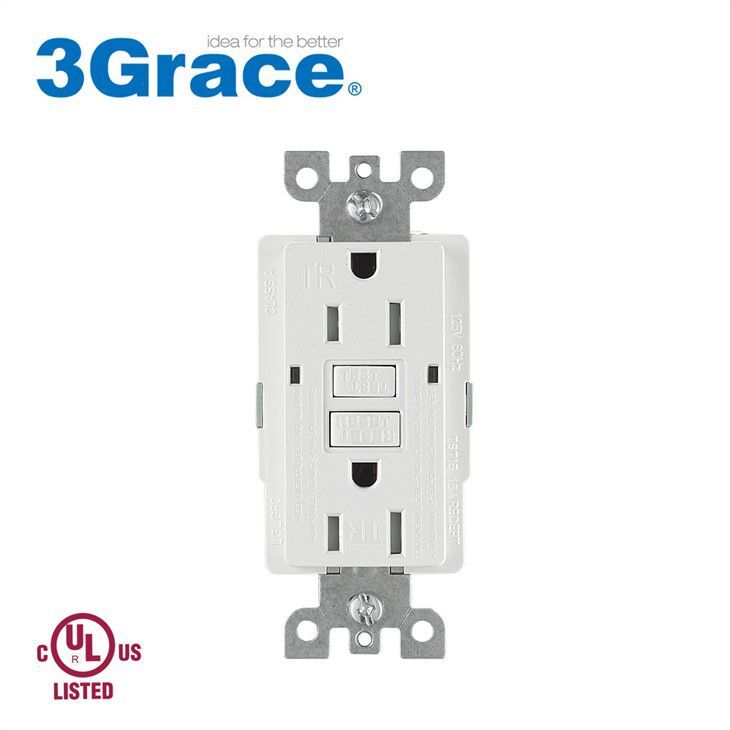

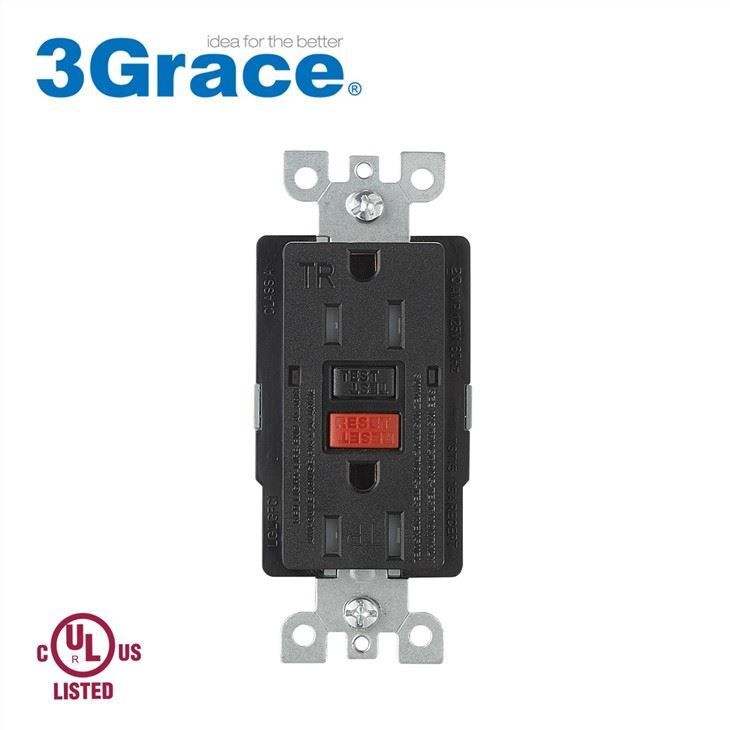

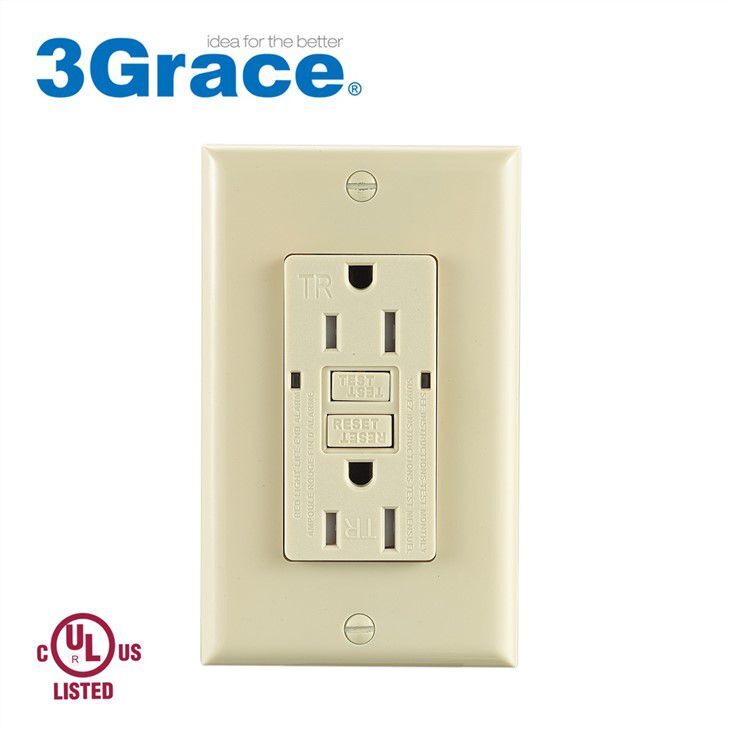

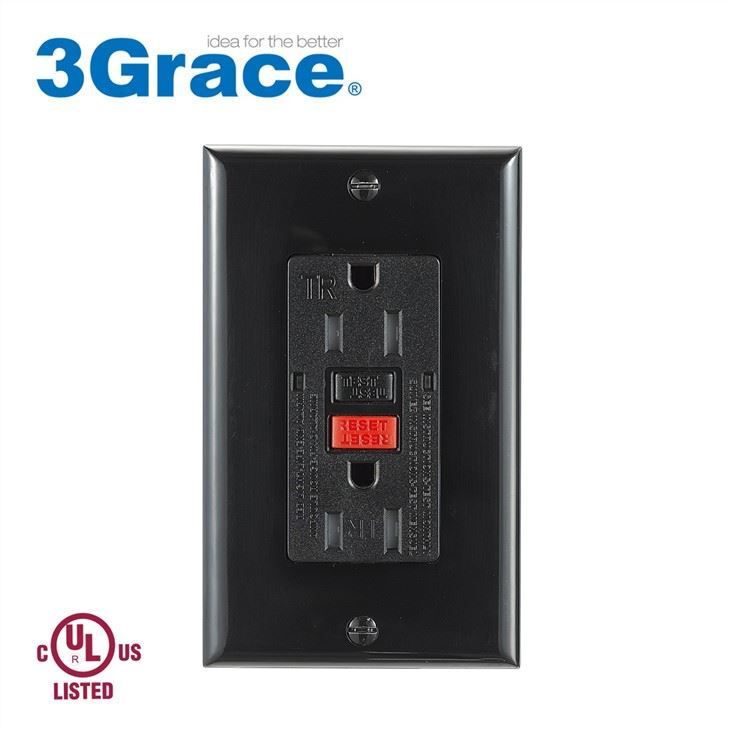

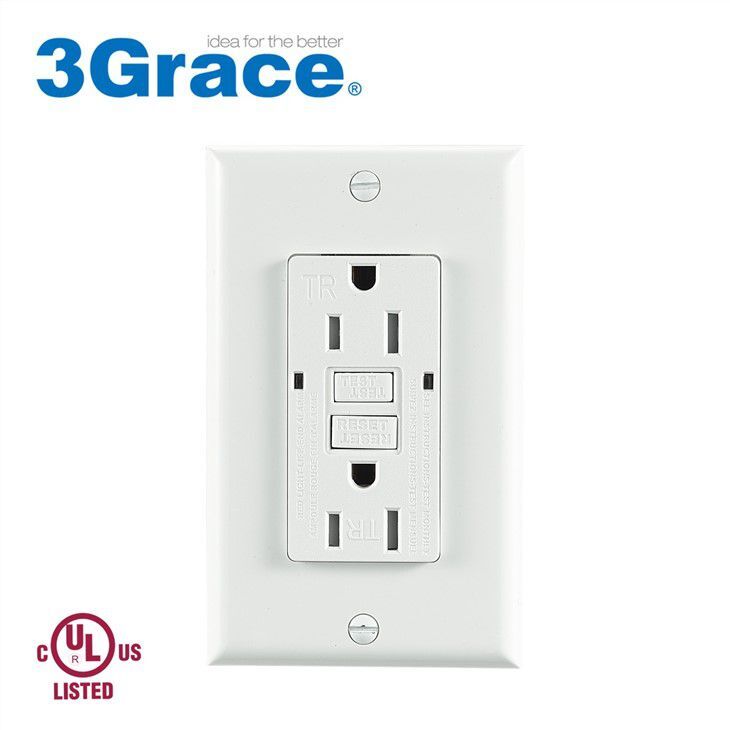

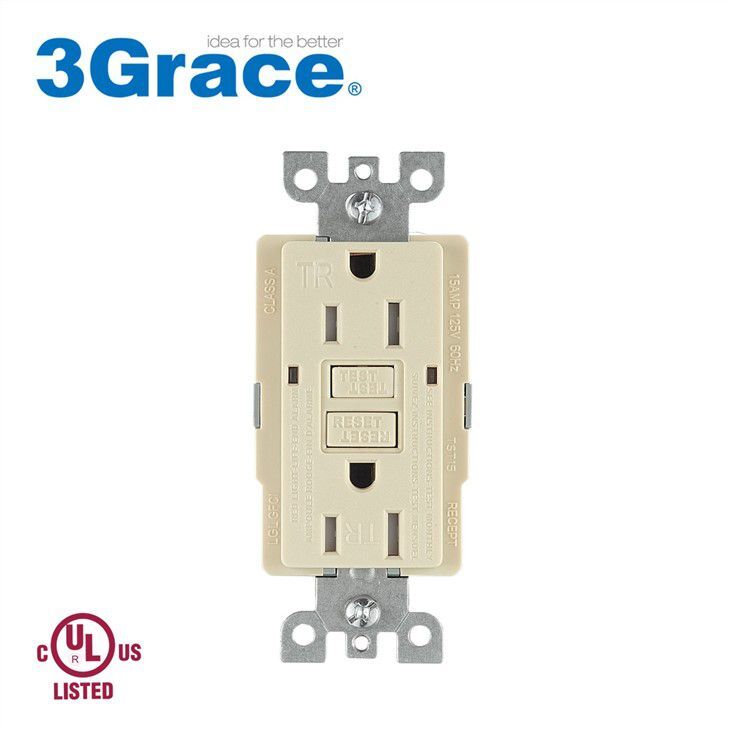

The 3Grace Series GFCIs are the latest innovation in ground fault circuit interrupter protecton. Easy to install, the GFCIs provide all the locuout benefites of standard 3Grace offering, and are avaliable in tamper-resistant and not tamper-resistant versions. Constructed of resilient thermoplastic able to withstand high torque levels, GFCIs come in styles for every need, including a combination guide light/receptacle and a self-test device. Engineered to meet the latest UL standard for auto-monitoring(self-test), our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that protected pwer is available. When it comes to smart GFCI protection, 3Grace is certainly in.
| Model No. | TST15 |
| Front Receptacle Current | 15 Amp |
| Input voltage | 125V |
| Trip Fault Current | 4-6 mA |
| Auto-monitoring Function Test Power-up Test Interval | 1 Seconds |
| Accepted Terminal wire size | 12-14Gauge |
| Operation Temperature | -35℃-66℃ |
| Flammability | Rated V-2 per UL943 |
| | |
