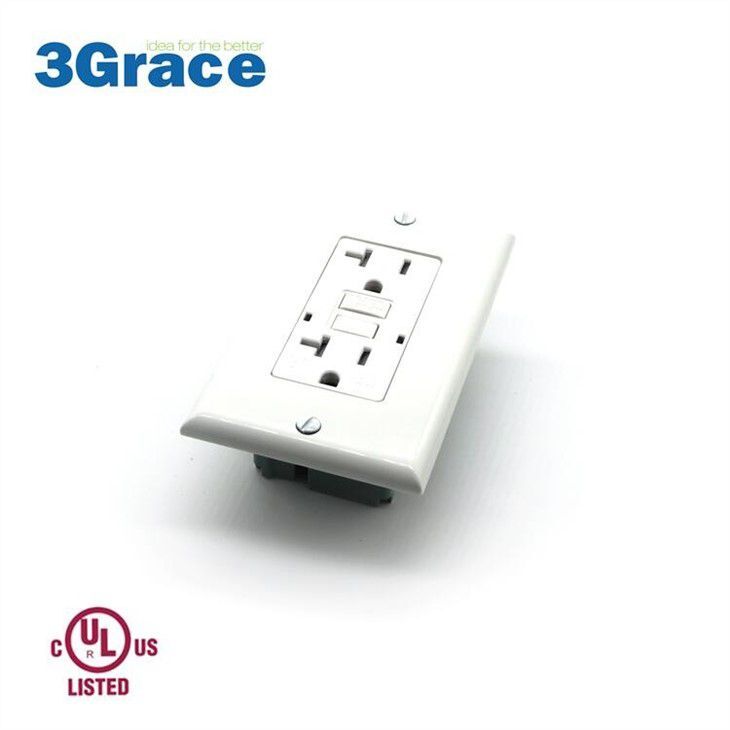

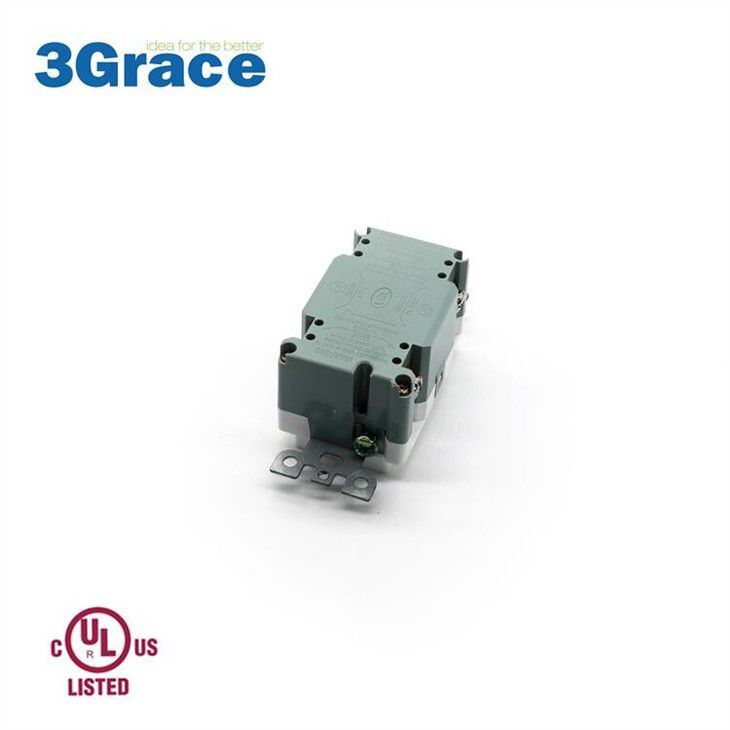

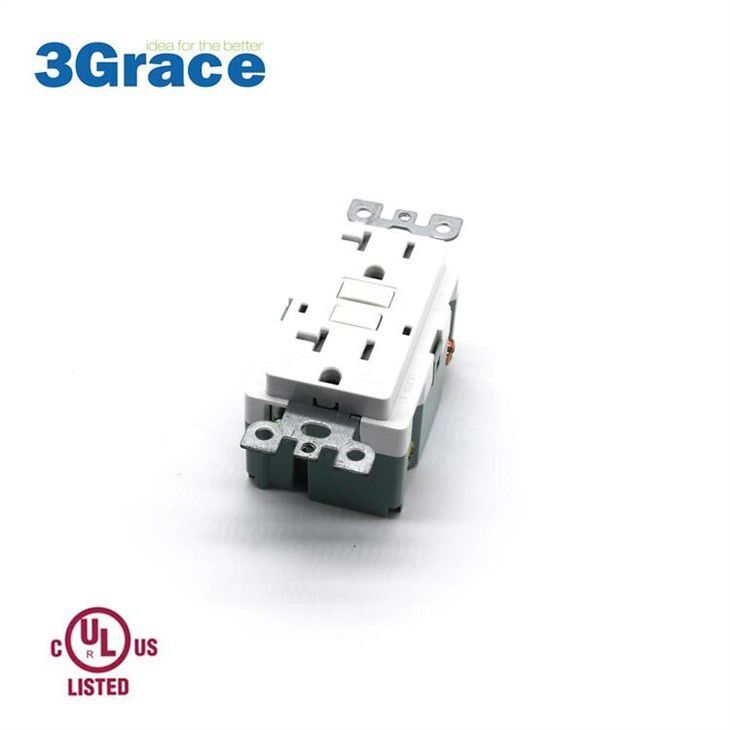

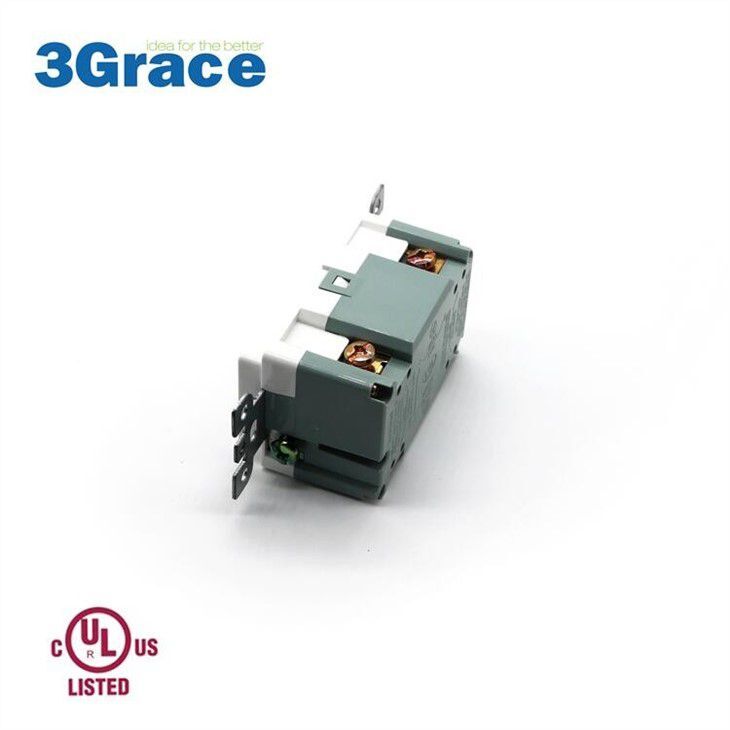

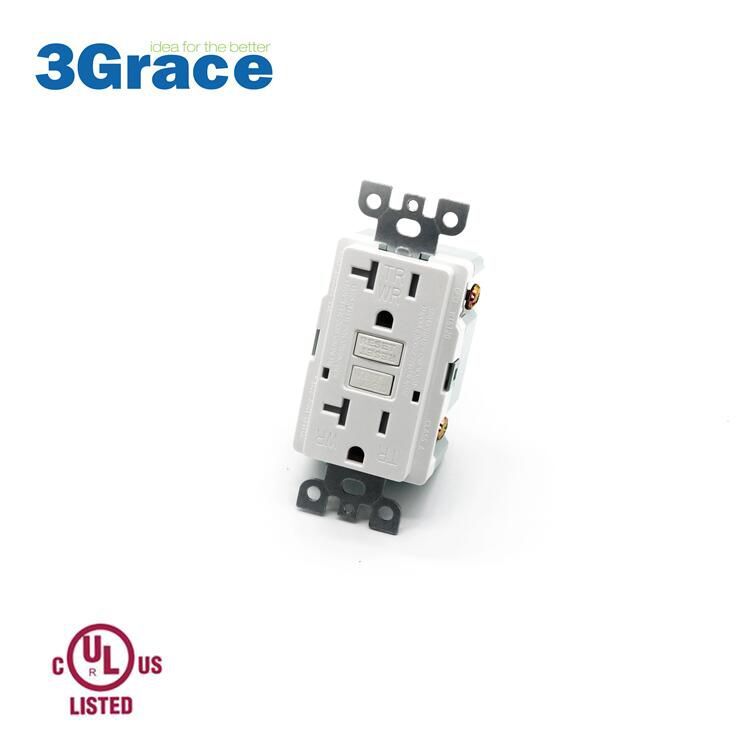

125V 20 Amp White Weather Resistant GFCI Outlet
125V 20 Amp White Weather Resistant GFCI Outlet
125V 20 Amp White Weather Resistant GFCI Outlet

125V 20 Amp White Weather Resistant GFCI Outlet

Get Latest Price$4-5 /Piece/Pieces
Payment Type: T/T,Paypal
Incoterm: Ocean,Land,Air,Express
Min. Order: 1 Piece/Pieces
Transportation: Ocean,Land,Air,Express
Option:
WTST20
Product Attributes

Model No.WTST20

Brand3 Grace

warranty period3months-1year

Custom processingYes

place of originChina

Chassis styleWall Socket

GroundedGfci

Scope of applicationCommercial, Industrial, Hospital, Residential / General-Purpose

Product name125V 20 Amp Weather Resistant GFCI Outlet

Input Voltage125V

Frequency60Hz

GFCI size105*45*43mm

Weight123g

Accepted Terminal Wire Size12 gauge to 14 gauge

Wiring TypeRear pressure plate and side wiring

FlammabilityRated V-2 per UL 943

Operating Temperature-35℃ to 66℃

Operating Humidity30-93%

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized
Picture Example:
Product Description

Feature:

1. Anti-UV PC Material of weather resistant

2. Superior design for the self testing to make sure the safe use of the receptacle

3. Strictly in accordance with UL943

4. Once the wiring is not correct which is from load side 20A GFCI Outlet offers full protection

5. Full protection:GFCIs will not provide power downstream when wired incorrectly

6. If auto-monitoring detects a problem, GFCI will cut down power (trip with the inability to reset)


Specifications:

Input Voltage

125 V

Frequency

60 Hz

Front Receptacle Current

20Amp

Pass Through Current

20 Amp

Trip Fault Current

4-6 mA

Trip Time

0.025 Seconds

Auto-Monitoring Function Test Power-up Test Interval

1 Seconds

Auto-Monitoring Function Test Repeat Test Interval

1-10 Minutes

Auto-Monitoring Function Test Detection and EOF LED Flash Rate

0.1-3 Hz

UL 943 (Meet 2015 requirements)

Class A GFCI

Accepted Terminal Wire Size

12 gauge to 14 gauge

Wiring Type

Rear pressure plate and side wiring

Flammability

Rated V-2 per UL 943

Operating Temperature

-35℃ to 66℃

Operating Humidity

30-93%


Product Application

Kitchen 750 by 750


Packing&Shipping



Shipping

shipping


FAQ:

Q1: What is your company characteristics? Manufacturer or Trading Unit?

A1: Our company is professional Gfci Outlet, Decorative receptacle, USB Charger Outlets and Switch Manufacturer.

Q2: What is your main strength of the electrical products?

A2: Solid product performance and cost effective

Q3: Is there any guarantee of your products?

A3: All of our receptacles are UL&CUL approved with UL File Number E473989

Q4: Is your receptacles are easy for installation?

A4: Yes, our receptacles are easy for installation which must be strictly in accordance with steps in the instruction manual.

Q5. Where to Buy your receptacles?

A5: Our customers can contact directly to us, we will provide you a satisfied service and fast delivery across the North America and Central America. Or you can buy directly from our distributors.

Q6: When can get samples ?

A6: It’s depend on customers’ order. For the sample order, generally it is will take 2-5 days after receive the payment. For the Bulk order, it is will take 15-25days after receive the payment.


Who we are:

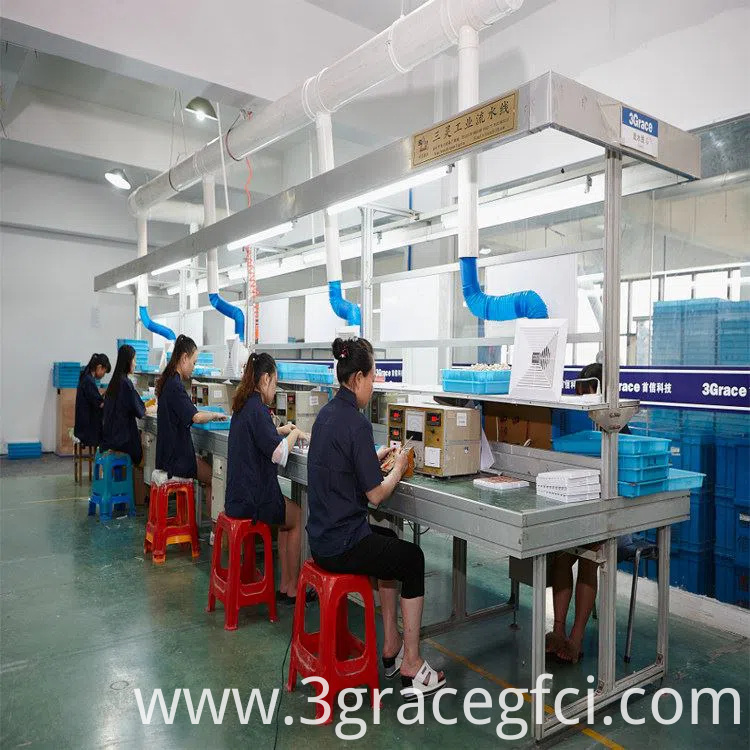

workshop

3Grace, Lishui Trimone Electrical Technology Co.,Ltd., is a manufacturer of ground-fault circuit interrupter(GFCI), Switches, Receptacles, Wall plates and electrical accessories since 2001, We main export our products to United States, Canada, Mexico and Europe.Trimone covers an area of 20,000 square meters with more than 200 employees, housing a wide range of equipment capabilities catering to our production requirements, with an investment of RMB 50,000,000. Our annual sales revenue exceeds RMB 160 million.

Trimone always value new products development and technological innovation. We take pride in our continuous functional improvement on our safe lock and reverse miswiring protection function protection function than have acquired Chinese invention Patents and Utility Patents. In 2006, we invented a new version of GFCI with auto-monitoring and end-of-life indication function that complied with UL standard of the US and CUL standard of Canada. In 2015, we upgraded the GFCI with regular self-test function based on latest UL943 standard, which better protect the safety of our users. All our GFCI products are UL and CUL certified (No. E473989) which makes them eligible for United States and Canada markets.

In 2018, we got official United Stated Patent Named Circuit protection Device with automatic fault monitoring and detection function and United Stated Patent Named electrical circuit protection device for leakage current protection with the patent number 9906014 & 9906012. Moreover we got the Chinese Innovation Patent named A KIND OF MONITORING FUNCTION OPERATING FAULT CIRCUIT PROTECTION DEVICE with the patent No. ZL 2016 1 0339793.9 in Year 2018.

We are located in the Shuige Economic Development Zone, Liandu District, Lishui City Zhejiang, 10KM from Lishui high-speed railway station. If you want to know more about us, welcome to visit us.
