Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union,L/C |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TS15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Product name: Smart GFCI Outlet
Input Voltage: 125V
Current: 15A
Frequency: 60Hz
GFCI size: 105*45*43mm
GFCI weight: 124g
Color: White
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Features
1. Auto-Trip Function once problem is detected
2. Self-Test Function – GFCI Outlet will be automatic test every 1-10 minutes to make sure it can respond to a ground fault
3. End-of-Life Monitoring – if Gfci Outlet displays alarm during operation, RED lights turn on immediately which reminding the user GFCI reaches end-of-life and must be replaced
4. Side and back wired.
Advantage
1. Trimone is a Professional GFCI outlet manufacturer, 20 years production experiences
2. Trimone owned trained worker, strong production capacity, 10000pcs finished GFCI outlet and cover plate per day
3. Trimone New duplex Smart Gfci Outlet passed UL approved which file number was E473989

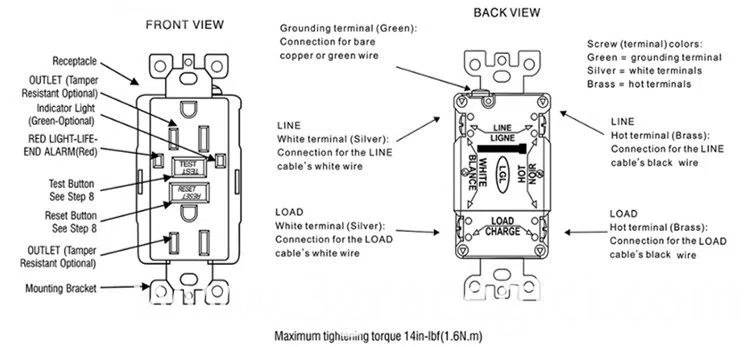

Details
Specifications
| Input Voltage | 125 V |
| Frequency | 60 Hz |
| Front Receptacle Current | 15 Amp |
| Pass Through Current | 20 Amp |
| Trip Fault Current | 4-6 mA |
| Trip Time | 0.025 Seconds |
| Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
| Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
| Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
| UL 943 (Meet 2015 requirements) | Class A GFCI |
| Accepted Terminal Wire Size | 12 gauge to 14 gauge |
| Wiring Type | Rear pressure plate and side wiring |
| Flammability | Rated V-2 per UL 943 |
| Operating Temperature | -35℃ to 66℃ |
| Operating Humidity | 30-93% |
Application
Packing
Shipping
FAQ:
Q1: How to get your price list ?
A1: There are many models in our site, in order to offer most competitive price to you, Please kindly advice Model No or requirement and Target Quantity to us, then the best offer will be arrived in your side within half hours!
Q2: What is minimum order quantity for each item?
A2: About GFCI outlet, we accept any Quantity for testing order and regular order. Regarding receptacle, USB Charger receptacle and Wall Plate, please contact with our sales representative before place order.
Q3: How to delivery the goods?
A3: Express like UPS, FedEx, TNT and DHL will be best for small order or urgent order. For bulk orders, normally ship by Air or Sea.
Contact Now
