Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: WTST20
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Input Voltage: 125V
Frequency: 60Hz
GFCI size: 105*45*43mm
GFCI weight: 124g
Color: White
Accepted Terminal Wire Size: 12 gauge to 14 gauge

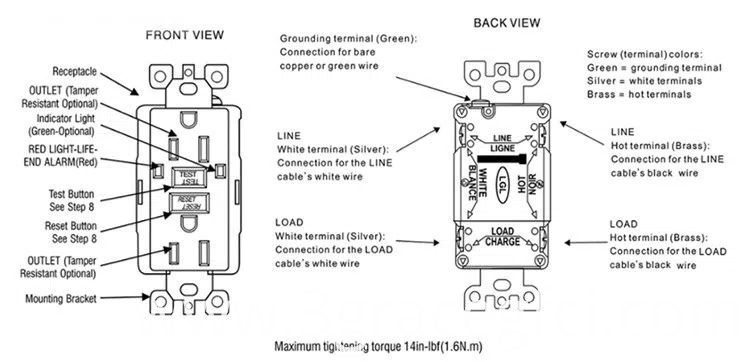

Wiring Type: Rear pressure plate and side wiring
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Ground fault circuit interrupter (GFCI) is a type of circuit breaker which shuts off electric power when it senses an imbalance between the outgoing and incoming current. The main purpose is to protect people from an electric shock caused when some of the current travels through a person’s body due to an electrical fault such as a short circuit, insulation failure, or equipment malfunction. Standard circuit breakers shut off power when the current is too high, like 10, 15, or 20 amps, but a mere 0.03a0 amps through a body can cause paralysis of skeletal muscles and stop the human heart. The GFCI breaks the circuit when it detects an imbalance of only 0.005 amps (0.030 amps in Australia and some European / Asian countries.)
A circuit breaker protects the house wires and receptacles from overheating and possible fire. A GFCI protects people and is often found in bathrooms or kitchens where electrical devices are used and people may be in flesh contact with the floor or metal fixtures which provide an alternate path for current to travel in the case of an electrical fault.
A GFCI can also prevent fires from short circuits and other electrical faults that don’t involve humans such as a low current short where the current never reaches the trigger point for a circuit breaker.
Specifications
Model No.: | WTST20 |
GFCI Outlet color | White |
Rated voltage | 125 Volt |
Rated current | 20 Amp |
Trip Fault Current | 4~6 mA |
Trip Time | 0.025s |
Operating Temperature | -35℃ to 66℃ |
Operating Humidity | 30-93% |
With TR and WR | TR-tamper resistant, WR-weather resistant (WR means ) |
GFCIs Features
3Grace Gfci Outlet Advantage
1. High speed cut power off: 0.025 seconds only
2. Competitive price, short lead time with perfect service
3. Included instructions, very easy to install
4. Fast and professional detailed solutions
5. White, black, ivory, almond, gray etc various kinds of colors available, We also accept customized color for bulk order

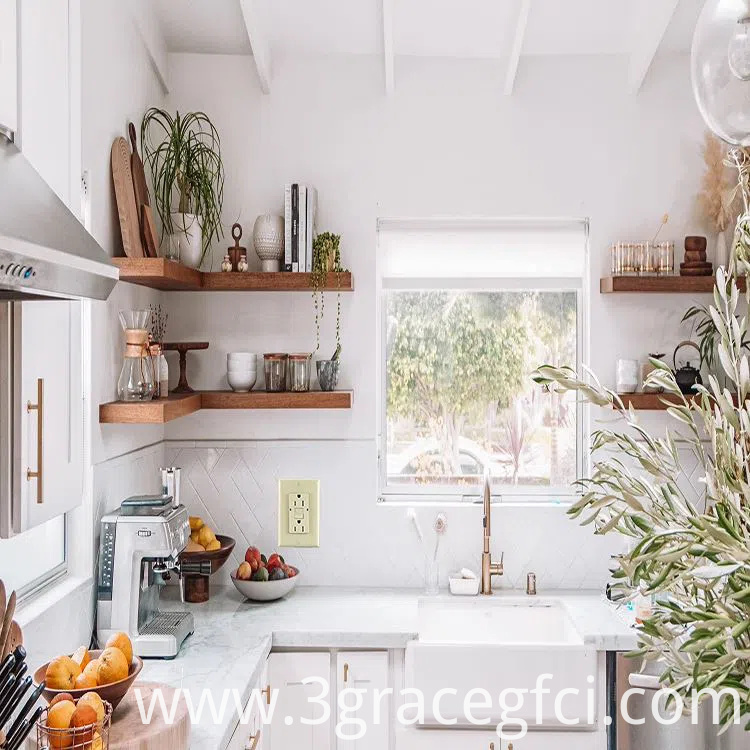

Application
Packing
Shipping
FAQ
Q1: Are you factory or trading company?
A1: We are professional GFCI outlet, receptacle, USB Charger receptacle and Wall Plate factory.
Q2: What is your terms of payment?
A2: 30% prepay and balance 70% before shipment.
Q3: What certificate you have?
A3: All of our products are UL&CUL approved.
