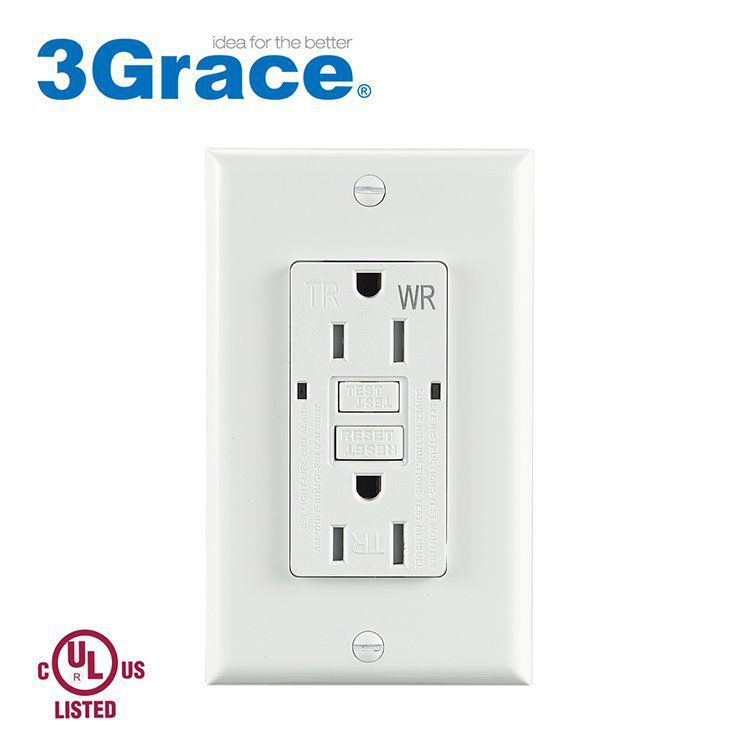

15 Amp Weather Resistant GFCI Outlet
15 Amp Weather Resistant GFCI Outlet

15 Amp Weather Resistant GFCI Outlet

Get Latest Price
Payment Type: T/T,Paypal,Money Gram,Western Union,D/A
Incoterm: Ocean,Land,Air,Express
Min. Order: 1 Piece/Pieces
Transportation: Ocean,Land,Air,Express
Standard Classification of Plugs:
US
Product Attributes

Model No.WTST15

Brand3 Grace

warranty period3months-1year

Custom processingYes

place of originChina

Chassis styleWall Socket

GroundedGfci

Scope of applicationCommercial, Industrial, Hospital, Residential / General-Purpose

DescriptionSelf-Test TR GFCI Outlet

MaterialPC+Copper

CertificationUL & CUL

FeaturesTR,WR,Self-Testing

Amperage/Voltage15Amp 125V

NEMA5-20R

Size105*44.6*42.6mm

Weight123.5g(Not including wall plate)

 Wire Size12-14AWG

Trip Time0.025s

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized
Picture Example:
Product Description

1. 15A/20A, 125VAC, 60Hz feed through
2. Back and side wire
3. Colors- White, Ivory, Almond, Deep Almond, Gray, Black,Red/Black/Blue/White button (or at your option) or customized color

Feature:

1. Weather resistant means anti-UV radiation, short for WR which will show on GFCI Receptacle Outlet.

2. Weather resistant outlet adopted impact-resistant thermoplastic cover and body, 3Grace GFCI Outlet offer white, ivory, almond, black etc colors for the customer choose.

3. weather resistant outlet provides continuous ground fault protection, detects and trips on actual ground fault even when self-test is being conducted.

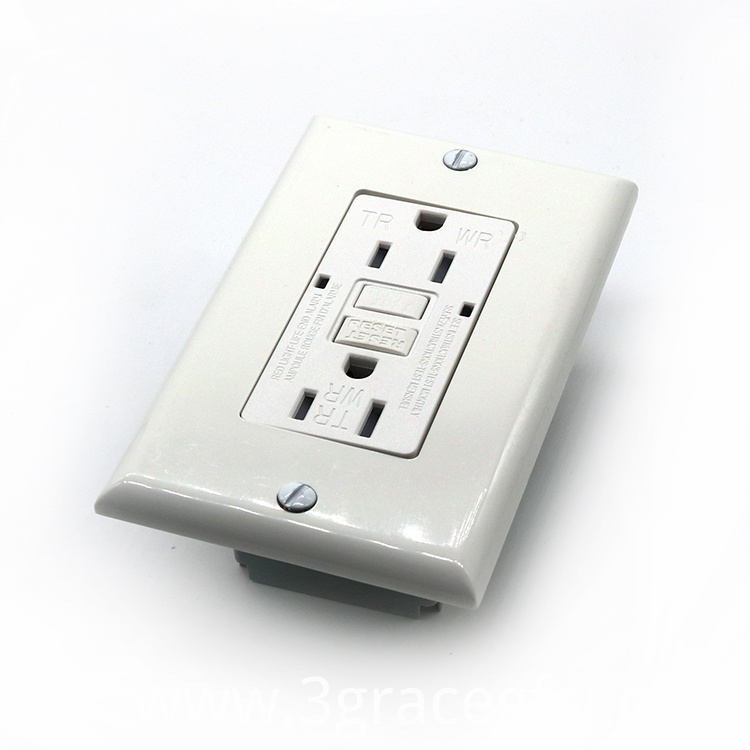

Wtst15 20Wtst15Wtst15 W


Specifications:

Model No.

WTST15

Brand Name

3Grace

Application

Residential/General-Purpose

Voltage

125 Voltage

Current

15 Amp

NEMA Configuration receptacle

NEMA 5-15

Number of outlets

2

Outlet Configuration

Duplex

Outlet Material

Thermoplastic

Rating

15A, 125V Tamper Resistant,Weather Resistant

Accepted Terminal Wire Size

12 gauge to 14 gauge

Wiring Type

Rear pressure plate and side wiring

Flammability

Rated V-2 per UL 943

Operating Temperature

-35℃ to 66℃

Operating Humidity

30-93%

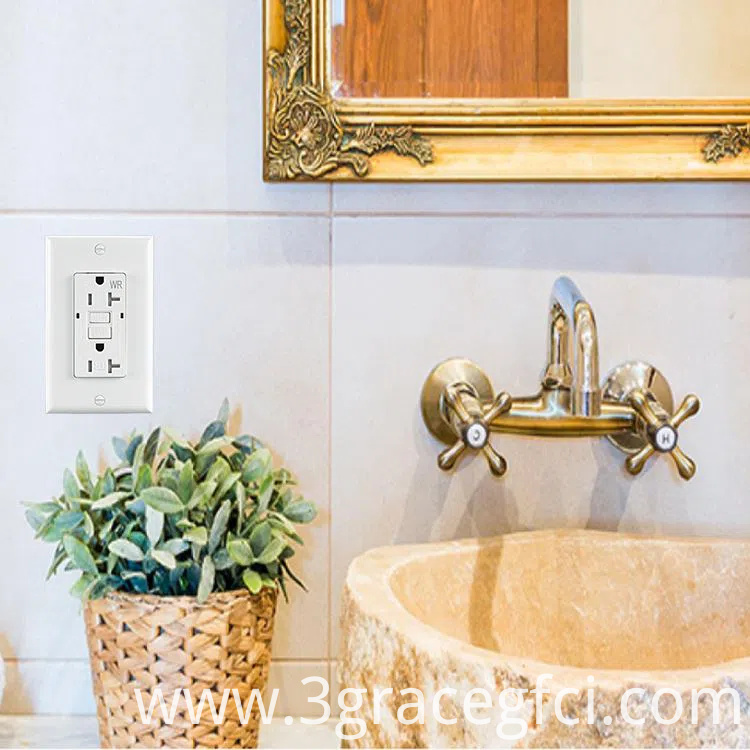

Product Application

Applications


Packing&Shipping



Shipping

Shipping


FAQ:

Q1: Are you factory or trading company?

A1: We are professional Gfci Outlet, receptacle, USB Charger receptacle and Wall Plate factory.

Q2: What certificate you have?

A2: All of our products are UL&CUL approved.

Q3: Do you provide samples? Is it free or extra charge?

A3: According our company’s policy, the customer should pay the sample cost and freight cost for the samples.

Q4: How Long is your delivery time?

A4: It’s depend on your order. For the sample, generally it is will take 2-5 days after receive the payment. For the Bulk order, it is will take 15-25days after receive the payment.

About us:

 (2)_

3Grace, Lishui Trimone Electrical Technology Co.,Ltd., is a manufacturer of ground-fault circuit interrupter(GFCI), Switches, Receptacles, Wall plates and electrical accessories since 2001, We main export our products to United States, Canada, Mexico and Europe.Trimone covers an area of 20,000 square meters with more than 200 employees, housing a wide range of equipment capabilities catering to our production requirements, with an investment of RMB 50,000,000. Our annual sales revenue exceeds RMB 160 million.

Trimone always value new products development and technological innovation. We take pride in our continuous functional improvement on our safe lock and reverse miswiring protection function protection function than have acquired Chinese invention Patents and Utility Patents. In 2006, we invented a new version of GFCI with auto-monitoring and end-of-life indication function that complied with UL standard of the US and CUL standard of Canada. In 2015, we upgraded the GFCI with regular self-test function based on latest UL943 standard, which better protect the safety of our users. All our GFCI products are UL and CUL certified (No. E473989) which makes them eligible for United States and Canada markets.

In 2018, we got official United Stated Patent Named Circuit protection Device with automatic fault monitoring and detection function and United Stated Patent Named electrical circuit protection device for leakage current protection with the patent number 9906014 & 9906012. Moreover we got the Chinese Innovation Patent named A KIND OF MONITORING FUNCTION OPERATING FAULT CIRCUIT PROTECTION DEVICE with the patent No. ZL 2016 1 0339793.9 in Year 2018.

We are located in the Shuige Economic Development Zone, Liandu District, Lishui City Zhejiang, 10KM from Lishui high-speed railway station. If you want to know more about us, welcome to visit us.

Hot Tags: 15 amp weather resistant outlet, China, suppliers, manufacturers, factory, price, 20 Amp GFCI Outlet With TR WR, 20 Amp Weather Resistant Auto Trip GFCI Outlet, 20 Amp Gfci Switch, 20 Amp Gfci Outlet Tamper Resistant, Decorative Duplex Electrical Receptacle, 15 Amp White GFI Receptacle Outlet

Looking for ideal Weather Resistant and Tamper Resistant GFCI Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Weather Resistant 15a Gfci are quality guaranteed. We are China Origin Factory of Gfci Socket with Weather Resistant. If you have any question, please feel free to contact us.
