Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST20
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Product name: Safe GFCI Switch Outlet
Color: White
Input Voltage: 125V
Frequency: 60Hz
GFCI size: 105*45*43mm
GFCI weight: 124g
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |

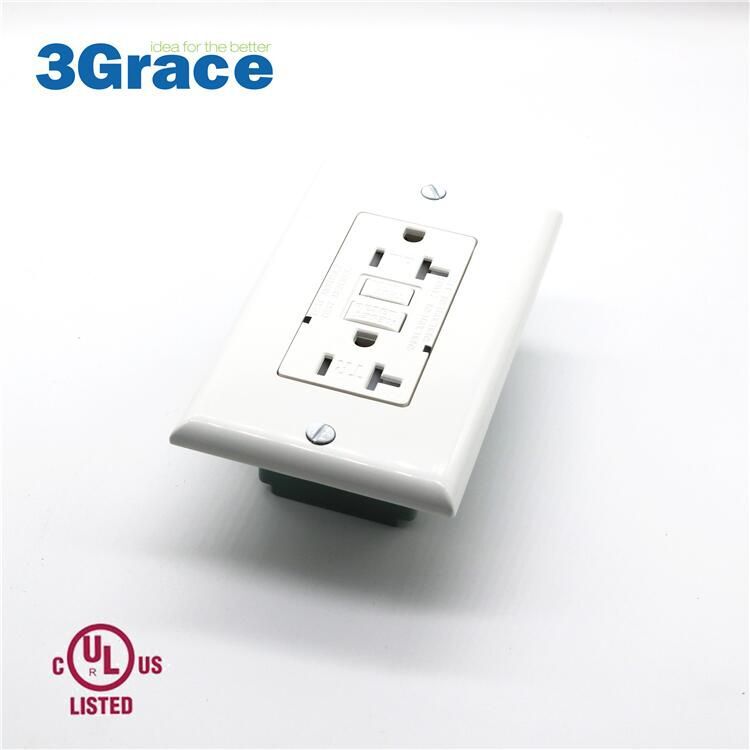

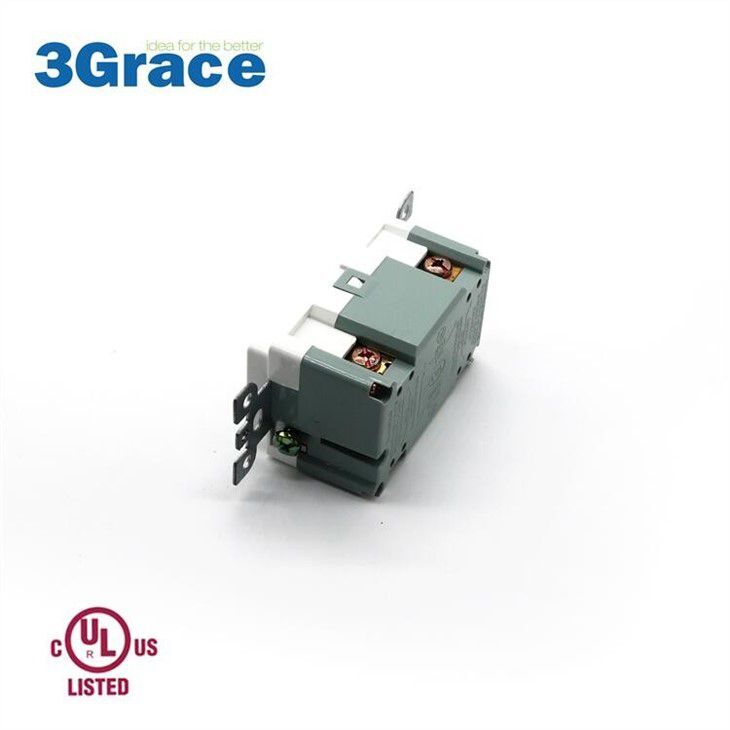

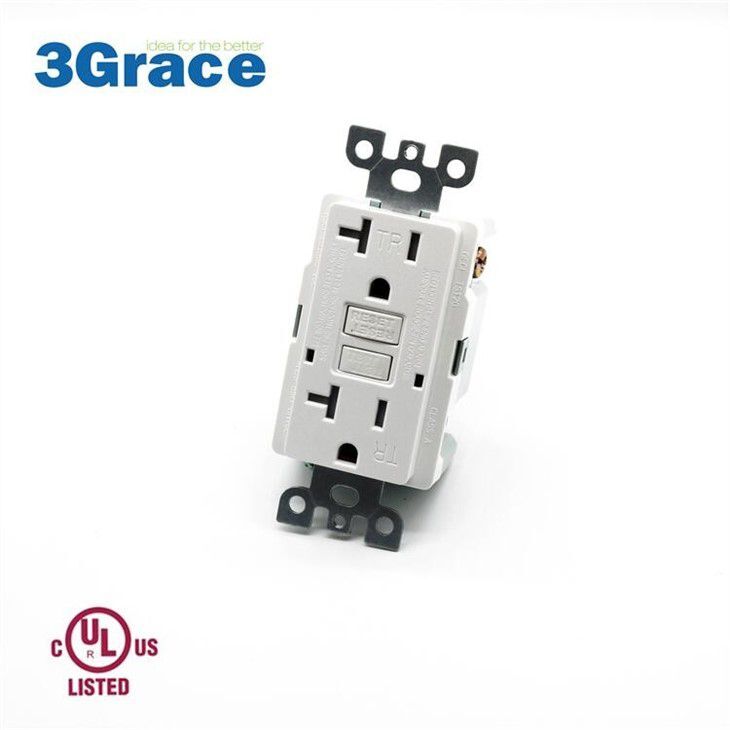

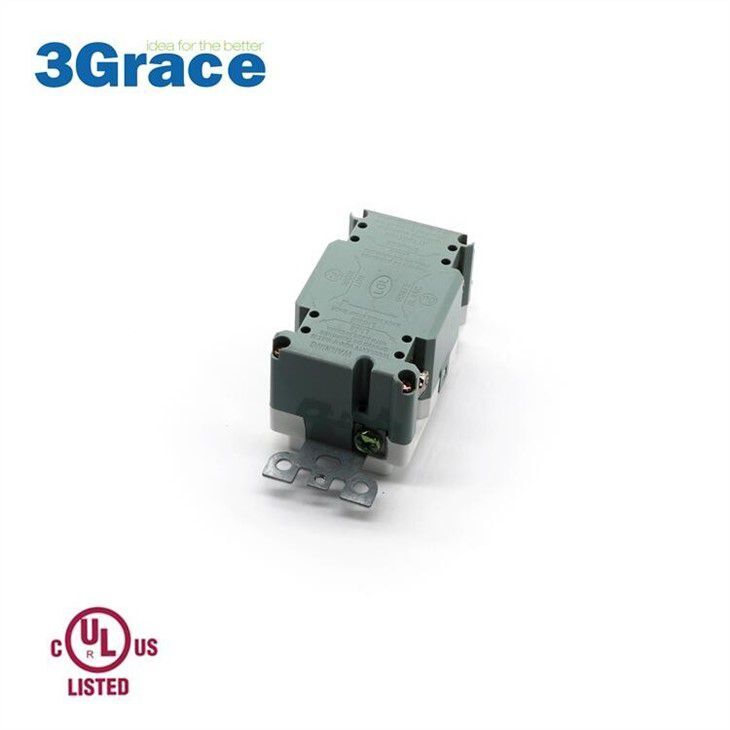

| Picture Example: |
|
A GFCI protection device operates on the principle of monitoring the imbalance of current between the circuit's ungrounded (hot) and grounded (neutral) conductor. It does not monitor the grounding conductor, and so it will still operate in a circuit without a ground.
Product Specification
Model: TS20 | |
Electrical Specifications | |
Self Testing | Yes |
Amperage | 20 Amp |
Rated Voltage | 125 VAC |
Rated Frequency | 60 Hz |
Pole | 2 |
Wire | 3 |
Grounding | Self Grounding With Grounding Clip |
Short Circuit Current Rating | 10KA |
Trip Level | Class A, 6mA plus or minus 4mA |
Trip Time | <25ms |
Material Specifications | |
Body Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
Face Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
Terminal Screws | Plated Steel |
Grounding Screw | Plated Steel |
Yoke | Zinc-Plated Steel |
Mechanical Specifications | |
Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Terminal Wire applied | 14-12 AWG |
Termination | Back & Side |
Environmental Specifications | Operating Temperature: -35℃ to +66℃ |
Applicable Standards | UL/CUL UL498/UL943 5th Edition |
Warranty | 2-Years |
Our advantage:
1. No sub-con manufacturing, whole process are completed 100% by shouxin;
2. Reliable quality control process, products are 100% tested to make sure every outgoing product with good quality;
3. Professional Team – consist of engineer, production manager, and skillful workers
4. With its 20 years manufacturing experience in low voltage electric product filed, the first Chinese GFCI manufacturer.
Product Application:
GFCI outlets should be installed in any potentially wet or damp areas such as kitchens, bathrooms, laundry rooms, outdoors, basements, garages and workshops. Damp areas can make you prone to dangerous electric shock but using a GFCI Outlet can greatly reduce your risk of injury.
FAQ:
Question: how do I know the amperage I need for a bathroom?
Answer: The hair dryer is the one who need the most amperage so look on your hair dryer what is the amperage need for it.
Question: does a gfci go bad with age?
Answer: In general, it does, a gfci can go bad with general (age) use. The more they are tripped then it is more likely to fail.
Question: will a 15 amp gfci trip if driving two conventional outlet, and draw over 15 amps?
Answer: Ground Fault Circuit Interruptors will not trip on overloading. They are designed ONLY to detect a ground fault. This device should be fed by a Afci. The amp rating of the Afci will determine tripping by too much current draw.
Packaging:
Below GFCI packaging for your reference
Customized packaging available
Workshop
Trimone is a Chinese GFCI supplier, with more than 20year experience in quality control of GFCI series products , committed to delivering high quality and reliable, safe products with the most competitive price to our customers. Welcome to visit us for a factory tour.
