Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST20
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Input Voltage: 125V
Current: 20A
Frequency: 60Hz
GFCI size: 105*45*43mm
Weight: 124g
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Wiring Type: Rear pressure plate and side wiring
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |

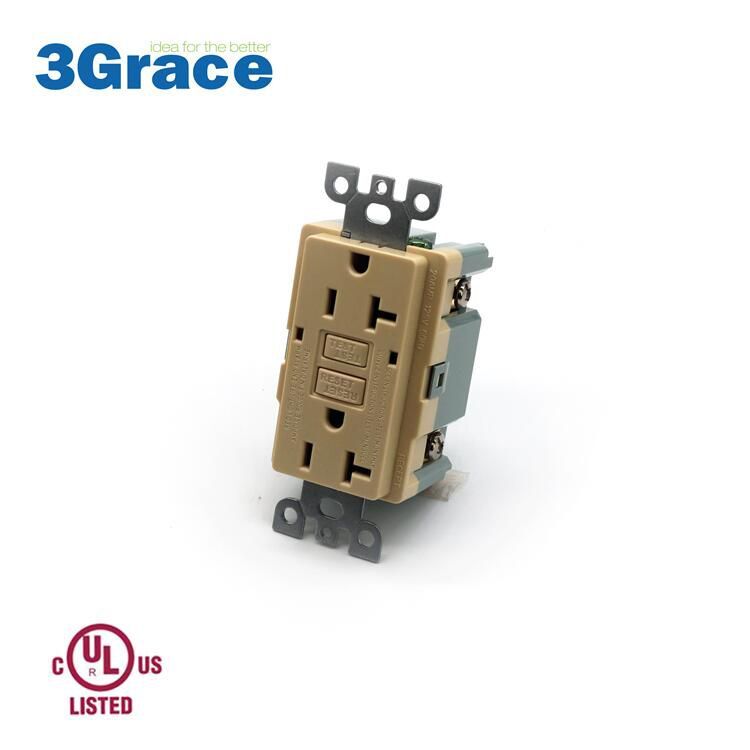

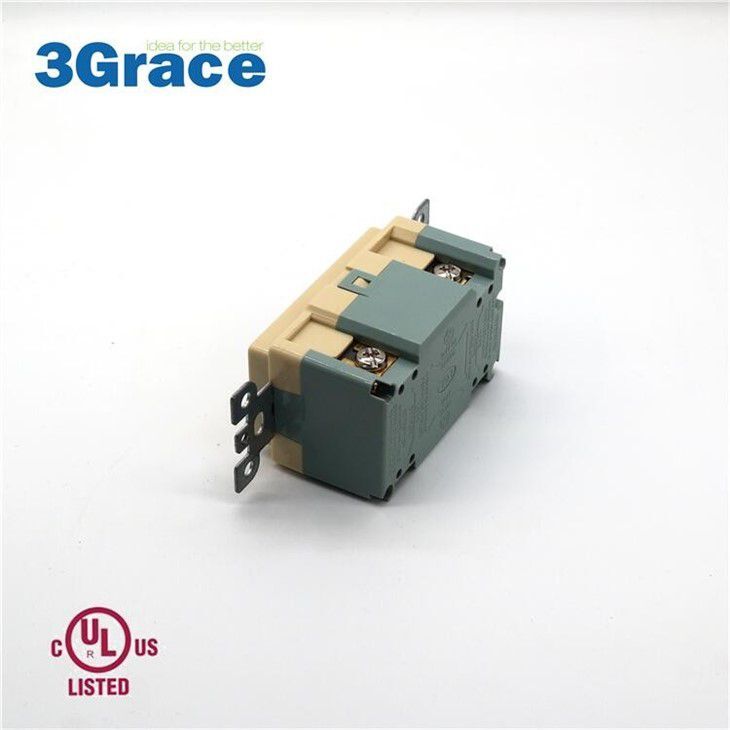

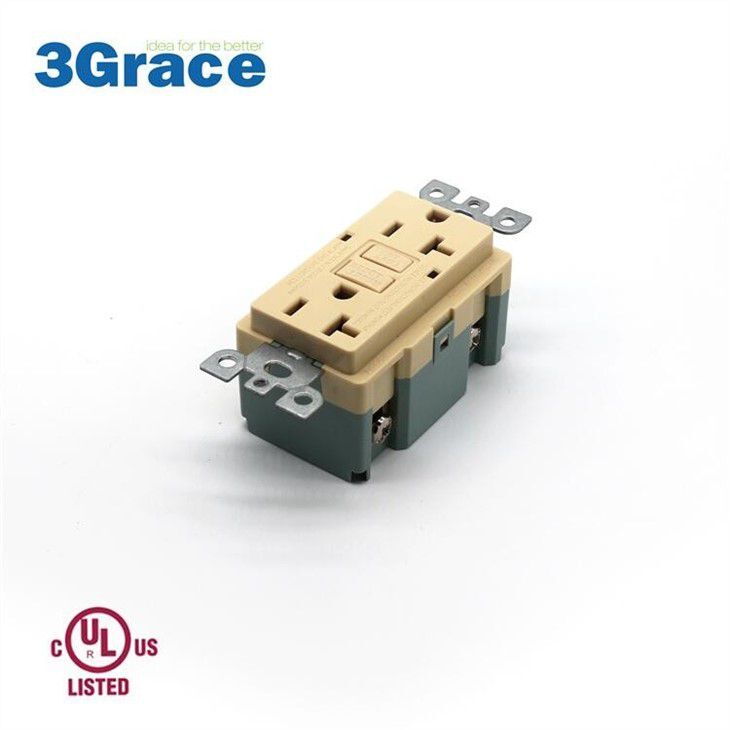

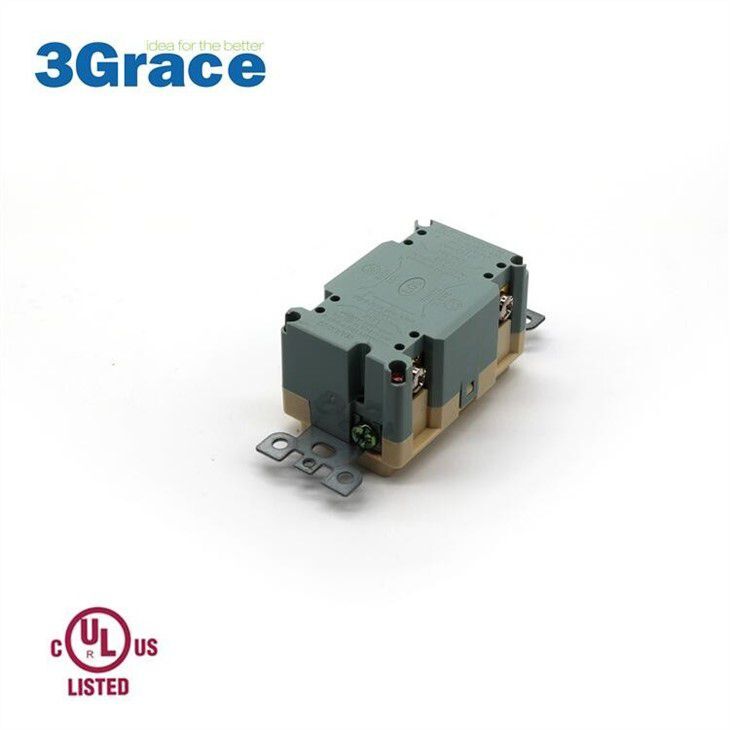

| Picture Example: |
|
A GFCI operates a protection function that monitoring the imbalance of the electricity current in between the circuit’s hot and neutral conductor. Whenever the imbalance detects, the GFCI device will stop the electricity flow within 0.025 seconds to prevent people from electric shock.
Product Specification
| Model: TS20 | |
| Electrical Specifications | |
| Self Testing | Yes |
| Amperage | 20 Amp |
| Rated Voltage | 125 VAC |
| Rated Frequency | 60 Hz |
| Pole | 2 |
| Wire | 3 |
| Grounding | Self Grounding With Grounding Clip |
| Short Circuit Current Rating | 10KA |
| Trip Level | Class A, 6mA plus or minus 4mA |
| Trip Time | <25ms |
| Material Specifications | |
| Body Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
| Face Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
| Terminal Screws | Plated Steel |
| Grounding Screw | Plated Steel |
| Yoke | Zinc-Plated Steel |
| Mechanical Specifications | |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Wire applied | 14-12 AWG |
| Tamper Resistant | No |
| Weather Resistant | No |
| Termination | Back & Side |
| Environmental Specifications | Operating Temperature: -35℃ to +66℃ |
| Applicable Standards | UL/CUL UL498/UL943 5th Edition |
| Warranty | 2-Years |
Our advantage:
1. There is no production processes to be outsource in order to provide customers with the most competitive price.
2. Equiped with Ul approved measurement machines to ensure every product be tested before delivery
3. Professional Team – consist of engineer, production manager, and skillful workers, to serve our customer with better service.
4. with its 20 years manufacturing experience in low voltage electric product filed, the first Chinese GFCI manufacturer.
Product Application:
The 20 Amp Weather Resistant auto trip GFCI Outlet is great to be installed in any potentially wet or damp places. Wet places can make the possibility to dangerous electric shock higher but applying a GFCI receptacle can greatly reduce your risk of injury.
FAQ:
Question: How many wires can a Gfci Outlet take? The youtube video shows max 4 wires + ground. can it work with 6 wires (I got one line set and 2 load sets)?
Answer: Each of the screws has a clamp that will take two wires. So if you use the clamp rather than wrapping around the screw it should work for your application
Question: how many downstream receptacles can it protect?
Answer: Actually As many as the load calculates out to (not exceed 1800W).
Question: would the upstream and downstream gfci in same Amp? If the upstream gfci is 15Amp, would the downstream gfci have to be in 15Amp?
Answer: If you already have an upstream GFCI and it is wired in a correct way, no need a downstream GFCI any more, as a well-wired GFCI protects all downstream circuits.
Packaging:
Below GFCI packaging for your reference
Customized packaging available
Workshop
Trimone is a Chinese GFCI supplier, with more than 20years experience in quality control of GFCI series products , committed to delivering high quality and reliable, safe products with the most competitive price to our customers. Welcome to visit us for a factory tour.
