220V White GFCI receptacle Outlet
Get Latest PricePayment Type: | T/T,Paypal |
Incoterm: | Ocean,Land,Air,Express |
Min. Order: | 1 Piece/Pieces |
Transportation: | Ocean,Land,Air,Express |
Payment Type: | T/T,Paypal |
Incoterm: | Ocean,Land,Air,Express |
Min. Order: | 1 Piece/Pieces |
Transportation: | Ocean,Land,Air,Express |
Model No.: TS15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Rated Current: 220V
Rated Voltage: 15A/20A
keyword: Wall Socket Outlet
Feature:
1. 15A/20A, 220VAC, 60Hz
2. Easy and fast installation for the back&side wires
3. Color: Most colors are workable as well as customized color
4. When there is the leakage current in the circuit which reach into 4-6mA, the receptacle auto-trip
5. Although it’s not UL listed, the quality is solid
6. Instruction manual is available for installation
Specifications:
Input Voltage | 220 V |
Frequency | 60 Hz |
Front Receptacle Current | 15/20Amp |
Pass Through Current | 20 Amp |
Trip Fault Current | 4-6 mA |
Trip Time | 0.025 Seconds |
Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
UL 943 (Meet 2015 requirements) | Class A GFCI |
Accepted Terminal Wire Size | 12 gauge to 14 gauge |
Wiring Type | Rear pressure plate and side wiring |
Flammability | Rated V-2 per UL 943 |
Operating Temperature | -35℃ to 66℃ |
Operating Humidity | 30-93% |

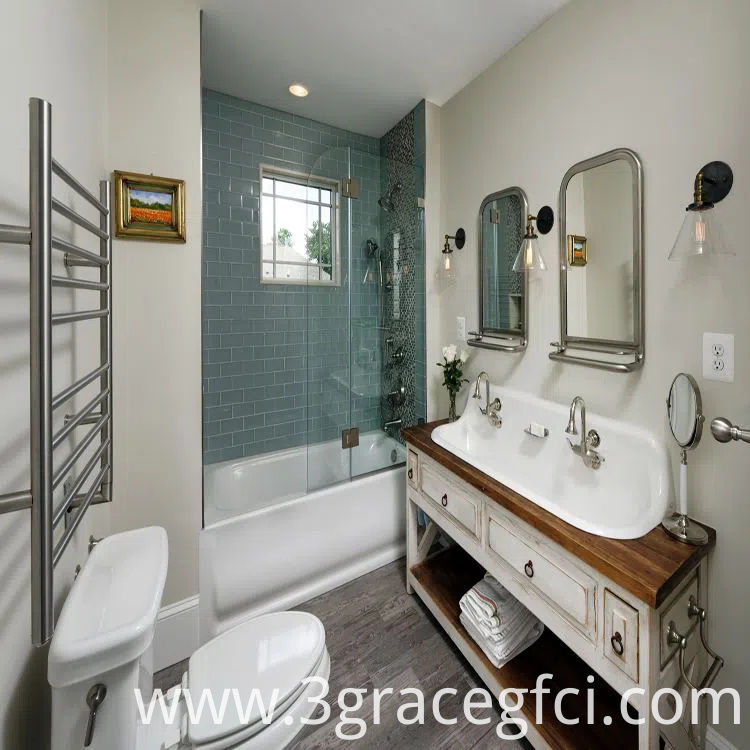

Product Application
Packing&Shipping
Shipping
FAQ:
Q1: What is your company characteristics? Manufacturer or Trading Unit?
A1: Our company is professional GFCI Outlet, Decorative receptacle, USB Charger Outlets and Switch Manufacturer.
Q2: What is your main strength of the electrical products?
A2: Solid product performance and cost effective
Q3: Is there any guarantee of your products?
A3: One year Warranty
Q4: Is your receptacles are easy for installation?
A4: Yes, our receptacles are easy for installation which must be strictly in accordance with steps in the instruction manual.
Q5. Where to Buy your receptacles?
A5: Our customers can contact directly to us, we will provide you a satisfied service and fast delivery across the North America and Central America. Or you can buy directly from our distributors.
Q6: When can get samples ?
A6: It’s depend on customers’ order. For the sample order, generally it is will take 2-5 days after receive the payment. For the Bulk order, it is will take 15-25days after receive the payment.
Who we are:
3Grace, Lishui Trimone Electrical Technology Co.,Ltd., is a manufacturer of ground-fault circuit interrupter(GFCI), Switches, Receptacles, Wall plates and electrical accessories since 2001, We main export our products to United States, Canada, Mexico and Europe.Trimone covers an area of 20,000 square meters with more than 200 employees, housing a wide range of equipment capabilities catering to our production requirements, with an investment of RMB 50,000,000. Our annual sales revenue exceeds RMB 160 million.
Trimone always value new products development and technological innovation. We take pride in our continuous functional improvement on our safe lock and reverse miswiring protection function protection function than have acquired Chinese invention Patents and Utility Patents. In 2006, we invented a new version of GFCI with auto-monitoring and end-of-life indication function that complied with UL standard of the US and CUL standard of Canada. In 2015, we upgraded the GFCI with regular self-test function based on latest UL943 standard, which better protect the safety of our users. All our GFCI products are UL and CUL certified (No. E473989) which makes them eligible for United States and Canada markets.
In 2018, we got official United Stated Patent Named Circuit protection Device with automatic fault monitoring and detection function and United Stated Patent Named electrical circuit protection device for leakage current protection with the patent number 9906014 & 9906012. Moreover we got the Chinese Innovation Patent named A KIND OF MONITORING FUNCTION OPERATING FAULT CIRCUIT PROTECTION DEVICE with the patent No. ZL 2016 1 0339793.9 in Year 2018.
We are located in the Shuige Economic Development Zone, Liandu District, Lishui City Zhejiang, 10KM from Lishui high-speed railway station. If you want to know more about us, welcome to visit us.
