Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TS15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Model: TS15
Certification: UL
Customized: Support
OEM/ODM: Yes
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Feature:
1. Input:15A/20A, 125VAC, 60Hz Input
2. Miswiring Function
3. Colors- White, Ivory, Almond, Brown, Gray, Black，Red/Black/Blue/White button (or at your option) or customized color
4. TR-tamper resistant.
5. Self-Test Function – Auto-Monitoring Function Test Repeat Test Interval every 1-10 minutes to make sure it can respond to a ground fault
6. Warranty – 1 year after Delivery
Specifications:
| Input Voltage | 125 V |
| Frequency | 60 Hz |
| Front Receptacle Current | 15 Amp |
| Pass Through Current | 20 Amp |
| Trip Fault Current | 4-6 mA |
| Trip Time | 25ms |
| Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
| Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
| Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
| UL 943 (Meet 2015 requirements) | Class A GFCI |
| Accepted Terminal Wire Size | 12 gauge to 14 gauge |
| Wiring Type | Rear pressure plate and side wiring |
| Flammability | Rated V-2 per UL 943 |
| Operating Temperature | -35℃ to 66℃ |
| Operating Humidity | 30-93% |

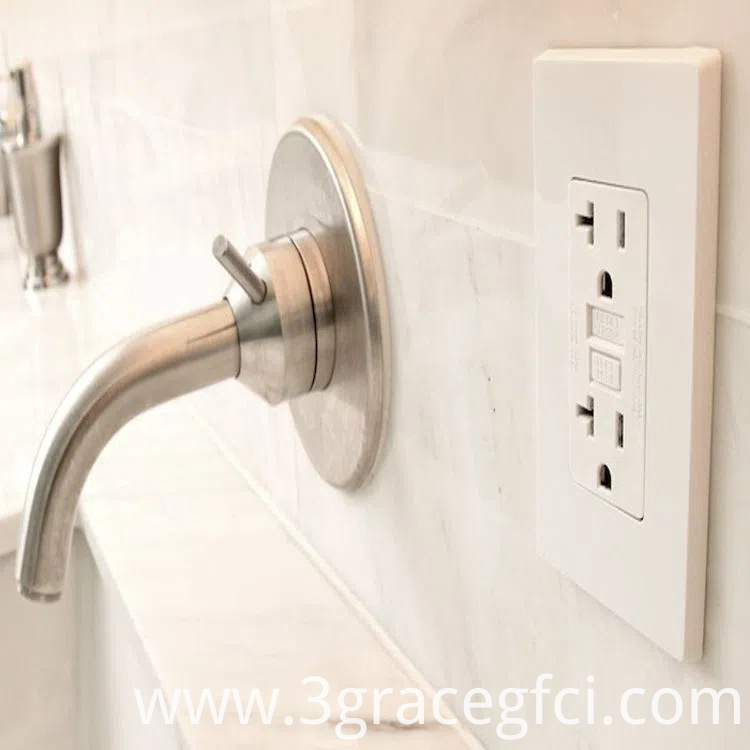

Product Application
Packing&Shipping
Shipping
FAQ:
Q1: Are you the On-line shop only?
A1: We are professional GFCI Outlet, Decorative receptacle, USB Charger Outlets and Switch Manufacturer.
Q2： What is your terms of payment?
A2: 50% prepay and balance 50% Prior to Shipping
Q3: What certificate do you have?
A3: All of our products are UL&CUL approved with UL File Number E473989
Q4: Do you provide samples? Is it free or extra charge?
A4： According our company’s rule, the sample&shipping costs are paid by our customers.
Q5. How to get a sample ?
A5: Confirm the model & cost--make full payment---prepare samples---delivery parcel---Got samples!
Q6: How Long is the delivery time?
A6: It’s depend on customers’ order. For the sample order, generally it is will take 2-5 days after receive the payment. For the Bulk order, it is will take 15-25days after receive the payment.
About us:
Lishui Trimone Electrical Technology Co.,Ltd., is a Professional manufacturer of ground-fault circuit interrupter(GFCI), Switches, Receptacles, Wall plates and electrical accessories since 2001, We mainly export our receptacles to United States, Canada, Mexico and other Central and Southern American Countries.Trimone covers an area of 20,000 square meters Factory Building with more than 200 employees, housing a wide range of equipment capabilities catering to our production requirements, with an investment of RMB 50,000,000. Our annual sales revenue exceeds RMB 160 million.
Trimone always value new products development and technological innovation. We take pride in our continuous functional improvement on our safe lock and reverse miswiring protection function protection function than have acquired Chinese invention Patents and Utility Patents. In 2006, we invented a new version of GFCI with auto-monitoring and end-of-life indication function that complied with UL standard of the US and CUL standard of Canada. In 2015, we upgraded the GFCI with regular self-test function based on latest UL943 standard, which better protect the safety of our users. All our GFCI products are UL and CUL certified (No. E473989) which makes them eligible for United States and Canada markets.
In 2018, we got official United Stated Patent Named Circuit protection Device with automatic fault monitoring and detection function and United Stated Patent Named electrical circuit protection device for leakage current protection with the patent number 9906014 & 9906012. Moreover we got the Chinese Innovation Patent named A KIND OF MONITORING FUNCTION OPERATING FAULT CIRCUIT PROTECTION DEVICE with the patent No. ZL 2016 1 0339793.9 in Year 2018.
We are located in the Shuige Economic Development Zone, Liandu District, Lishui City Zhejiang, 10KM from Lishui high-speed railway station. If you want to know more about us, welcome to visit us.
