Home> Products> GFCI> GFCI Outlet> Self-Test GFCI Receptacle With TR WR UL2015

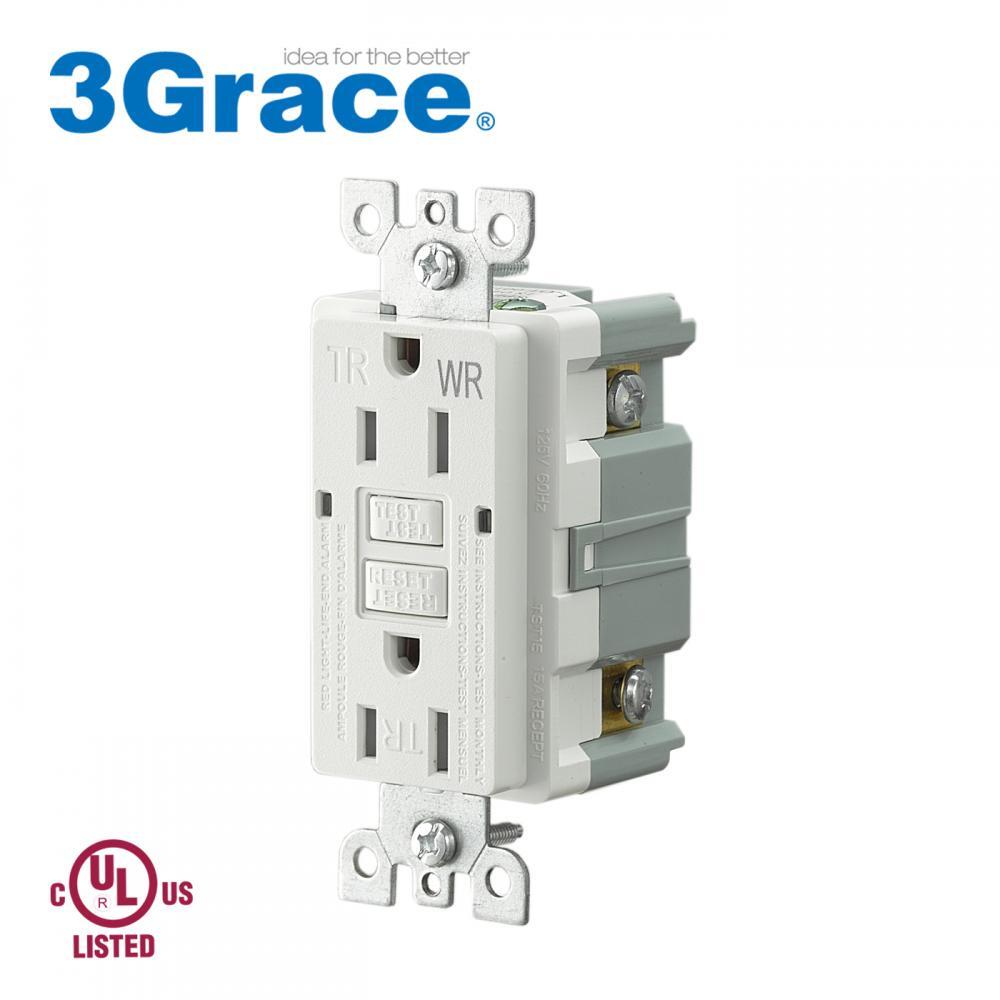

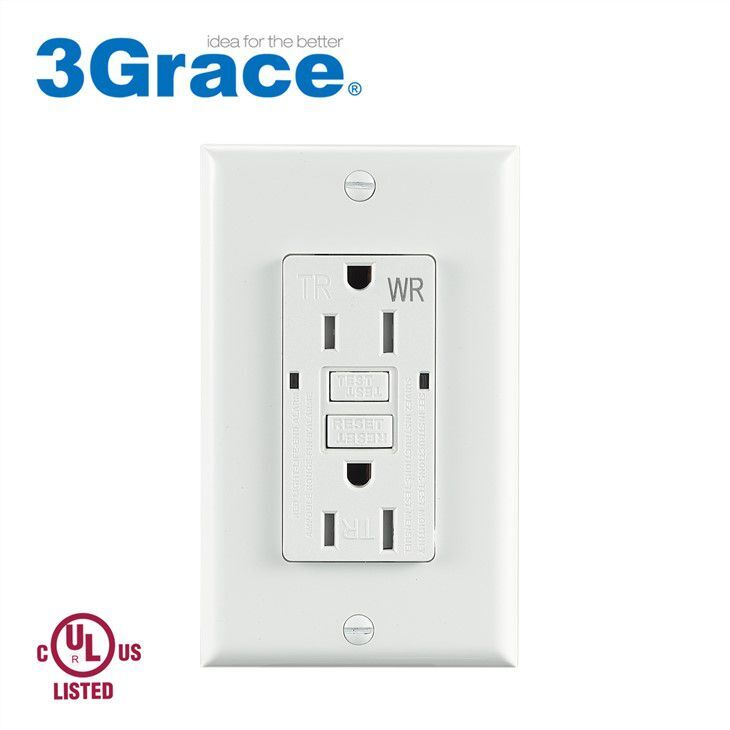

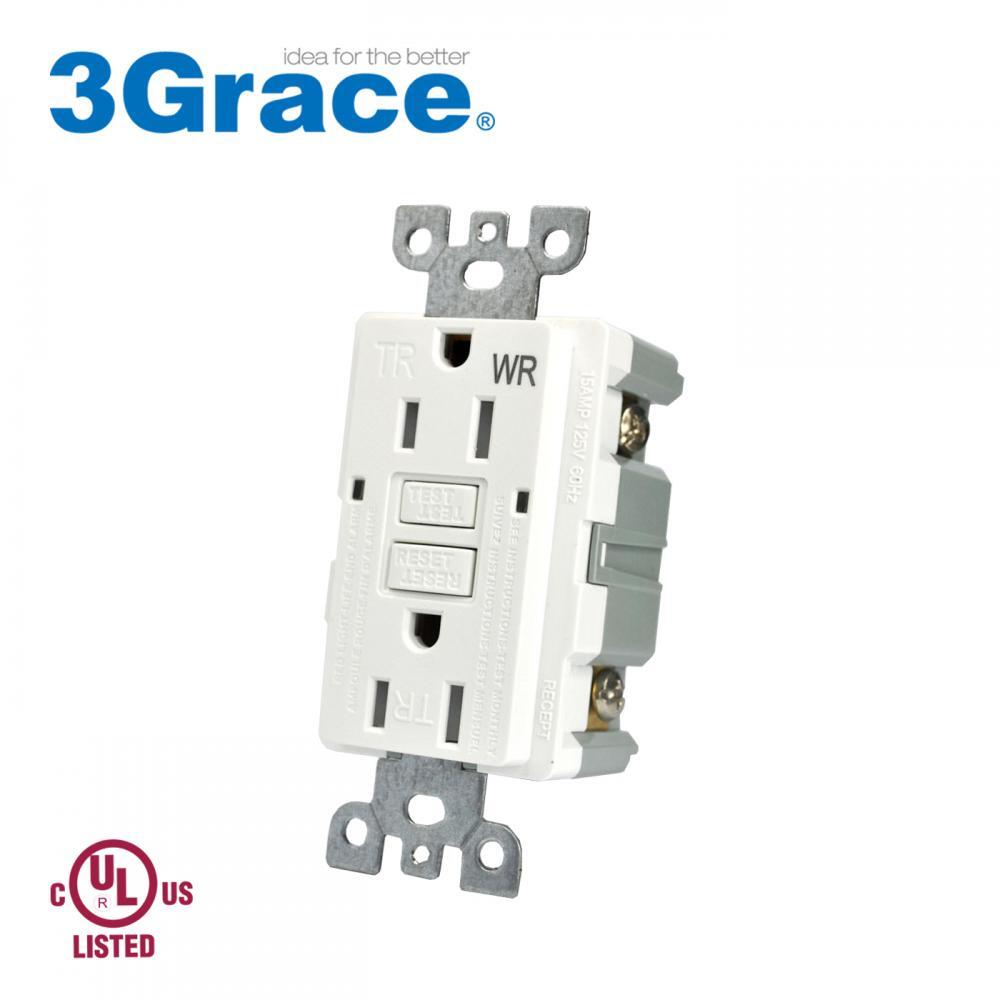

Self-Test GFCI Receptacle With TR WR UL2015
Self-Test GFCI Receptacle With TR WR UL2015
Self-Test GFCI Receptacle With TR WR UL2015

Self-Test GFCI Receptacle With TR WR UL2015

Get Latest Price$4.1-4.5 /Piece/Pieces
Payment Type: T/T,Paypal
Incoterm: Ocean,Land,Air,Express
Min. Order: 1 Piece/Pieces
Transportation: Ocean,Land,Air,Express
Standard Classification of Plugs:
US
Product Attributes

Model No.WTST15

Brand3 Grace

warranty period3months-1year

Custom processingYes

place of originChina

Chassis styleWall Socket

Scope of applicationIndustrial, Commercial, Hospital, Residential / General-Purpose

GroundedGfci

CertificationUL

Operating Humidity30-93%

MaterialPC+copper

Current120V AC

Auto-Monitoring Function1s

OperatingTemperature-35℃ to 66℃

Trip Time0.0255s

Flamma bilityRated V-2 per UL 943

size105*44.6*42.6mm

Weight123.5g(without wallplate)

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized
Picture Example:
Product Description

Product Specification


Feature Self-Test

Amperage

15 Amp

Voltage

125 Volt
NEMA 5-15R

Pole

2

Wire

3

Termination

Back & Side

Grounding

Self Grounding

Grade

Residential
Certification UL & CUL
Warranty 1 year

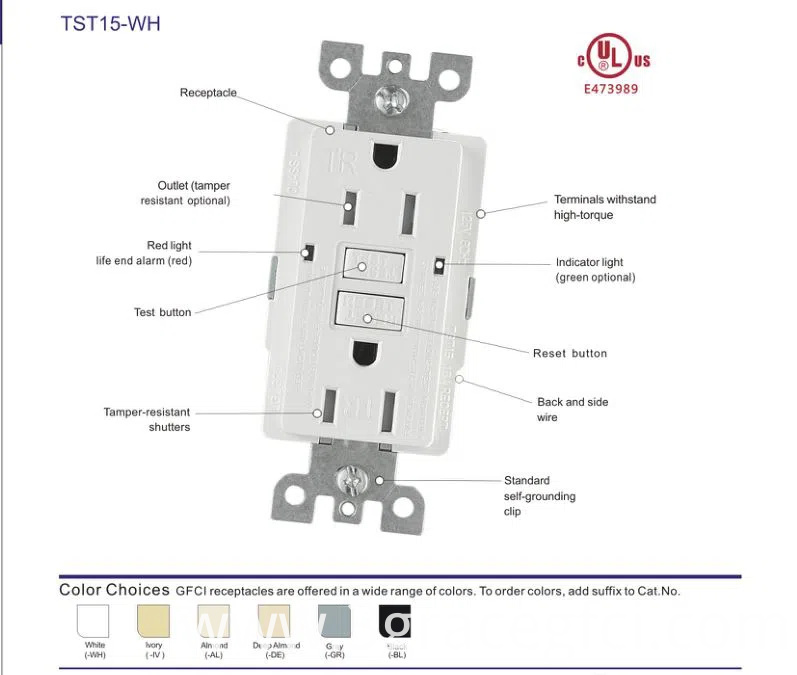

Product Details

TST15-

Our Service


1. Pre-sale service

A. Free response for the customer’s technology enquiry

B. Supply the sample, catalog , certificate etc messages for the customer

C. Invite the user visit our factory’s production line and testing and hearing their suggestions

D. According user’s technical parameters, picture, help them choose the product model

2. In Sale service

A. Invite the user’s technicians visit our factory and observe every process of production testing, and supply the testing standard and result to them.

B. Take the detail pictures or video for each order before delivery goods

3. After-sales service

A. Support free installation guidance through pictures or video

B. Free repair for quality problem products within warranty period

C. Warranty: 12 months since dispatch the goods



Hot Tags: self-test led indicators gfci receptacle, China, suppliers, manufacturers, factory, price, 1 Gang Toggle Switch Plate, Self Testing GFI Outlet 15Amp, 15 Amp Light Almond Self Test GFCI Outlet, Slef Testing Blank Face GFCI, 2 Gang Receptacle Wall Plate, Ivory Decorative Duplex Receptacle
Other
Company Overview
3Grace, Lishui Trimone Electrical Technology Co.,Ltd., is a manufacturer of ground-fault circuit interrupter(GFCI), USB charger, Switches, Receptacles, Wall plates and electrical accessories since 2001, We main export our products to United States, Canada, Mexico and Europe.Trimone covers an area of 20,000 square meters with more than 200 employees, housing a wide range of equipment capabilities catering to our production requirements, with an investment of RMB 50,000,000. Our annual sales revenue exceeds RMB 160 million. Trimone always value new products development and technological innovation. We take pride in our continuous functional improvement on our safe lock and reverse miswiring protection function than have acquired Chinese invention Patents and Utility Patents. In 2006, we invented a new version of GFCI with auto-monitoring and end-of-life indication function that complied with UL standard of the US and CUL standard of Canada. In 2015, we upgraded the GFCI with regular self-test function based on latest UL943 standard, which better protect the safety of our users. All our GFCI products are UL and CUL certified (No. E473989) and ETL certified( File No.5023317 ) which makes them eligible for United States and Canada, Mexico and Europe markets. In 2018, we got official United Stated Patent Named Circuit protection Device with automatic fault monitoring and detection function and United Stated Patent Named electrical circuit protection device for leakage current protection with the patent number 9906014 & 9906012. Moreover we got the Chinese Innovation Patent named A KIND OF MONITORING FUNCTION OPERATING FAULT CIRCUIT PROTECTION DEVICE with the patent No. ZL 2016 1 0339793.9 in Year 2018. We are located in the Shuige Economic Development Zone, Liandu District, Lishui City Zhejiang, 10KM from Lishui high-speed railway station. If you want to know more about us, welcome to visit us.
