Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Product name: 15A Auto Test GFCI outlet
Color: White
Voltage: 125v
Frequency: 60Hz
GFCI Size: 105*45*43mm
GFCI weight: 124g
Wire Size: 12-14AWG
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |

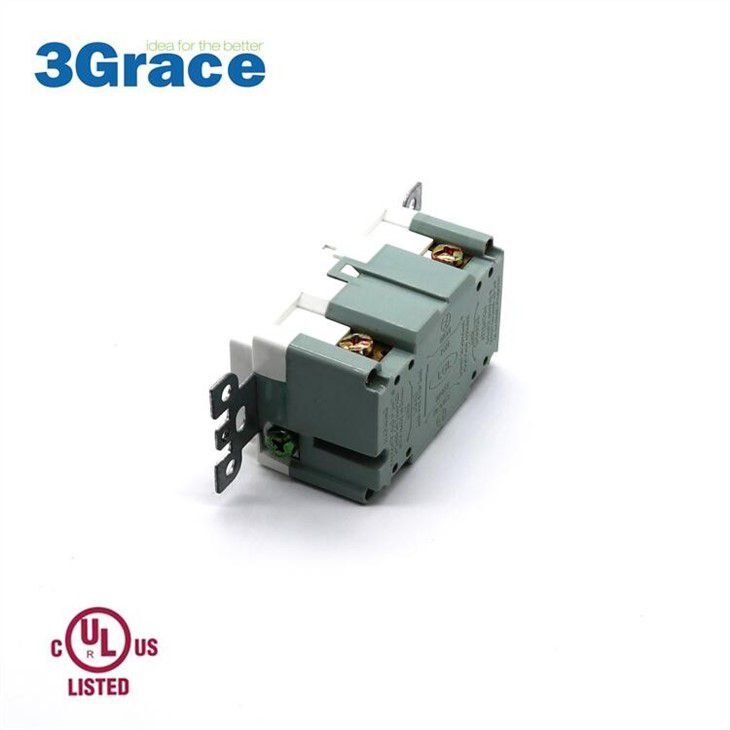

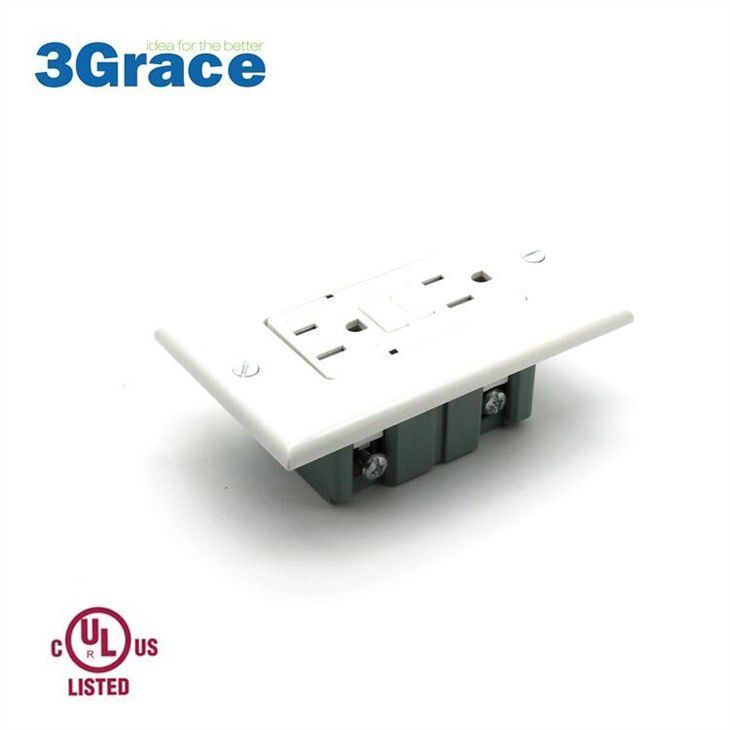

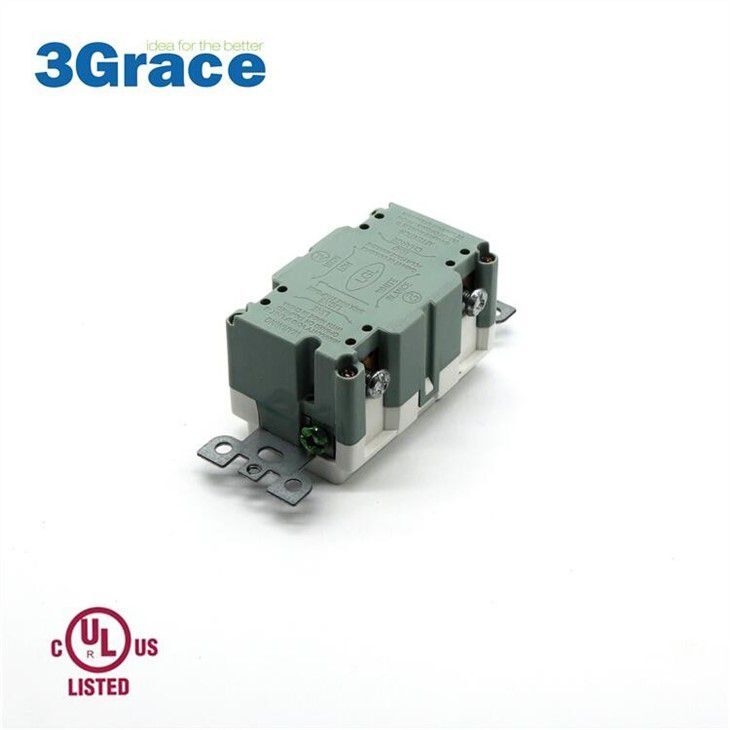

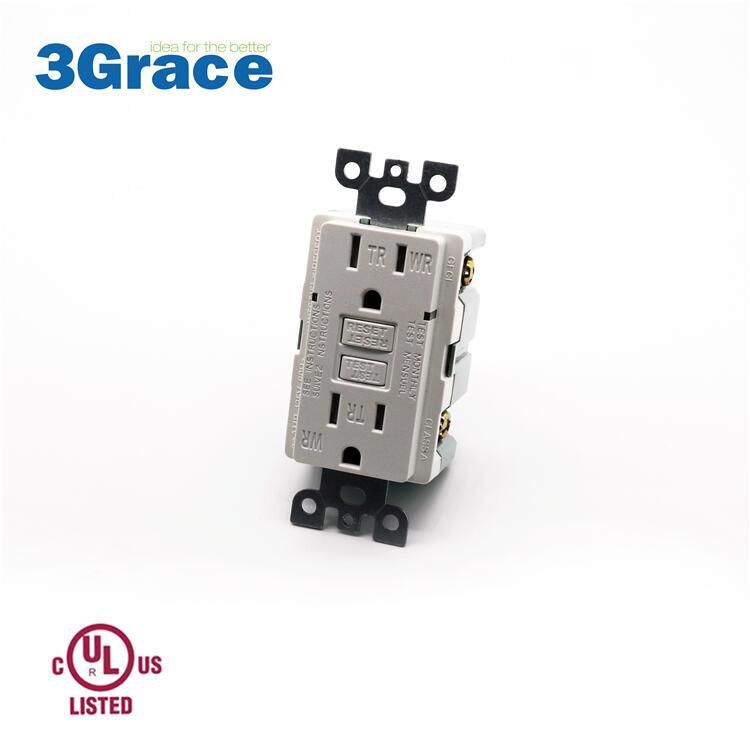

| Picture Example: |
|
In response to the market needs and customer requirements, Trimone's R & D Team developed a new GFCi Series. The new designed series are also complies to the latest UL standard, with a buit-in lone-load reversal feature, self-testing function, tamper & whether resistant etc. The new designed GFCI receptacle offers more choice for end user.
Product Specification
| Model: WTST15L | |
| Electrical Specifications | |
| Self Testing | Yes |
| Amperage | 15 Amp |
| Rated Voltage | 125 VAC |
| Rated Frequency | 60 Hz |
| Pole | 2 |
| Wire | 3 |
| Grounding | Self Grounding With Grounding Clip |
| Short Circuit Current Rating | 10KA |
| Trip Level | Class A, 6mA plus or minus 4mA |
| Trip Time | <25ms |
| Material Specifications | |
| Body Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
| Face Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
| Terminal Screws | Plated Steel |
| Grounding Screw | Plated Steel |
| Yoke | Zinc-Plated Steel |
| Mechanical Specifications | |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Wire applied | 14-12 AWG |
| Tamper Resistant | Yes |
| Weather Resistant | Yes |
| Termination | Back & Side |
| Environmental Specifications | Operating Temperature: -35℃ to +66℃ |
| Applicable Standards | UL/CUL UL498/UL943 |
| Warranty | 2-Years |
GFCI Features:
1. The new designed GFCI receptacle provides a automatic self-test, which conducts every 1-10 minutes to make sure it can respond to a ground fault.
2. The 15A new designed GFCI Outlet provides a End-of-Life Monitoring function that the red LED light will turn on immediately if GFCI receptacle displays alarm during operation, this is a reminder to end user that the GFCI device is in it’s end-of-life and have to be replaced.
3. This 15Amp new designed TR receptacle also provides with Tamper Resistant function to prevent children from electrocution when using any foreign body to contact the alive parts of the ground fault circuit interrupter.
4. The Trimone new designed 15Amp Gfci Outlet provides with Weather Resistant which is great for humid & outdoor places.
5. It is UL certified - meets latest UL943 standard.
Product Application:
The new designed GFCI series are great to be installed in any potentially wet or damp places, where can make the possibility to dangerous electric shock higher but applying a GFCI receptacle can greatly reduce your risk of injury.
FAQ:
Question: Why perform the Self-test?
Answer: Dear Customer, If you mis-wire a GFCI, it can not be reset, the green indicator LED will be on, by which it may prevent personal injury or death due to a ground fault (electrical shock). If you mistakenly connect the LINE wire to the LOAD terminals, it will not provide power to either the GFCI outlet its self or the load terminal fed through the GFCI.
Question: If the upstream gfci is 15Amp, would the downstream gfci have to be in 15Amp?
Answer: If you already have an upstream GFCI and it is wired in a correct way, no need a downstream GFCI any more, as a well-wired GFCI protects all downstream circuits.
Packaging:
Below GFCI packaging for your reference
Customized packaging available
Quality Control
What manufacturer and consumer consider most about of a merchandise is its quality. Trimone have taken great importance to the quality control to make our products reliable. The new designed 15Amp gfci outlet is functioning with Tamper resistant and Whether resistant, in spite of this, all GFCI outlet have done 100% tested by UL approved testing system to make sure every outgoing product with good quality.
