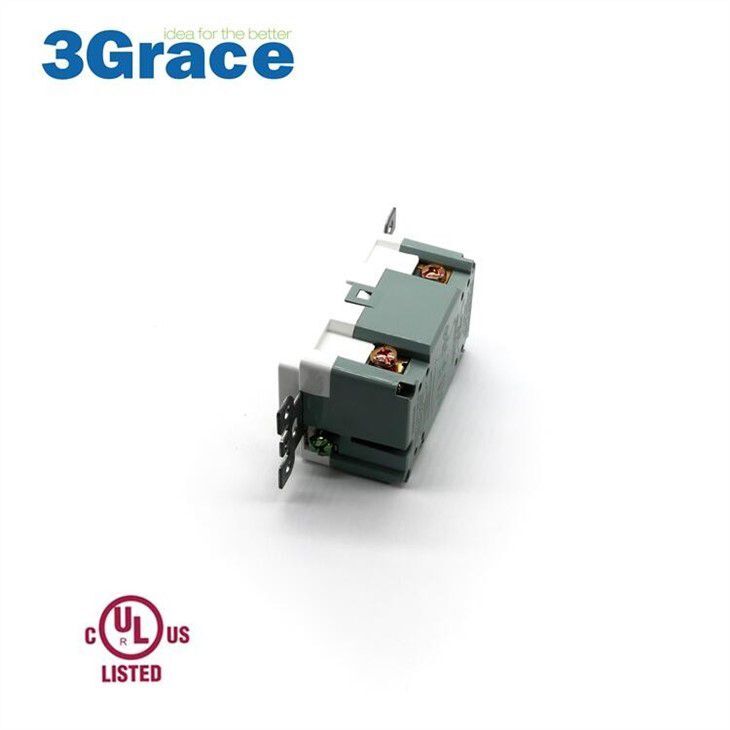

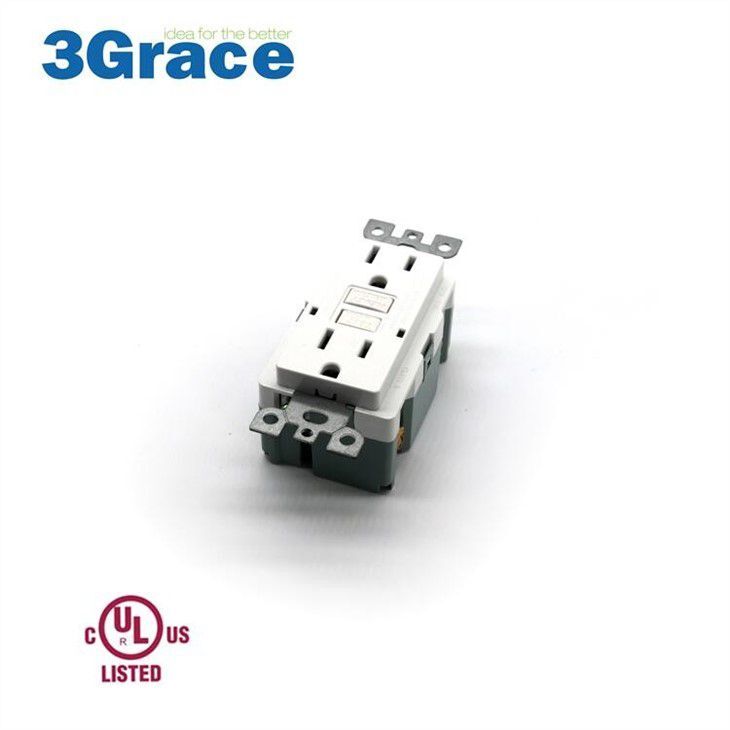

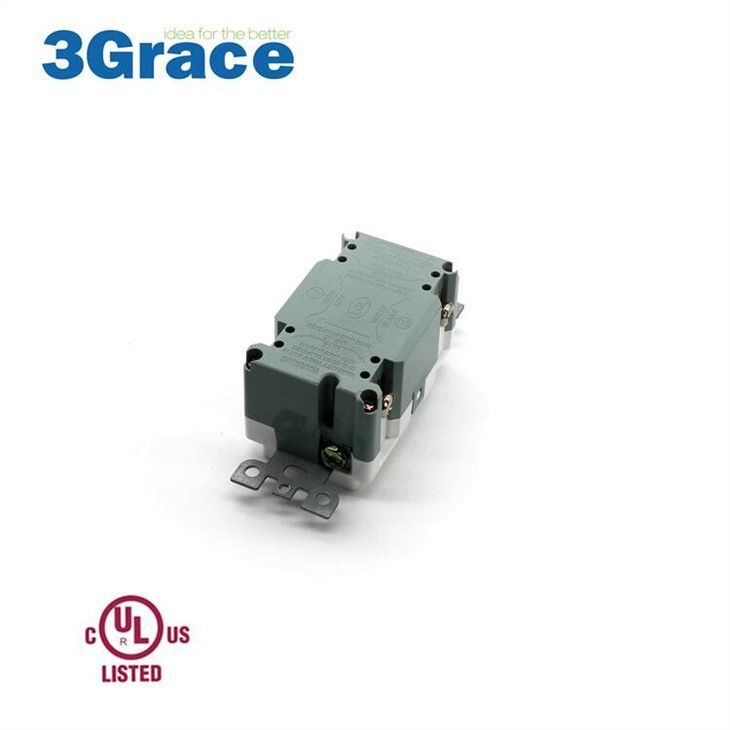

15 Amp Self Testing GFCI Breaker
Get Latest Price| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Zhejiang Trimone Technology Co., Ltd
Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TS15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose

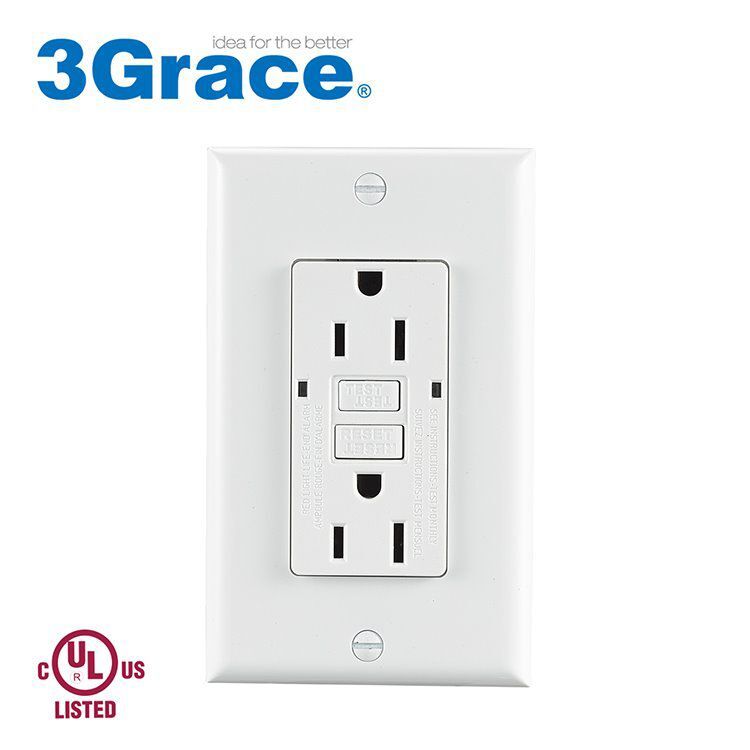

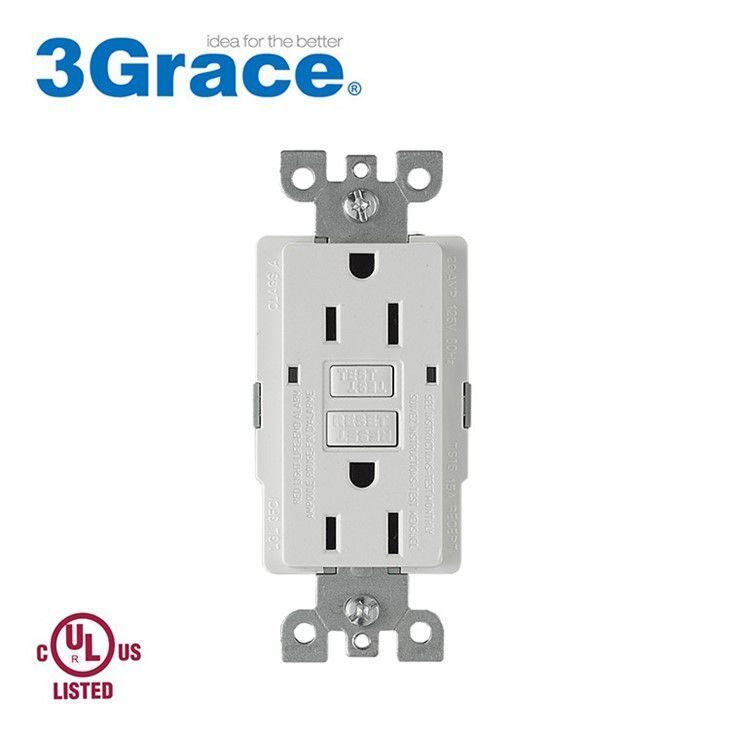

Product name: GFCI duplex receptacle
Material: PC+Copper
Color: White
Logo: Accept OEM
Package: Color Box
Style: wall socket
Standard: U L943
Plug type: USA 3 Pin
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Feature:
1. Self-Testing Function – GFCI operates automatic self-test every 1-10 minutes to make sure it can respond to a ground fault
2. End-of-Life Monitoring – If RED lights turn on immediately GFCI displays alarm during operation, reminding user the GFCI reaches end-of-life and must be replaced
3. UL listed – meets UL943 standard
4. Colors- White, Ivory, Almond, Deep Almond, Gray, Black or customized color
5. Warranty – limited warranty of 1 year.
6. UL&CUL File No.: E 473989
Specifications:
Input Voltage | 125 V |
Frequency | 60 Hz |
Front Receptacle Current | 15 Amp |
Pass Through Current | 20 Amp |
Trip Fault Current | 4-6 mA |
Trip Time | 0.025 Seconds |
Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
UL 943 (Meet 2015 requirements) | Class A GFCI |
Accepted Terminal Wire Size | 12 gauge to 14 gauge |
Wiring Type | Rear pressure plate and side wiring |
Flammability | Rated V-2 per UL 943 |
Operating Temperature | -35℃ to 66℃ |
Operating Humidity | 30-93% |
Product Application
Packing&Shipping
Shipping
FAQ:
Q1: Are you factory or trading company?
A1: We are professional GFCI Outlet, receptacle, USB Charger receptacle and Wall Plate factory.
Q2: What is your terms of payment?
A2: 30% prepay and balance 70% before shipment.
Q3: What certificate you have?
A3: All of our products are UL&CUL approved.
Q4: Do you provide samples? Is it free or extra charge?
A4: According our company’s policy, the customer should pay the sample cost and freight cost for the samples.
Q5. How to get a sample ?
A5: Confirm the model & cost--make payment---prepare samples---delivery parcel---Got samples!
Q6: How Long is your delivery time?
A6: It’s depend on your order. For the sample, generally it is will take 2-5 days after receive the payment. For the Bulk order, it is will take 15-25days after receive the payment.
Certifications
We got both Chinese and United State patent, such as we got official United Stated Patent Named Circuit protection Device with automatic fault monitoring detection function in 2018 and United Stated Patent Named electrical circuit protection device for leakage current protection with the patent number 9906014 & 9906012. Moreover we got the Chinese Innovation Patent named A KIND OF MONITORING FUNCTION OPERATING FAULT CIRCUIT PROTECTION DEVICE with the patent No. ZL 2016 1 0339793.9 in Year 2018.
