Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST15
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Features
1. 20A, 125VAC, 60Hz feed through
2. Side and back wired
3. Prevent Electrical Shock by accidental, prevent electrical fires

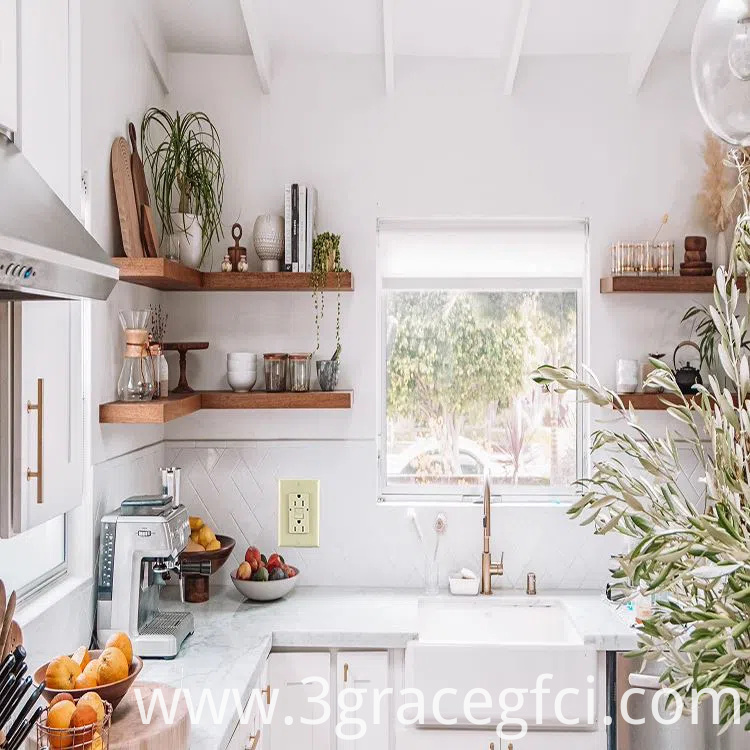

4. Suitable for a variety of occasions, such as kitchens, bathrooms, garages, basements, laundry room etc wet locations.
Advantage
1. Professional original factory, 20 years focus on manufacturing GFCI Outlet experiences
2. Trimone owned professional technician and trained worker, strong production capacity, 10000pcs finished Gfci Outlet and cover plate per day
3. Green indicator light and life end alarm with red indicator light
4. Trimone GFCI outlet will be tripped when fault current reach to 4-6mA which will protect human safety.
Specifications
| Input Voltage | 125 V |
| Frequency | 60 Hz |
| Front Receptacle Current | 20 Amp |
| Pass Through Current | 20 Amp |
| Trip Fault Current | 4-6 mA |
| Trip Time | 0.025 Seconds |
| Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
| Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
| Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
| UL 943 (Meet 2015 requirements) | Class A GFCI |
| Accepted Terminal Wire Size | 12 gauge to 14 gauge |
| Wiring Type | Rear pressure plate and side wiring |
| Flammability | Rated V-2 per UL 943 |
| Operating Temperature | -35℃ to 66℃ |
| Operating Humidity | 30-93% |
Application
Packing
Shipping
FAQ
Q1: Are you factory or trading company?
A1: We are professional GFCI outlet, receptacle, USB Charger receptacle and Wall Plate factory.
Q2: What is your terms of payment?
A2: 30% prepay and balance 70% before shipment.
Q3: What certificate you have?
A3: All of our products are UL&CUL approved.
Q4: Do you provide samples? Is it free or extra charge?
A4: According our company’s policy, the customer should pay the sample cost and freight cost for the samples.
