15A GFCI Duplex Tamper Resistant Receptacle
Get Latest Price$4.5-13.9 /Piece/Pieces| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Zhejiang Trimone Technology Co., Ltd
Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|

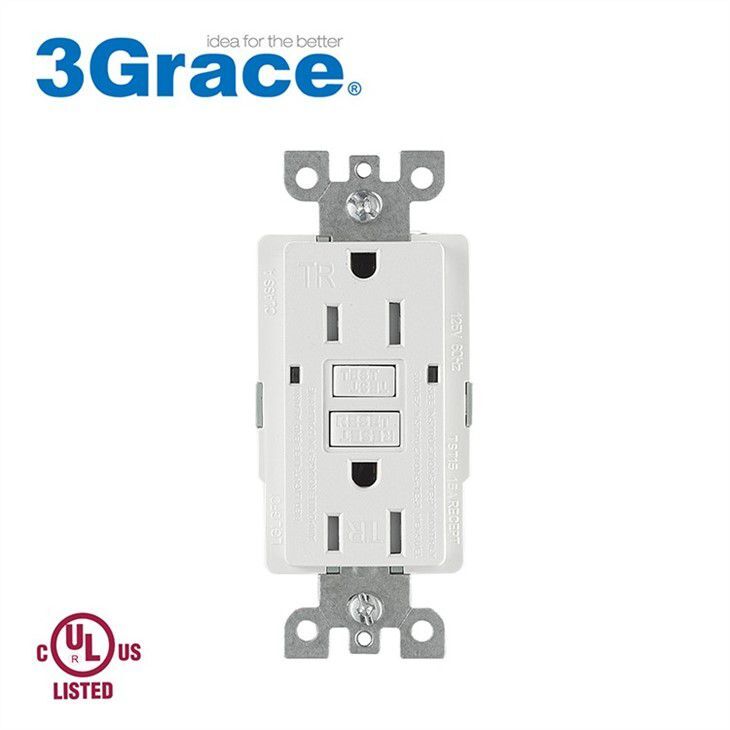

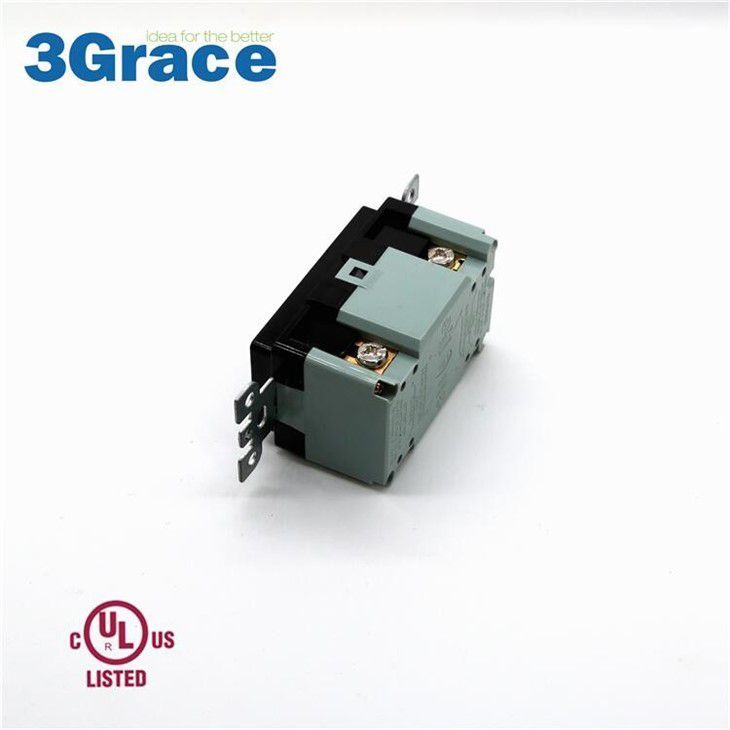

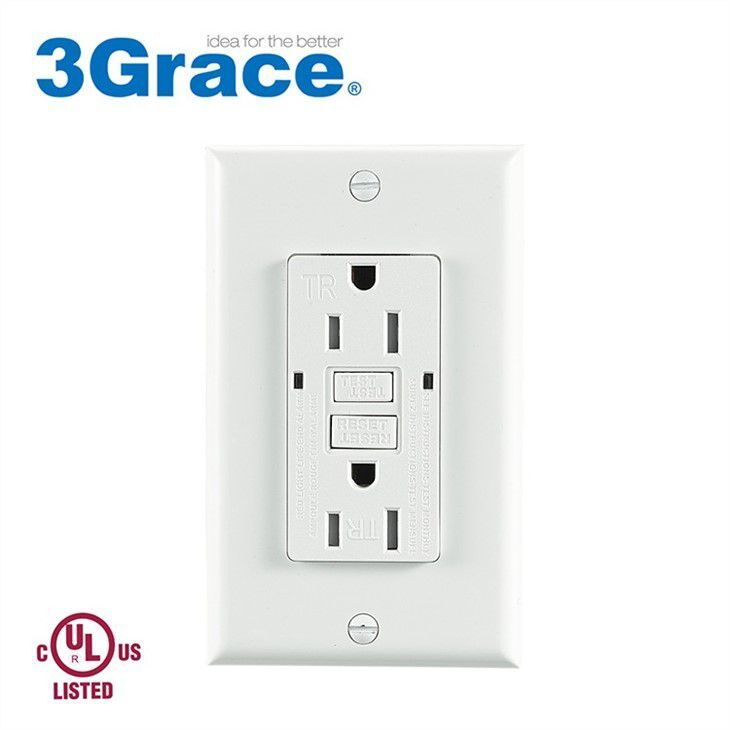

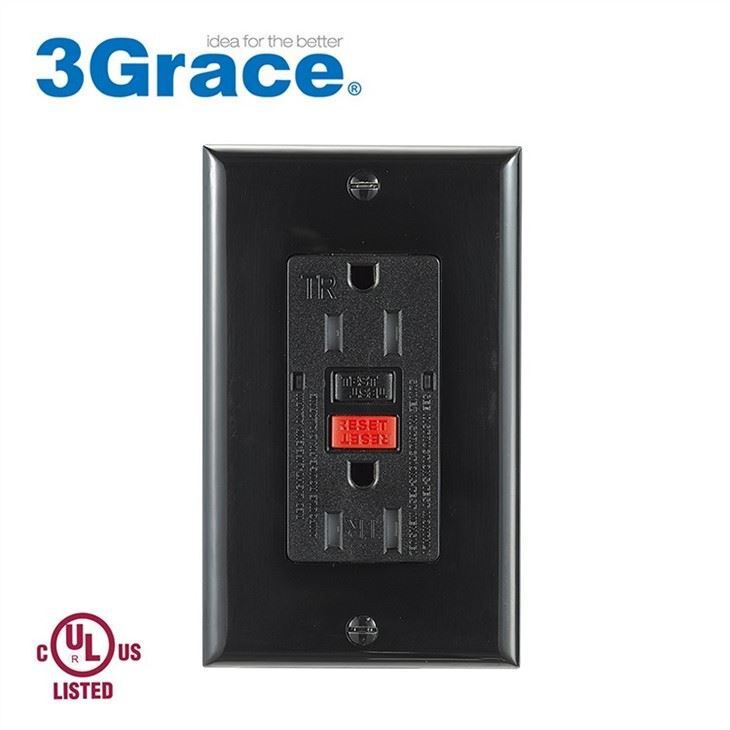

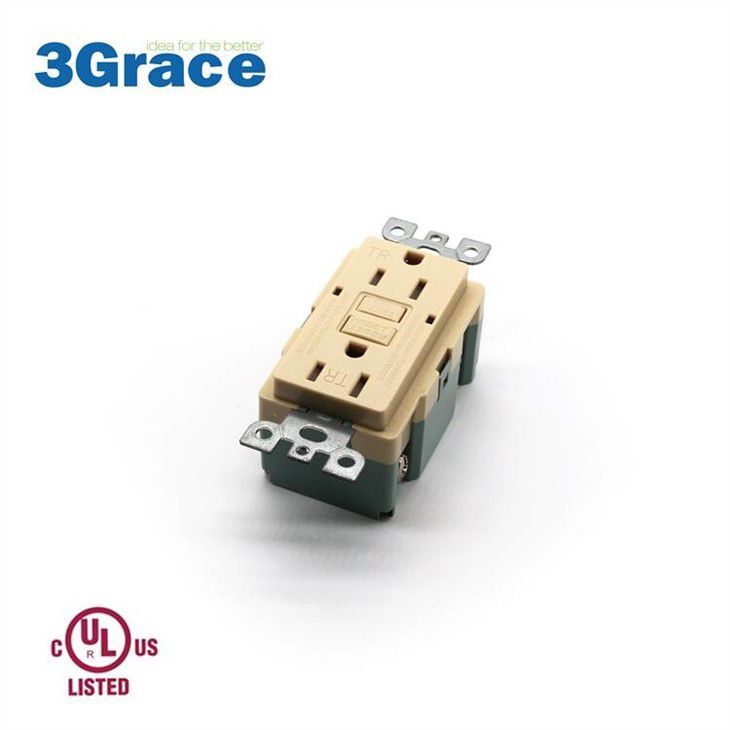

3Grace GFCI Outlet Futures
1. 3Grace GFCI is UL Listed, with Self Testing function. Electrical Rated 15A 125V 2500W, Meets or exceed UL943 2015 standard. Conform with National Electric Code (NEC) requirements.
2. Tamper-Resistant Gfci Outlet: Tamper-resistant shutter safety mechanism blocks access to power unless a plug is inserted, providing an extra layer of safety in households with children.
3. Provides protection from electrical shocks that might occur from faulty appliances in damp locations. Device detects and trips on ground faults within 1/40 of a second
4. Easy Installation: New modern design for easier and quicker installation in shallow electrical boxes. Terminals allow for easy wiring options. Back and side wire capable.
Specifications:
Brand | 3Grace |
Model | TST15 |
Electrical Rating | 125 V, 15A, 2500W |
Color | Black, Ivory, White are available |
Trip Time | 1/40 Seconds |
Accepted Terminal Wire Size | 12 AWG to 14 AWG |
Flammability | Rated V-2 per UL 943 |
Operating Temperature | -35℃ to 66℃ |
Operating Humidity | 30-93% |
GFCI Size | 105*44.6*42.6 mm |
Weight | 123.5 g |
Standard | UL Listed |
Warranty | 12 months |

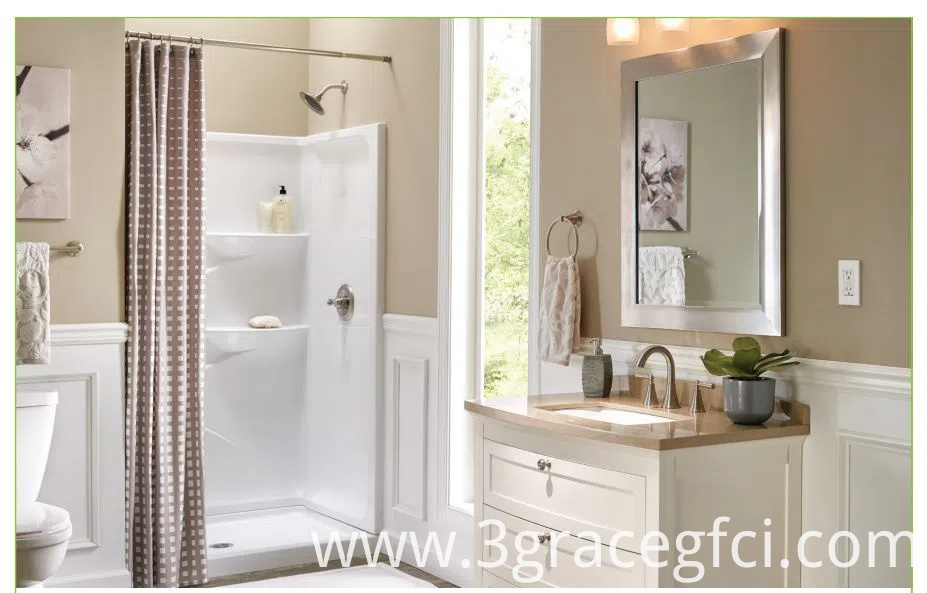

Application Show
