Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Input Voltage: 110V
Frequency: 60Hz
Trip Fault Current: 4-6mA

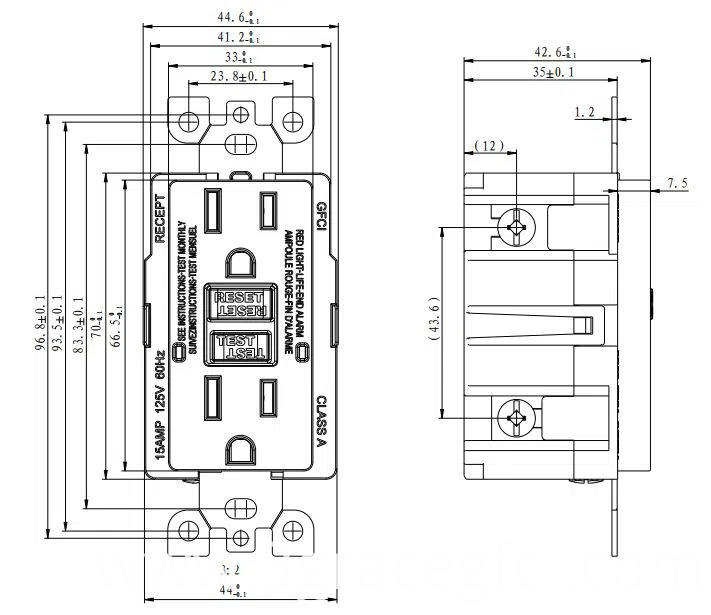

GFCI size: 105*44.6*42.6mm
GFCI weight: 123.5g
Function: Auto Test
Color: White, Black, Ivory
UL 943 (Meet 2015 requirements): Class A GFCI
Accepted Terminal Wire Size: 12-14AWG
Flammability: Rated V-2 per UL 943
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|

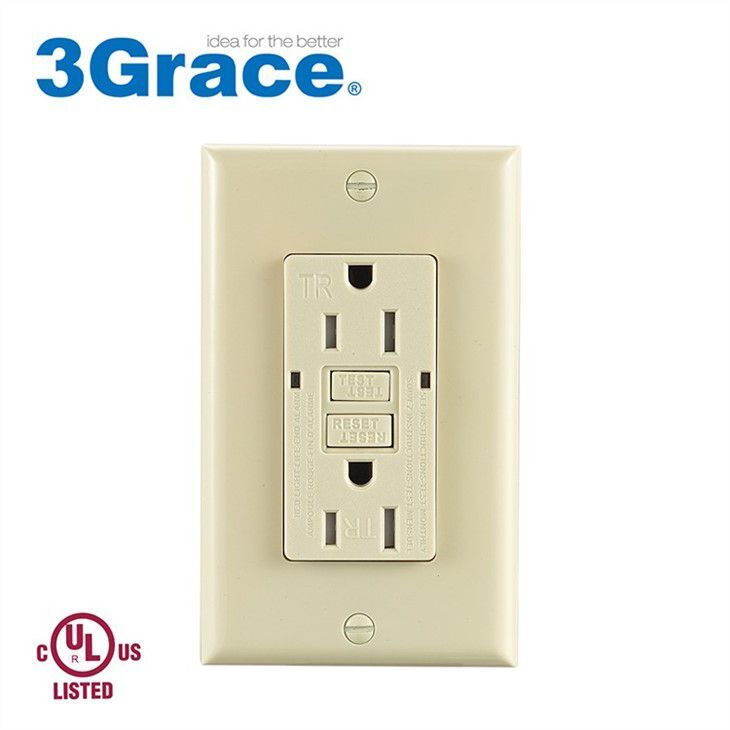

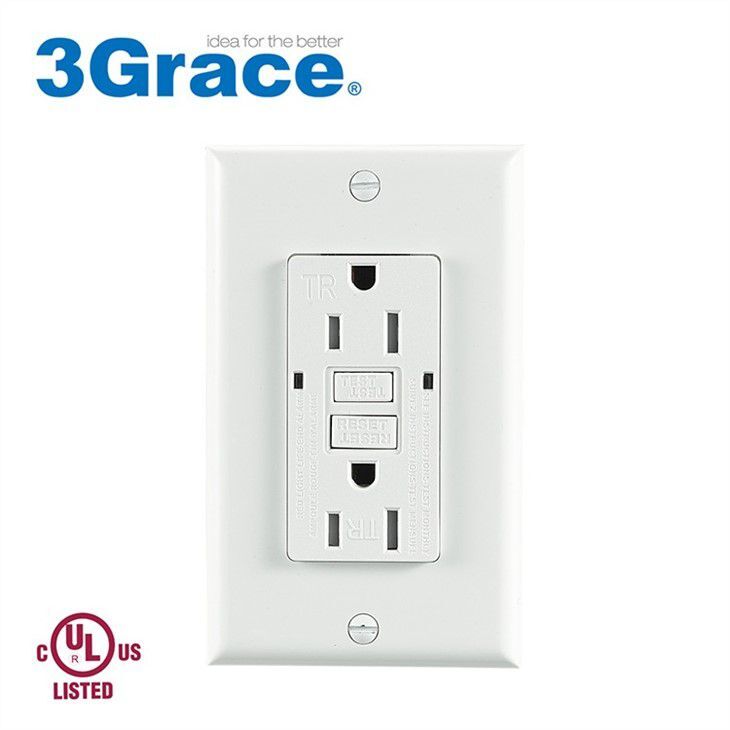

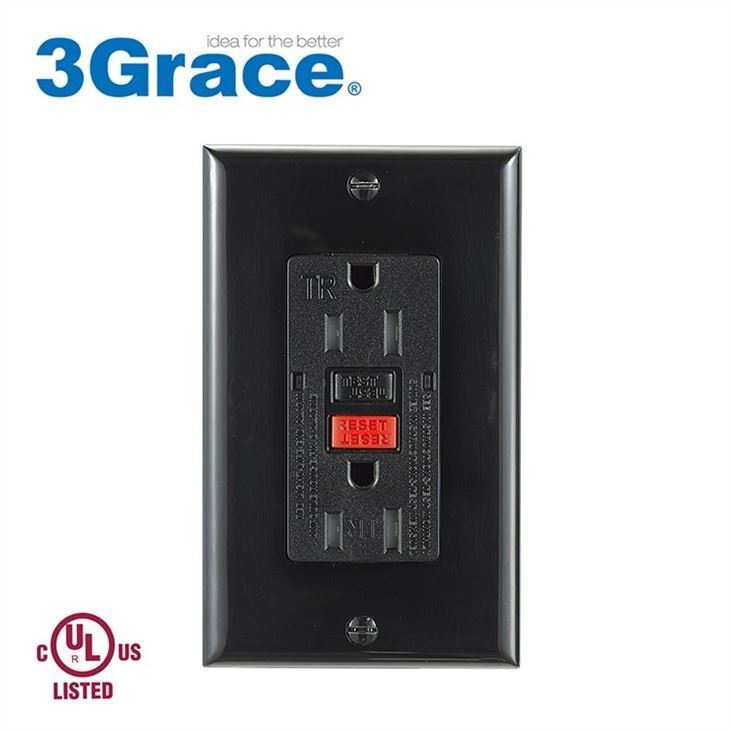

Smart auto test GFCI with Red and green indicator light, easy to install on the wall.

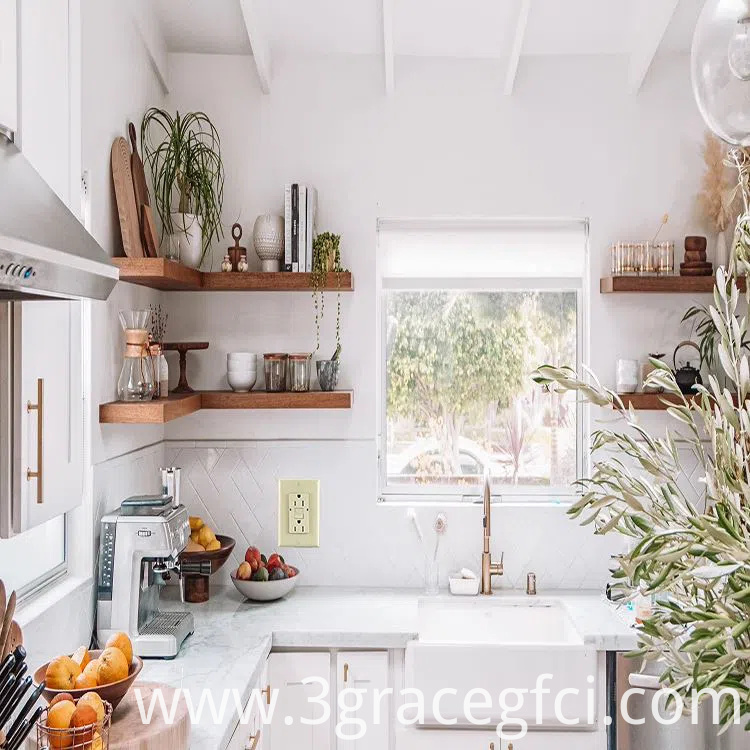

GFCI application: commerial, hosehold, lighting or equipment.
GFCI Specifications:
| GFCI Outlet Standards | UL498 |
| Housing Material flame retardant grades | UL 91-V2 |
| Voltage | 110V |
| Working current | 15Amp |
| Frequency | 60Hz |
| Electric strenghth | Pressure resistance 1500V 50hZ Duration 1 Mins |
| Working temperature | -35℃~66℃ |
| Insulation Resistance | >50MΩ |
