Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Western Union,Money Gram |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST20
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|

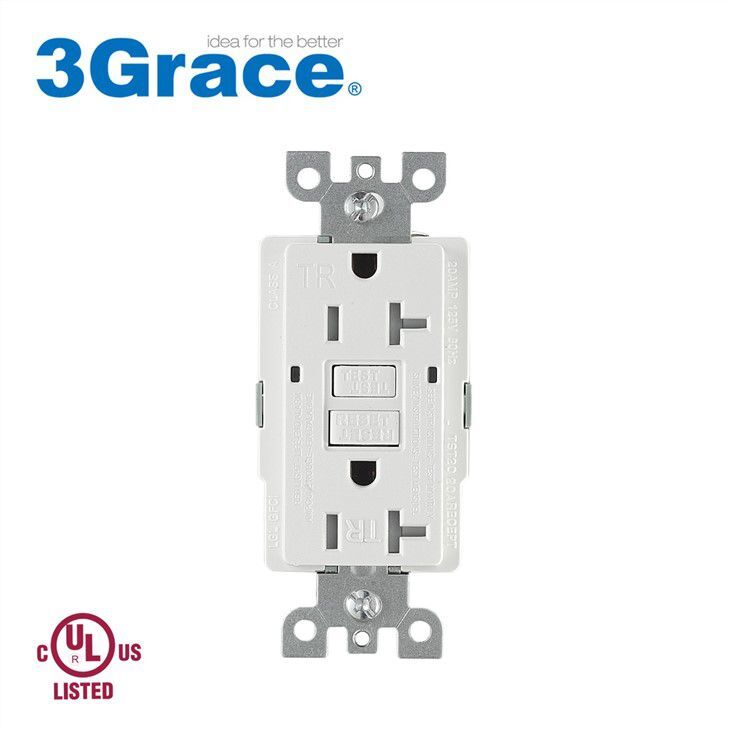

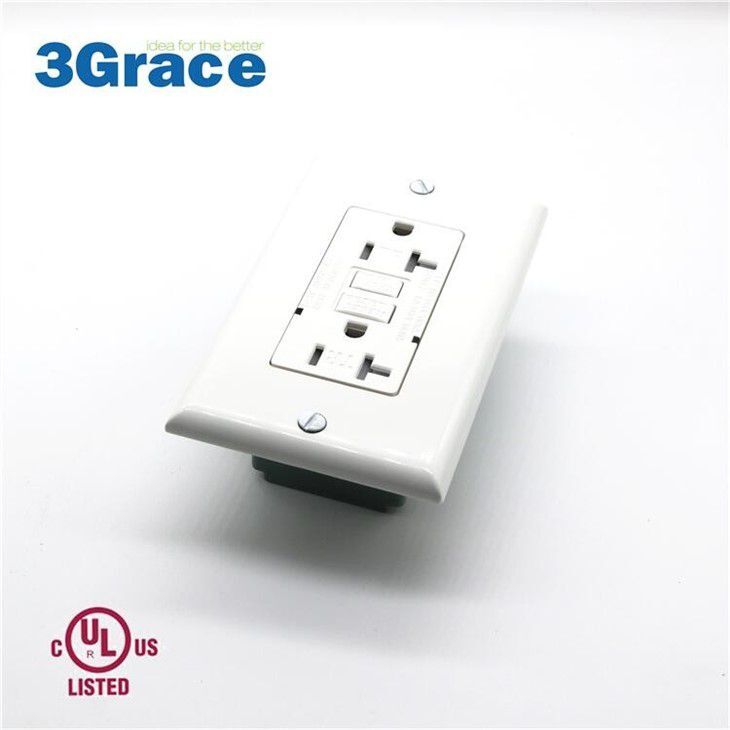

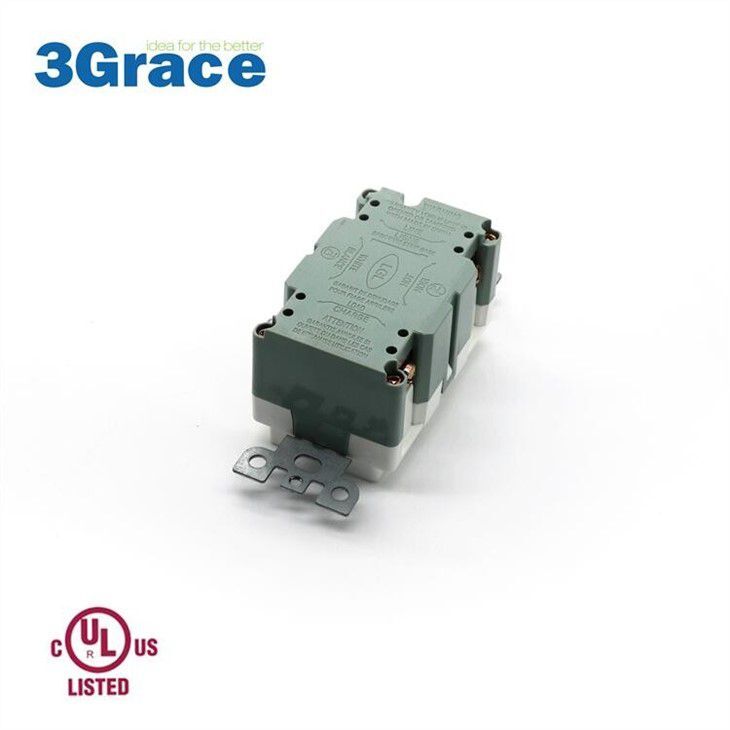

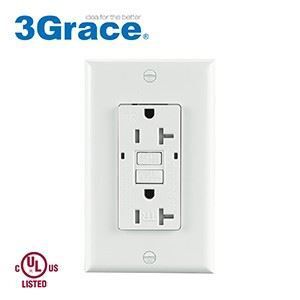

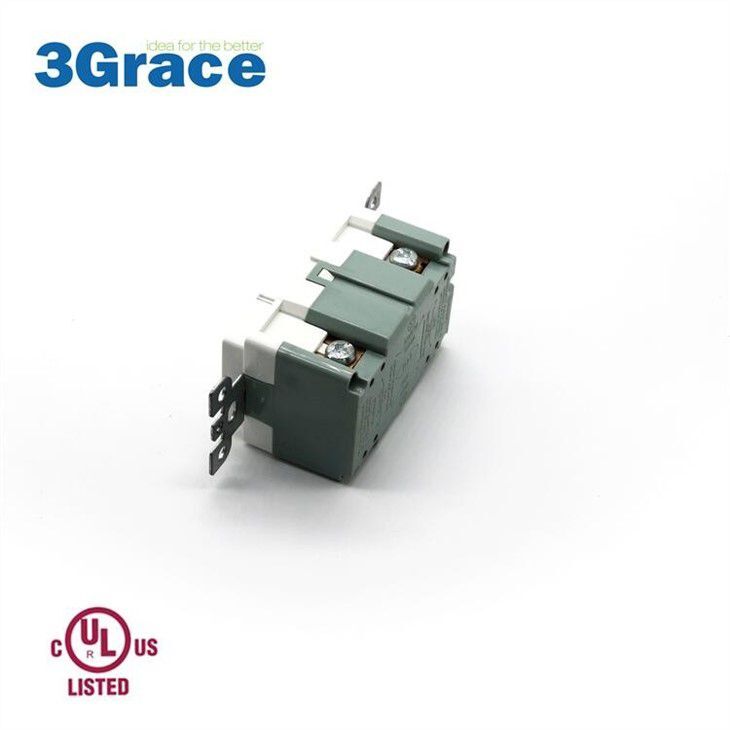

Safety GFCI Switch Outlet Futures
GFCI switch outlet means ground fault circit interrupter which different with traditional socket. It has safety function that it would disconnected the power supply within 1 seconds after detecting a ground fault. This helps prevent electric shock.
Specifications
| Model | TST20 |
| Input Voltage | 125 V |
| Frequency | 60 Hz |
| Color | White |
| Front Receptacle Current | 20Amp |
| Trip Fault Current | 4-6 mA |
| Trip Time | 0.025 Seconds |
| Accepted Terminal Wire Size | 12 gauge to 14 gauge |
| Wiring Type | Rear pressure plate and side wiring |
| Flammability | Rated V-2 per UL 943 |
| Operating Temperature | -35℃ to 66℃ |
| Operating Humidity | 30-93% |
| GFCI Size | 105*44.6*42.6 mm |
| Weight | 123.5 g |
| Certification | UL Listed |
| Warranty | 12 months |
Application
GFCI Application: Bathrooms, Kitchens, Garages, Commercial building and office, Spas , Restaurants and hotel
Packing
