20Amp GFCI Outlet receptacle UL Listed
Get Latest Price$4.20Standard Classification of Plugs:
US
Zhejiang Trimone Technology Co., Ltd
Zhejiang Trimone Technology Co., Ltd
Model No.: WTST20
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Product name: 20Amp GFCI Outlet receptacle
Input Voltage: 120V
Front Receptacle Current: 20A
GFCI size: 105*44.6*42.6 mm
GFCI weight: 123.5
Accepted Terminal Wire Size: 12 AWG to 14 AWG
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
Function: 20Amp GFCI with Self-Test Function
| Selling Units: | Piece/Pieces |
| Single package size: | 8cm*5cm*12cm |
| Single gross weight: | 0.2kg |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
| Quantity（Piece/Pieces） | 1 ~ 500 | 501 ~ 5000 | 5001 ~ 10000 | >10000 |
| Est. Time（days) | 7 | 20 | 30 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.
3Grace produce 20Amp GFCI Outlet receptacle is UL Listed, file no. is E473989. Avaliable white, black, Ivory, Almond, Light-Almond and gray color. If you interested in 3Grace Gfci Outlet please feel free to contact with us.
3Grace GFCI oulet Features:
20A, 125V 60Hz
2 Pole, 3 Wire
Color: White, Black, Ivory are avaliable
Name 5-20R, GFCI with TR, with end of life indicator
With Self-Testing function

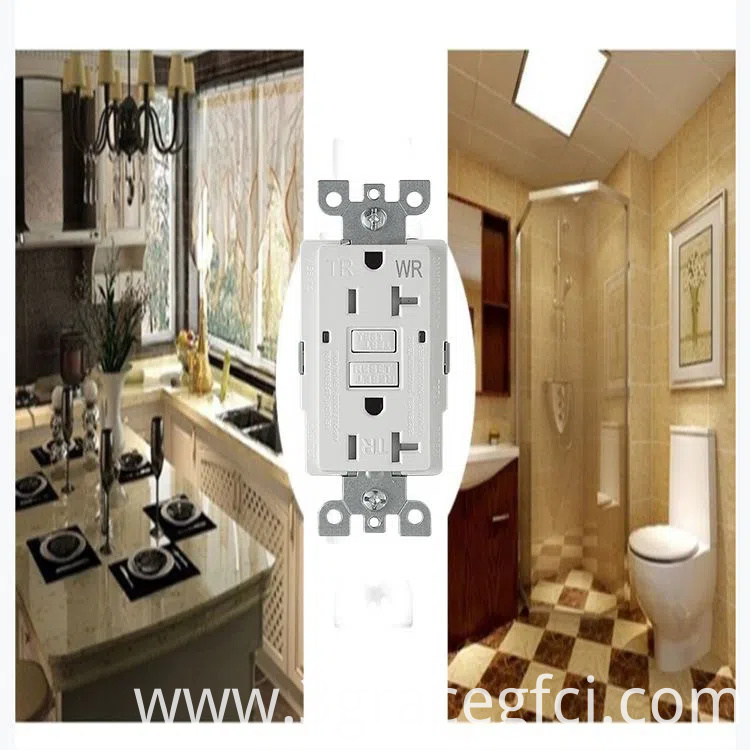

GFCI receptacle application
1. GFCI recetpacle suitable for Kitchens, basements, laundary rooms, wet sink and other wet locations around educational facilities
2. Classrooms, restrooms, laboratories, dormitories and kitchens
3. Public bathrooms, general use and mnaintenance areas
4. Commerical Offices
Installing GFCI oulet Receptacle Cautions
1. To prevent severe shock or electrocution, always trun the power OFF at the service panel before working with wiring.
2. Use this GFCI receptacel with copper or copper-clad wire. Do not use it with aluminum wire.
3. Do not install this GFCI receptacle on a circuit that powers life support equipment because if the GFCI trips it will shut down the equipment.
4. For installation in clamp or wet locations, the GFCI receptacle must be Listed and marked as Weather Resistant(WR).
5. For installation in wet locations, protect the GFCI receptacle with a cover plate or outlet box hood suitable for wet locations that will keep both the receptacle and plug face dry.
6. Must be installed in accordance with national and local electrical codes.
