Model No.: TST15
Brand: 3Grace
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Residential / General-Purpose, Industrial, Hospital
warranty period: 3months-1year
Input Voltage: 120v
Frequency: 60Hz

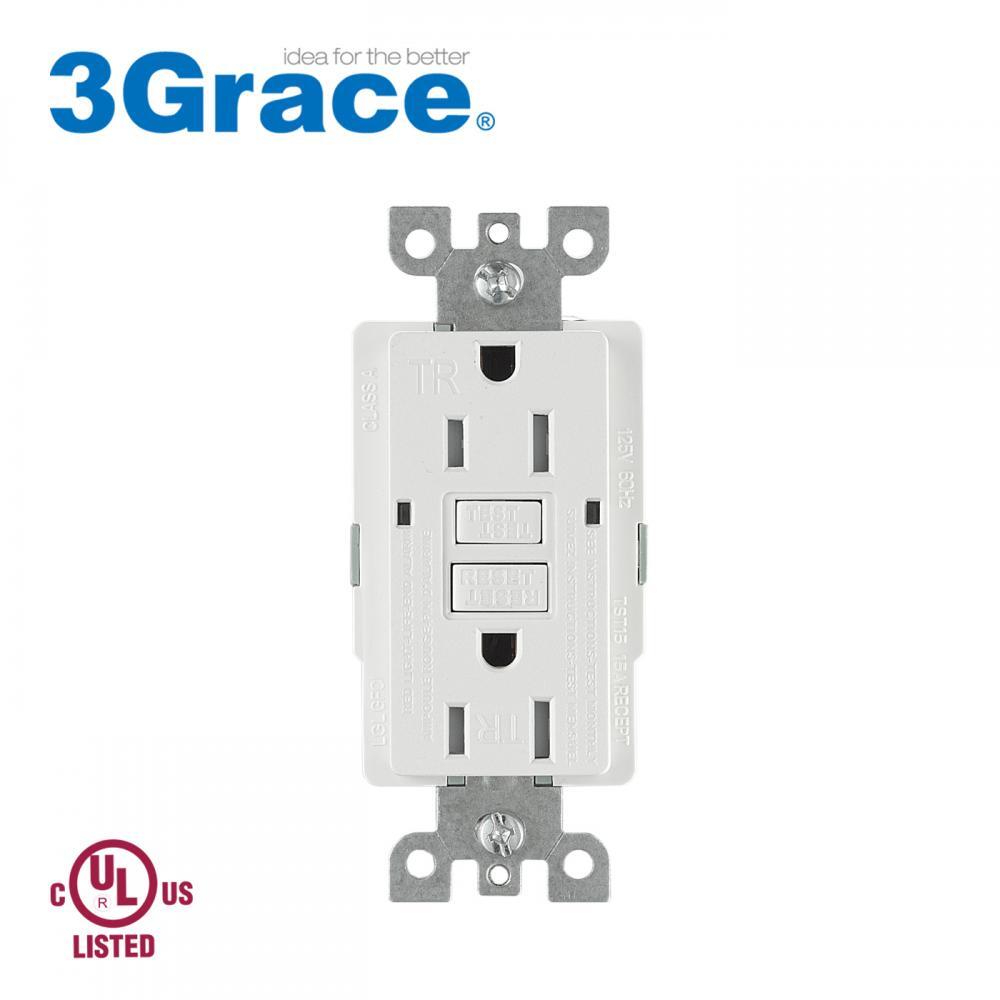

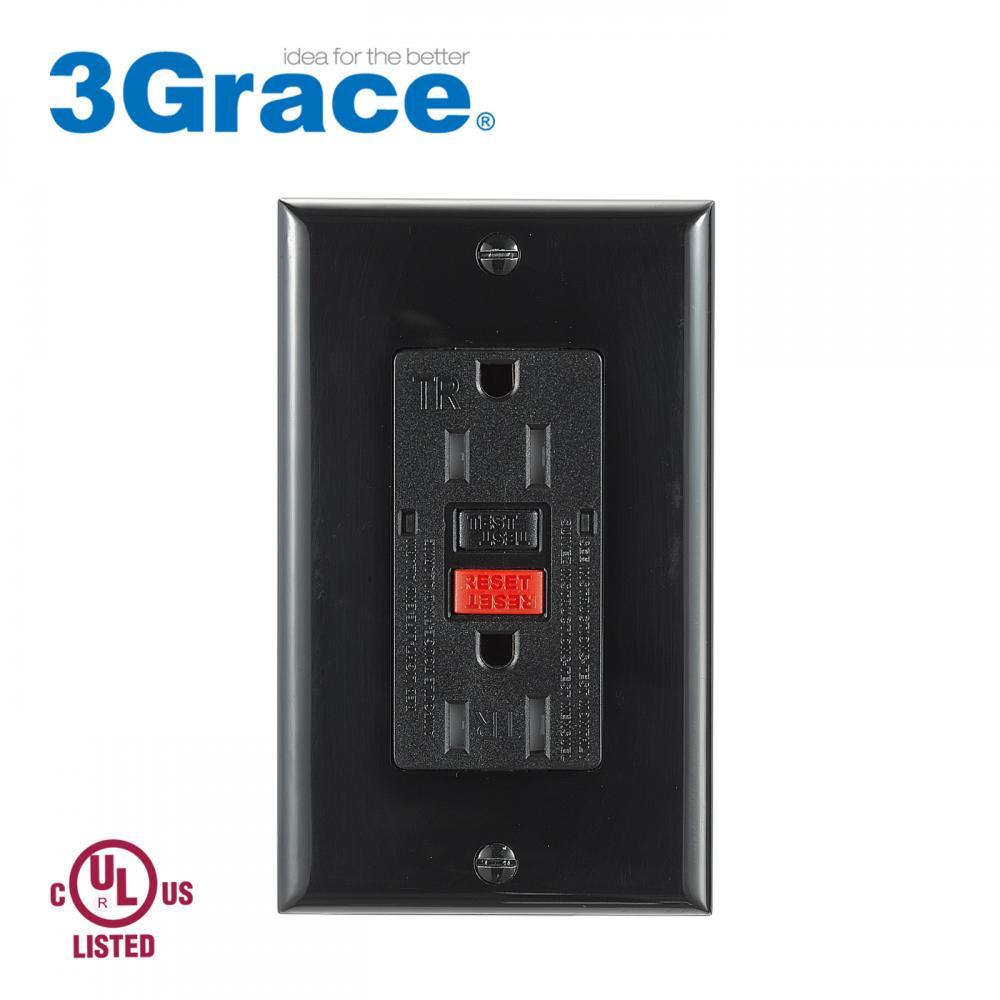

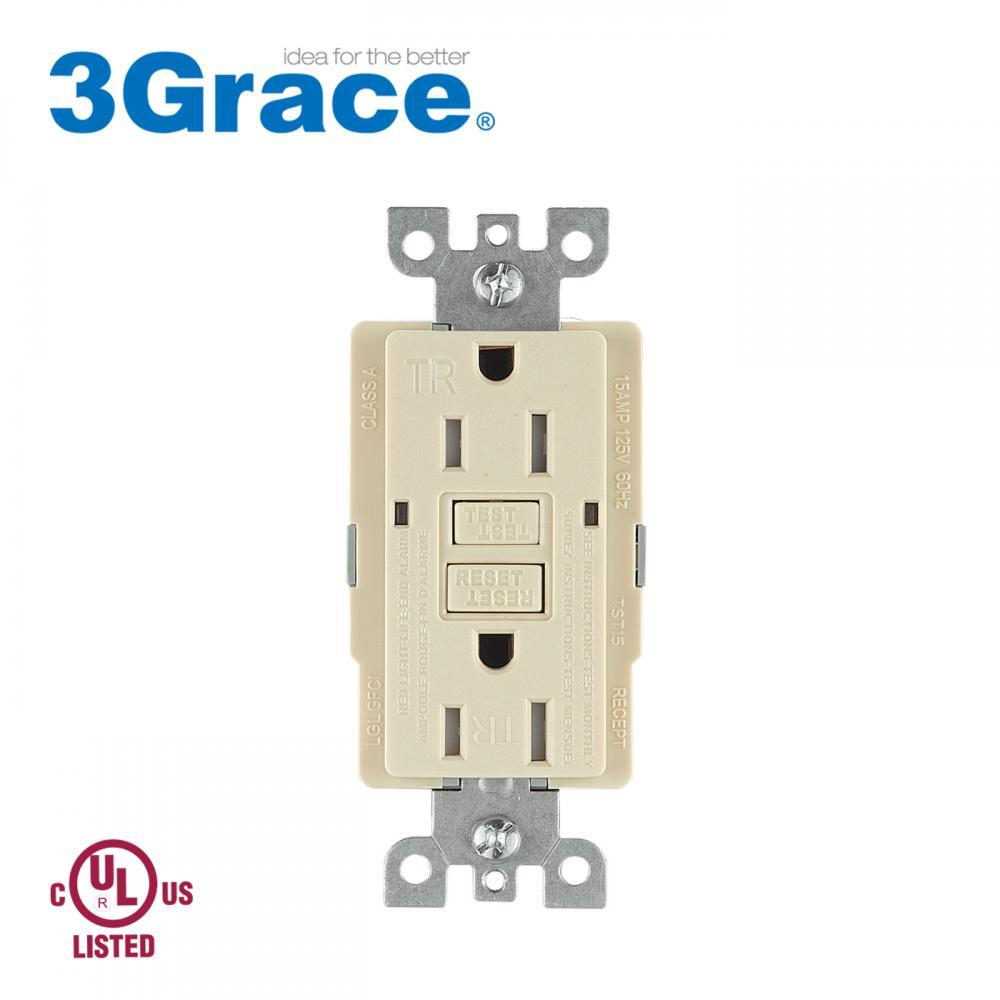

Color: White, Black, Ivory
GFCI weight: 123g
GFCI size: 105*44.6*42.6mm
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
| Parameter | TS15/20 | TST15/20 | WTST15/20 | TST15L/20L |
| Amperage | 15A/20A | 15A/20A | 15A/20A | 15A/20A |
| Voltage | 125V AC | 125V AC | 125V AC | 125V AC |
| UL/CUL Listed | ● | ● | ● | ● |
| NEMA | 5-15R/5-20R | 5-15R/5-20R | 5-15R/5-20R | 5-15R/5-20R |
| Tamper-Resistant | / | ● | ● | ● |
| Weather-Resistant | / | / | ● | / |
| Applicable Standards | UL943 Fifth Edition/UL498/UL1998 | |||
| Trip Level | 4~6mA ≤0.025s | |||
| Grounding | Self-Grounding Cooper Clip Opitional | |||
| Face Material | PC | PC | PC | PC |
| Body Material | PC+Copper | PC+Copper | PC+Copper | PC+Copper |
| Operating Temperature | -35℃ to +66℃ | |||
| Flammability | Rated V-2 per UL943 | |||
| Warranty | 2 Years | |||
| Color | White/Ivory/Almond/Black/Brown or Customized | |||
